Basic Info.
Model NO.
Geonet
Classification
Composite Impervious Geomembrane
Material
PP
Type
Composite Geomembrane
Transport Package
PP Woven Bag
Specification
width: 1m-4m
Trademark
Ankang
Origin
China
HS Code
5602100000
Production Capacity
1000000sqm/Month
Product Description

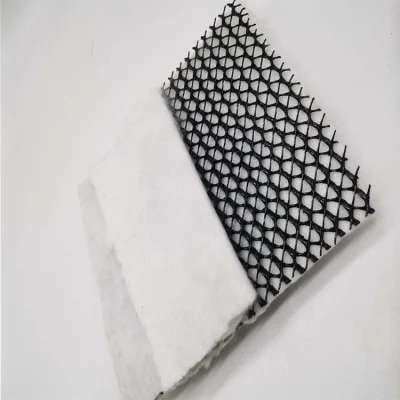

Tri-dimension Composite Geonet for Drainage for landfill road garden
Three dimensional composite drainage network is a new type of geosynthetics. Its structure is a three dimensional geonet core, and there are needle punched non woven geotextiles on both sides. The three dimensional geogrid core consists of a thick vertical rib and an inclined rib at the top and bottom, which can rapidly drain the around water from the road.
It also has a pore maintenance system, which can block capillary water under high load. At the same time, it
can also play the role of isolation and foundation reinforcement.
Good flexibility and permeability
In coastal engineering, use its characteristics of good flexibility and permeability to buffer the impact energy of waves
Strong high pressure load
Can withstand a compression load of about 3000A for a long time
Good performance
Made with three-layer special structure, flexible and durable, strong acid and alkali resistance, not perishable, and long service life
Reduce cold expansion
Laying a three-dimensional composite drainage net can help reduce the impact of frost heave
Uniform mixing
It can hydrate the concrete evenly, whether it is for rigid roads or flexible road systems
Dezhou Ankang Geotechnical material is a high-tech enterprises which focus on Geomembrane, Geotextile, Anti Grass Cloth, PP Jumbo Bulk Bags, new materials research and development, manufacture, sales and after-sales service . Our company was established in 2001, the registered capital is 50 million yuan, with total assets of 120 million, the factory covers an area of 90000 square meters, construction area is 50000 square meters, the employees more than 300.In addition,We have passed ISO9001-2000 International Quality Management System Certification.
As one of the biggest professional Geotechnical material and Geosynthetics manufacturer in China, our company gets the domestic and foreign customers consistent approval with good reputation, excellent product quality and excellent service. Our products have been exported to America, Britain, Italy, Australia, Brazil, Chile, Thailand, Dubai ect. Customers all over the world.
1. In time response
2. OEM available
3. Top quality and competitive price
4. Free sample is available
5. Color and size can be customized
6. High level packing
7. Good after-sale tracking and service
8. Fast delivery
Are you a manufacturer or a trading company?
Our factory has been established for over 16 years ,and has its own trading department. So we have the competitive price with best quality.
How does your factory carry out quality control?
Quality Control is one of our most important link. All of the product will be fully processed and strictly tested before packaging for shipment.
Can I get samples for checking the quality?
We can provide free samples. But you need to pay the freight. After you place the order, we will refund the single freight of the sample.
What's your MOQ?
Our MOQ is usually 2000sqm per color.
What's your delivery time?
It's about 14 days after we received the deposit.
What's your payment terms?
TT (TT 30% as deposit,and 70% balance payment at sight of BL copy)or LC at sight.
Can I visit your factory?
We always welcome you to visit our factory. Transportation is very convenient in China. You can take high-speed rail or plane, and we will pick you up in advance.
Three dimensional composite drainage network is a new type of geosynthetics. Its structure is a three dimensional geonet core, and there are needle punched non woven geotextiles on both sides. The three dimensional geogrid core consists of a thick vertical rib and an inclined rib at the top and bottom, which can rapidly drain the around water from the road.
It also has a pore maintenance system, which can block capillary water under high load. At the same time, it
can also play the role of isolation and foundation reinforcement.
No | Item | Unit | Spec/Standard Value | ||||||
750g/m2 | 1000g/m2 | 1200g/m2 | 1300g/m2 | 1400g/m2 | 1600g/m2 | 1800g/m2 | |||
1 | Unit weight of compond | g/m | ≥750 | ≥1000 | ≥1200 | ≥1300 | ≥1400 | ≥1600 | ≥1800 |
2 | Thickness of compond | mm | ≥5.0 | ≥6.0 | ≥6.0 | ≥7.0 | ≥7.0 | ≥8.0 | ≥9.0 |
3 | Longitudinal tensile strength of compond production | KN/m | ≥16.0 | ||||||
4 | Water diversion ration of compond production | m2/s | ≥1.2×10-4 | ||||||
5 | Peel strength of network core and geotextile | KN/m | ≥0.3 | ||||||
6 | Thickness of network core | mm | ≥4.0 | ≥5.0 | ≥5.0 | ≥6.0 | ≥6.0 | ≥7.0 | ≥8.0 |
7 | Tensile strength of network core | KN/m | ≥8.0 | ≥10.0 | ≥13.0 | ≥14.0 | ≥15.0 | ≥15.0 | ≥15.0 |
8 | Unit weight of geotextile | g/m2 | ≥200 | ||||||
9 | Seepage coefficient of geotextile | cm/s | ≥0.3 | ||||||
10 | Width | m | ≤3 | ||||||
11 | Length of one roll | m | Following your requirements |
Good flexibility and permeability
In coastal engineering, use its characteristics of good flexibility and permeability to buffer the impact energy of waves
Strong high pressure load
Can withstand a compression load of about 3000A for a long time
Good performance
Made with three-layer special structure, flexible and durable, strong acid and alkali resistance, not perishable, and long service life
Reduce cold expansion
Laying a three-dimensional composite drainage net can help reduce the impact of frost heave
Uniform mixing
It can hydrate the concrete evenly, whether it is for rigid roads or flexible road systems
Dezhou Ankang Geotechnical material is a high-tech enterprises which focus on Geomembrane, Geotextile, Anti Grass Cloth, PP Jumbo Bulk Bags, new materials research and development, manufacture, sales and after-sales service . Our company was established in 2001, the registered capital is 50 million yuan, with total assets of 120 million, the factory covers an area of 90000 square meters, construction area is 50000 square meters, the employees more than 300.In addition,We have passed ISO9001-2000 International Quality Management System Certification.
As one of the biggest professional Geotechnical material and Geosynthetics manufacturer in China, our company gets the domestic and foreign customers consistent approval with good reputation, excellent product quality and excellent service. Our products have been exported to America, Britain, Italy, Australia, Brazil, Chile, Thailand, Dubai ect. Customers all over the world.
1. In time response
2. OEM available
3. Top quality and competitive price
4. Free sample is available
5. Color and size can be customized
6. High level packing
7. Good after-sale tracking and service
8. Fast delivery
Are you a manufacturer or a trading company?
Our factory has been established for over 16 years ,and has its own trading department. So we have the competitive price with best quality.
How does your factory carry out quality control?
Quality Control is one of our most important link. All of the product will be fully processed and strictly tested before packaging for shipment.
Can I get samples for checking the quality?
We can provide free samples. But you need to pay the freight. After you place the order, we will refund the single freight of the sample.
What's your MOQ?
Our MOQ is usually 2000sqm per color.
What's your delivery time?
It's about 14 days after we received the deposit.
What's your payment terms?
TT (TT 30% as deposit,and 70% balance payment at sight of BL copy)or LC at sight.
Can I visit your factory?
We always welcome you to visit our factory. Transportation is very convenient in China. You can take high-speed rail or plane, and we will pick you up in advance.
