Basic Info.
Model NO.
TGSG-
Width
1-5.95 M
Length
50-75 M
Transport Package
Straps for Rolls Tightening
Specification
15x15-50x50KN as customized
Trademark
ECL
Origin
China
HS Code
3926
Production Capacity
3000000
Product Description
| Biaxial Polypropylene GeoGrid / Biaxial PP Geogrid |
Product Introduction
ECL Biaxial PP Geogrid is an integrally formed structure, which especially designed for soil stabilization and reinforcement
applications. ECL Biaxial Geogrid is manufactured from Polypropylene, from the process of extruding, punching,longitudinal stretching and transverse stretching.
ECL Biaxial Geogrid features high tensile strength at both longitudinal and transverse directions. It makes soil reinforced
with its excellent struture stability and strong mechanical interlock performance.
Performance
- High tensile strength at both longitudinal and transverse direction
Benefits
- Improving bearing capacity of foundation
- Preventing cracking and subsiding
- Convenient to construct, reducing cost and maintaining expense

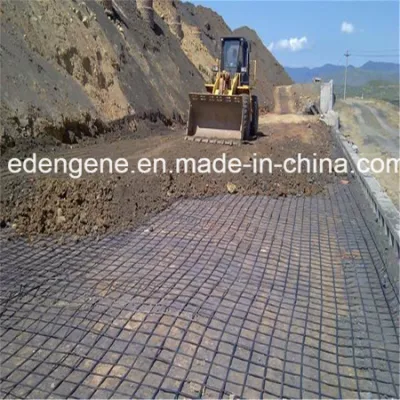

Applications
Technical parameters
Technical parameters
| Items | TGSG15-15 | TGSG20-20 | TGSG30-30 | TGSG40-40 | TGSG45-45 | |
| Mass area ratio. g/m2 | 300±30 | 330±30 | 400±40 | 500±50 | 550±50 | |
| Roll width m | 3.95 or 5.95 | |||||
| Roll Length m | 50 | |||||
| Polymer Materials | Polypropylene | |||||
| Minimum Carbon black % | 2 | |||||
| Aperture Size , mm +/- 20% | 36x36 | 34x34 | 34x34 | 32x32 | 32x32 | |
| Ultimate Tensile Strength, MDxCD KN/M ≥ | 15x15 | 20x20 | 30x30 | 40x40 | 45x45 | |
| Strain at Ultimate Strength MD&CD % ≤ | 13 | |||||
| Tensile Strength at 2% Strain KN/M MD&CD ≥ | 5 | 7 | 10.5 | 14 | 15 | |
| Tensile Strength at 5% Strain KN/M MD&CD ≥ | 10 | 14 | 21 | 28 | 31 | |
