Basic Info.
Model NO.
geogrid
Classification
Fiberglass Geogrid
Material
Fiberglass
Size
50X50kn/M
Raw Material
Glass Fiber
Certificate
CE/ISO9001/BV
Width
3.6m
Length
50m
Performance
High Tensile Strength Longitudinal and Transverse
Market
Europe, Africa, Asia, Middle East etc.
Samples
Free Samples
Transport Package
Black PE Film or Woven Bags for Outside Packag
Specification
12.7*12.7 / 25.4*25.4 /40*40
Trademark
zhongloo
Origin
China
HS Code
70191900
Production Capacity
50000m2/Day
Product Description
Factory Low Price High Tensile Basalt Fiber Mesh Geo Grid Fiberglass Geogrid Coated Bitumen 100-100kn/M for Sale

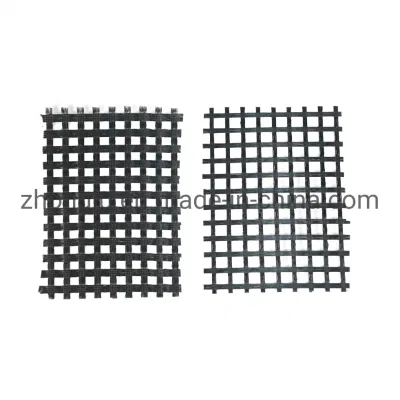

Introduction:Glass Fiber Geogrid is composed of a reticular structural material made of glass fiber filament with modified bitumen coating. It withstands high and low temperatures and can resist corrosion. FiberGlass geogrid is a stress relief asphalt reinforcement grid developed specifically for ashpalt overlays. Fiber Glass geogrid can not only decrease the cost of construction but also longer the service life of the pavement and road.
Glass Fiber Geogrid in a pavement system can distribute traffic loading of vehicle and prevent reflective cracking due to temperature difference to extend service life of pavement.
![Factory Low Price High Tensile Basalt Fiber Mesh Geo Grid Fiberglass Geogrid Coated Bitumen 100-100kn/M for Sale](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00aRhkSUfIuGoW/Factory-Low-Price-High-Tensile-Basalt-Fiber-Mesh-Geo-Grid-Fiberglass-Geogrid-Coated-Bitumen-100-100kn-M-for-Sale.webp)
Features:
The product has the characteristics of high strength, low elongation, high temperature resistance, high modulus, light weight, good toughness, corrosion resistance, long life and so on. In engineering fields such as slope protection, road and bridge pavement enhancement treatment, it can strengthen and reinforce the pavement, prevent pavement rutting fatigue cracks, hot-cold expansion cracks and reflection cracks below, and can disperse the bearing stress of the pavement, prolong the service life of the pavement, high Low tensile strength, low elongation, no long-term creep, good physical and chemical stability, good thermal stability, anti-fatigue cracking, high temperature rutting resistance, low temperature shrinkage crack resistance, delay and reduce reflection cracks.
![Factory Low Price High Tensile Basalt Fiber Mesh Geo Grid Fiberglass Geogrid Coated Bitumen 100-100kn/M for Sale](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00aUibsIRcvGkl/Factory-Low-Price-High-Tensile-Basalt-Fiber-Mesh-Geo-Grid-Fiberglass-Geogrid-Coated-Bitumen-100-100kn-M-for-Sale.webp)
Data Sheet
SPECIFICATION | EGA3030 | EGA5050 | EGA8080 | EGA100100 | EGA120120 | EGA150150 | EGA200200 | |
Ultimate Strength (KN/M) | MD | ≥30 | ≥50 | ≥80 | ≥100 | ≥120 | ≥150 | ≥200 |
CMD | ≥30 | ≥50 | ≥80 | ≥100 | ≥120 | ≥150 | ≥200 | |
elongation(%) | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | |
Grid Size, mm | 12.5-40.00 | |||||||
Width | 6 Meter Maximum |
Application:
1. The old asphalt concrete pavement is reinforced to strengthen the asphalt surface layer to prevent diseases.
2. The cement concrete pavement is converted into a composite pavement to suppress reflection cracks caused by plate shrinkage.
3. Road extension and improvement project to prevent cracks caused by the junction of new and old and uneven settlement.
4. Reinforcement treatment of soft soil foundation is conducive to the consolidation of soft soil water separation, effectively inhibits settlement, uniform stress distribution, and enhances the overall strength of the roadbed.
5. The semi-rigid base of the newly built road produces shrinkage cracks, and the reinforcement is reinforced to prevent the pavement cracks caused by the reflection of the base cracks.
![Factory Low Price High Tensile Basalt Fiber Mesh Geo Grid Fiberglass Geogrid Coated Bitumen 100-100kn/M for Sale](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00TUVoKqRgqGcl/Factory-Low-Price-High-Tensile-Basalt-Fiber-Mesh-Geo-Grid-Fiberglass-Geogrid-Coated-Bitumen-100-100kn-M-for-Sale.webp)
![Factory Low Price High Tensile Basalt Fiber Mesh Geo Grid Fiberglass Geogrid Coated Bitumen 100-100kn/M for Sale](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00EGVksKYJhRbl/Factory-Low-Price-High-Tensile-Basalt-Fiber-Mesh-Geo-Grid-Fiberglass-Geogrid-Coated-Bitumen-100-100kn-M-for-Sale.webp)
![Factory Low Price High Tensile Basalt Fiber Mesh Geo Grid Fiberglass Geogrid Coated Bitumen 100-100kn/M for Sale](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00tfhkKdRlYGqi/Factory-Low-Price-High-Tensile-Basalt-Fiber-Mesh-Geo-Grid-Fiberglass-Geogrid-Coated-Bitumen-100-100kn-M-for-Sale.webp)
![Factory Low Price High Tensile Basalt Fiber Mesh Geo Grid Fiberglass Geogrid Coated Bitumen 100-100kn/M for Sale](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00YflksRUCvGbW/Factory-Low-Price-High-Tensile-Basalt-Fiber-Mesh-Geo-Grid-Fiberglass-Geogrid-Coated-Bitumen-100-100kn-M-for-Sale.webp)
Company Information
![Factory Low Price High Tensile Basalt Fiber Mesh Geo Grid Fiberglass Geogrid Coated Bitumen 100-100kn/M for Sale](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00YFdVLGyMEUbW/Factory-Low-Price-High-Tensile-Basalt-Fiber-Mesh-Geo-Grid-Fiberglass-Geogrid-Coated-Bitumen-100-100kn-M-for-Sale.webp)
Anhui Zhonglu Engineering Materials Co., Ltd., located in the Taohua Industrial Park, Economic Development District in Hefei, Anhui Province,with a registered capital of 52 million yuan, and our annual production of various types of geosynthetics is 60 million square meters. We are a production, research and development, sales for the integration of high-tech enterprises,that included geotextile, geomembrane, composite geomembrane, geogrid, geocell, warp knitted composite material, geonet, waterproof board, drain board and other new geosynthetics . We follow the principle of " taking science and technology innovation as the driving force, to customer satisfaction as the goal" and dedicate to transportation construction,water conservancy,environmental protection and landscape garden ,municipal large engineering related products research and development,production technology and applications.Our target is to become the best new geosynthetics quality production supplier in the world.
![Factory Low Price High Tensile Basalt Fiber Mesh Geo Grid Fiberglass Geogrid Coated Bitumen 100-100kn/M for Sale](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00YfWkZLRIqUqh/Factory-Low-Price-High-Tensile-Basalt-Fiber-Mesh-Geo-Grid-Fiberglass-Geogrid-Coated-Bitumen-100-100kn-M-for-Sale.webp)
FAQ
Q : Are you a factory or trading company?
A : We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane etc with ISO9001 certificate more than 15 years.
Q: What is your MOQ?
A: As customers' requests.
Q: why choose us?
A: We are a professional manufacturer with competitive price, good quality and fast delivery time.
Q: How to buy the product?
A: Send email to me, we will reply to you within one day.
Q: Can you make special Design and logo on product?
A: Yes, very easy.
