Product Description

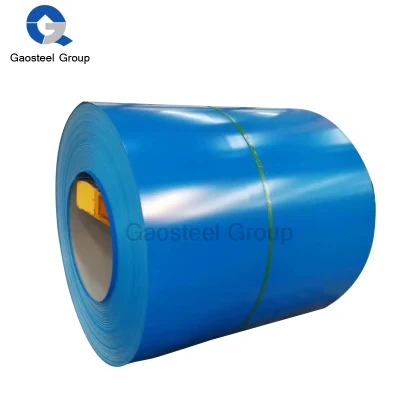

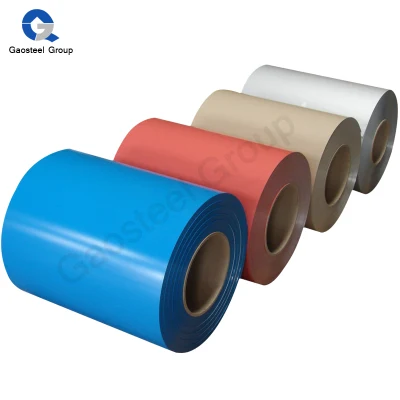

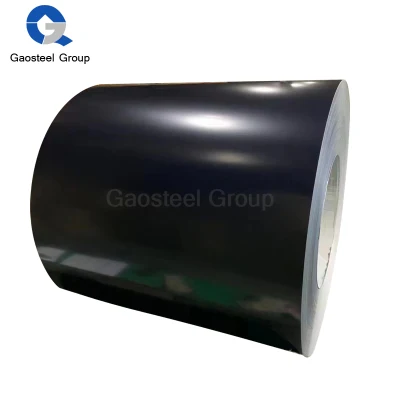

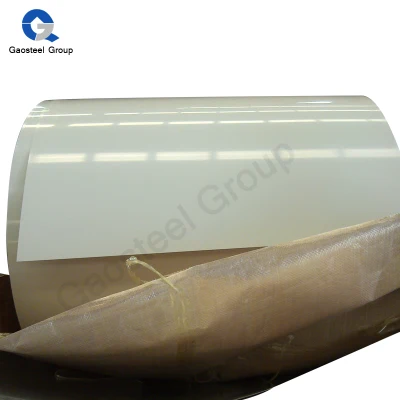

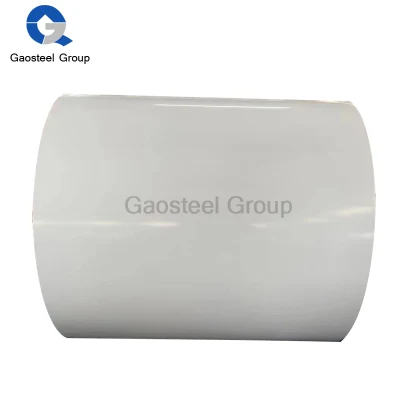

26 28 Gauge Gi Prepainted Galvanized Galvalume Coil Sheet Dx51d Dx52D Dx53D Zinc Coated PPGL PPGI Ral Color Coated Steel Sheet Coil for Industrial Roofing
Color coated steel coil is a product made of cold-rolled steel coil and (aluminum) galvanized steel coil after surface chemicaltreatment, coating (roll coating) or composite organic film (PVC film, etc.), and then baking and curing. It not only has the properties of high mechanical strength and easy forming of steel materials, but also has good decoration and corrosion resistance of coating materials.
Color coated steel coil is mainly divided into three parts: construction, household appliances and transportation.
Building is generally used to build the roof, wall and door of industrial and commercial buildings such as steel structure workshop, airport, warehouse and freezer.
Household appliances are used in the production of refrigerators and large air conditioning systems, freezers, toasters, furniture, etc.
Transportation industry is mainly used for oil pan, automobile interior parts, etc.
| Name | PPGI steel coil | |
| Type of substrate | Hot dip galvanized, Galvalume, Electro galvanized,Zinc alloy, Cold rolled steel, Aluminum | |
| Thickness | 0.125-2mm | |
| Tolerance | Thickness: ± 0.01mm | |
| Width | 600-1250mm ( Normal:1250, 1200,1000,914 mm) | |
| Top Paint | 10-25 micron(Normal:10-12mic) | |
| Back paint | 5-12 micron(Normal:5-7mic) | |
| Coating | Zn coating | AZ coating |
| 30-400gsm | 30-400gsm | |
| Coil weight | 3-5 tons or as your requirement. | |
| Coil ID | 508/610 mm | |
| Grade | Galvanized | Galvalume |
| SGCC/DX51D+Z, DX52D+Z, SGCD/DX53D+Z,SGCE/DX54D+Z, SGCH....... | DX51D+AZ, DX52D+AZ, DX53D+AZ, DX54D+AZ,SGLCC,SGLCD,SGLC4 40,SGLHC........ | |
| Coating type | Top paint: PE, SMP, HDP, PVDF, PU | |
| Functions: Decorative, Machinability, Weather resistance, Scrath resistance, Stain resistance, Chemical resistance, Adhesion resistance | ||
| Primer paint: Polyurethane, Epoxy, PE | ||
| Functions:Machinability, Corrosive resistance, Adhesion, Scrath resistance | ||
| Back paint: Epoxy, Modified polyester | ||
| Functions: Scrath resistance, Bending adhesion, Corrosive resistance | ||
| Type of coating process | Front: Doulbe coated & double drying | |
| Back: Double coated & double drying, single coated & double drying | ||
| Double coated & double drying is used for corrugated sheet | ||
| Double coated & single drying is for sandwich panel | ||
| Packing | Standard export package .Plastic film in the first layer,second layer is Kraft paper. Third layer is galvanized sheet. | |
| Application | Building industry ,structural use, roofing, commercial use ,household appliance, industry facilities, office buildings | |
*Primer coat to prevent undercutting of paint and enhance corrosion resistance.
*Pretreatment layer applied for good adhesion and to enhance corrosion resistance.
*Base steel sheet.
| Packing | Standard export package or customized.Standard export packing, 4 eye bands and 4 circumferential bands in steel, galvanized metal fluted rings on inner and outer edges, galvanized metal and waterproof paper wall protection disk, galvanized metal and waterproof paper around circumference and bore protection. |
| 20 feet container contains dimension | Width under 2300mm, length under 6000mm |
| 40 feet container contains dimension | Width under 2300mm, length under 12000mm |
| By bulk vessel | Freight charge is low by bulk cargo, and large heavy sizes can not be loaded into containers can shipping by bulk cargo |
1.High quality products, durable, strict inspection.
2.We offer quality, strong and rugged products.
3.Advanced technology, to provide customers with customized products.
4.High quality + ex-factory price + rapid response + reliable service, we strive to provide.
5.Professional workers and efficient foreign trade team, to provide services for you.
1.Will you deliver the goods on time?
Yes,we promise to provide best quality products and delivery in time no matter if the price change lot or not, Honesty is our company's tenet.
2.How can I get your quotation as soon as possible?
The email and fax will be checked in 24 hours, meanwhile, the skype will be online in 24 hours Please tell us the order information about quantity, Specification(steel type, material, size )and destination port, you will get the latest price.
3.How about the sample if i need?
The sample will be offered for free if you need, but the freight will be covered by our customer. If we have cooperation, the freight will be covered by our company.
4.How about the MOQ?
Generally, the trail order will be accepted.The MOQ can be confirmed according to the different products. For example, the MOQ of PPGI will be 5MT.
5.How about the delivery time?
Within 15-30days after receiving the deposit or L/C at sight. Of course, the detail will be confirmed by the quantity and the different products.
6.How to order?
Please send us your purchase order by email. Or you can ask us to send you a proforma invoice for your order. We need to know the following information for your order.
7.What is shipment terms?
1. Container ship 2. bulk ship 3. Train
8.Do you have English Mill Test Certificates?
Yes,that is what we give gurantee to our clients
9.Do you accept the third party inspection?
Yes,absolutely we accept.
