Geogrid Fabric for Soil Reinforcement

Looking for high-quality geogrid fabric for soil reinforcement? Look no further! Our factory produces durable and reliable geogrid fabric for all your soil reinforcement needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Application
  • Company Profile
  • Customer Feedback
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
Fiberglass Geogrid
Application
Retaining Wall, Steep Slop, Dam, Road Base
Viscose
Without Viscose
Function
Anti-slip, Reinforcement
Classification
Polyester Geogrid
Material
Polyester
Length
50m-100m
Width
1m-6m
Certificate
CE/ISO9001/ISO14001
Tensile Strength
15kn/M--50kn/M
Elongation at Break
13% Max
MOQ
1000 Square Meter
Sample
Freely
Model Number
25kn/M--300kn/M
Mesh Size (mm)
12.7*12.7mm. 25.4*25.4mm
Package
PP Woven Bags
Coating
Bitumen,PVC
Usage
Road Construction
Breaking Elongation
4%
Advantage
High Strength /Long Life Service
Transport Package
PP Plastic Geogrid Is Usually Packed by PP Woven B
Specification
5.8m*100m
Trademark
Jinruixiang
Origin
Shandong
HS Code
3926909090
Production Capacity
50000 Square Maters/ Day

Product Description

Geogrid Fabric for Soil Reinforcement
Product Description



  Fiberglass Geogrid  is a kind of new favorable earthwork base material to strengthen the road surface and roadbed. This product is made by weaving
and covering fiberglass filament. It is featured by high vertical and horizontal tensile strength, low unit extension, high  flexibility, and favorable high and low temperature resistance. The products after surface covering own the favorable property of  alkali resistance and aging resistance.

Property Test method TGSB 30-30 TGSB 40-40 TGSB 50-50 TGSB 60-60 TGSB 70-70 TGSB 80-80 TGSB 90-90 TGSB 100-100 TGSB 120-120 TGSB 130-130
Ultimate tensile strength KN/m MD EN ISO 10139 30 40 50 60 70 80 90 100 120 130
CD 30 40 50 60 70 80 90 100 120 130
Elongation at maximum load % MD 3 3 3 3 3 3 3 3 3 3
CD 3 3 3 3 3 3 3 3 3 3
Approximate mesh size mm   12-50
Roll width m     1-6
Roll length m     50-200

Feature:
Increase the bearing capacity of the roadbed and foundation and prolong their service life.
Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.
Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense.
Prevent culverts from flawing.
Enhance earth slope and prevent water loss and soil erosion.
Decrease underlayer thickness and save manufacturing cost.
nhance the stability of side slope turf net patch to improve greening.
Replace wire netting used in mine as intermediate ceiling netting.
Product Application
Geogrid Fabric for Soil Reinforcement Geogrid Fabric for Soil Reinforcement

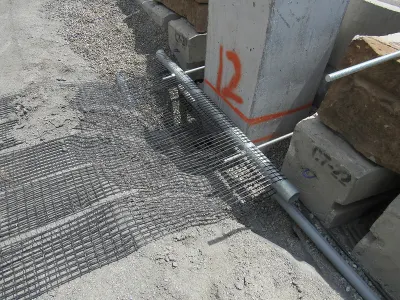

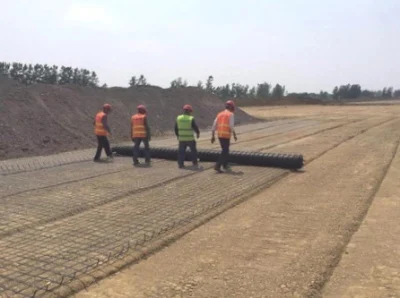

Reinforced soil retaining wall, steep slope and the reinforcement and consolidation of the soft ground.

Ground treatment, reinforcement of the bridge abutment, reinforcement of the enbankment, reinforcement of the
pile-net roadbed
Geogrid Fabric for Soil Reinforcement Geogrid Fabric for Soil Reinforcement

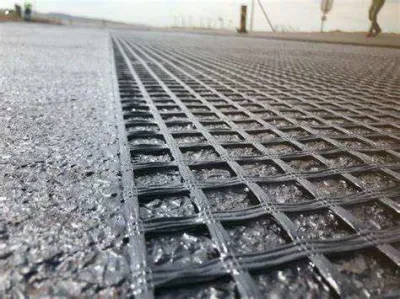

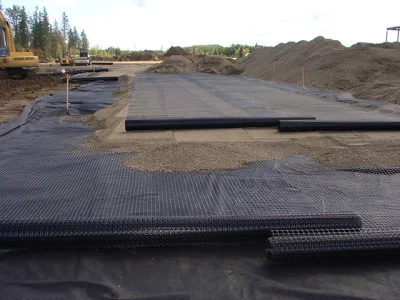

Protection of port, approach lane, seabeach, channel, river channel, dam and other irrigation projects.
Land reclamation, prevention and controlling of the desertification, and the composite protective structure in the landfill sites of urban garbage and waste.
Geogrid Fabric for Soil Reinforcement Geogrid Fabric for Soil Reinforcement

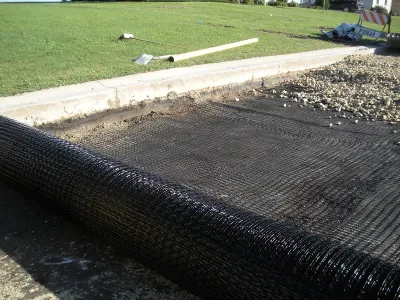

Coal mines, side slope protection of opencast mines, slope protection for the dumping site of the opencast mines,reinforcement to counter dam in the large tailing ponds of the metallurgical mines.
Construction of stuffing and package system of heavy soil engineering.
Company Profile

Geogrid Fabric for Soil Reinforcement

Customer Feedback

Geogrid Fabric for Soil Reinforcement

Packaging & Shipping

Geogrid Fabric for Soil Reinforcement

FAQ

Q : Are you a factory or trading company?
A : We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane etc with ISO9001.
certificate more than 15 years.
Q : Where is your factory located? How can I visit there?
A : Our facoty is located is No.10 Yuanshan Road High-tech Development Zone, Laiwu District, Jinan City China. You can take the
plan to Jinan Yaoqiang International Airport, then we can pick you up.
Q : Could you send the sample before order confirmation?
A : Yes, we'd love to send a free sample to you for an evaluation if you need.
Q : How about the delivery time?
A : General within 3-7 days after received the deposit.
Q : Can you produce the product according to customers' requirements?
A : Sure, we are professional manufacturer, OEM and ODM are both welcome.
