Basic Info.
Model NO.
TGGS
Feature
Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant
Material
HDPE
Thickness(Textured)
1.1-1.7mm
Welding Distance
330mm-1000mm
Keyword
Soil Stabilization Geocell Grid
Height
50mm~250mm
Surface
Textured Smooth
Transport Package
Container
Specification
Cell depth: 50mm, 100mm, 150mm, 200mm, 250mm
Trademark
zhongloo
Origin
China
HS Code
3920109090
Production Capacity
10000m2/Day
Product Description

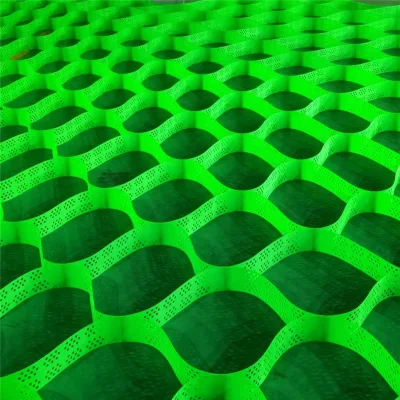

Slope Protection HDPE Cellular Geocell
![HDPE Geocell Supplier](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00SykiYRfKZWql/HDPE-Geocell-Supplier.webp)
HDPE plastic honeycomb hdpe geocell gravel grid basic details:
1.Cell depth: 50mm ,100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm ~ 1600mm
3. Thickness:
(1)1.0mm~1.2mm for smooth geocell
(2) 1.5mm~1.7mm for textured geocell
![HDPE Geocell Supplier](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00SOoifHGWChbl/HDPE-Geocell-Supplier.webp)
![HDPE Geocell Supplier](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00SnohGbfcAlqW/HDPE-Geocell-Supplier.webp)

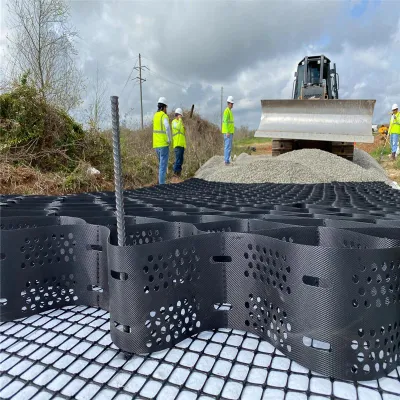

HDPE plastic honeycomb hdpe geocell gravel grid Introduction:
Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the transport and installation on construction site . The geocell nets will be filled with soils , granular, cements or other on-site infill materials when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides .
![HDPE Geocell Supplier](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00jFqVfSGRZhkl/HDPE-Geocell-Supplier.webp)
HDPE plastic honeycomb hdpe geocell gravel grid Features:
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance .
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together .
![HDPE Geocell Supplier](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00KnbVfmGJShki/HDPE-Geocell-Supplier.webp)
Technical Parameters:
Material Properties | Unit | Test Method | |||||
Cell Depth | mm | 75 | 100 | 150 | 200 | ||
Polymer Density | g/cm3 | 0.935-0.965 | ASTM D 1505 | ||||
Environmental Stress Crack Resistance | Hours | >400 | ASTM D 5397 | ||||
Environmental Stress Crack Resistance | Hours | 6000 | ASTM D 1693 | ||||
Carbon Black Content | % | 1.5% - 2.0% | ASTM D 1603 | ||||
Nominal Sheet Thickness Before Texturing | mm | 1.27 -5%,+10% | ASTM D 5199 | ||||
Nominal Sheet Thickness After Texturing | mm | 1.52-5%,+10% | ASTM D 5199 | ||||
Strip Puncture Resistance | N | 450 | ASTM D 4833 | ||||
Seam Peel Strength | N | 1065 | 1420 | 2130 | 2840 | EN ISO13426-1B | |
Seam Efficiency | % | 100 | GRI-GS13 | ||||
Nominal Expanded Cell Size (width x length) | mm | 320x287,475x508 etc | |||||
Nominal Expanded Panel Size (width x length) | m | 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44 |

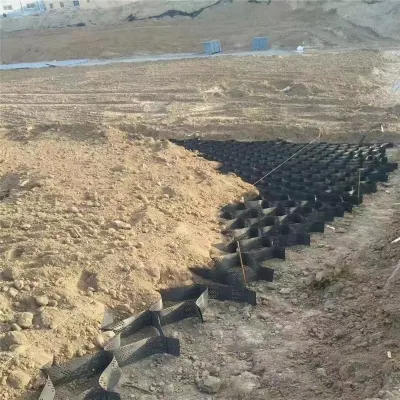

Applications:Plastic geocell grid gravel for road
1. Used for all kinds of road building , driveways , soil stabilization and embankment stabilization
2. Used to stabilize river embankments .
3. Used to prevent landslides .
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed , good performance and greatly reduce the project cost .
![HDPE Geocell Supplier](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00yNbiRUfcCWoV/HDPE-Geocell-Supplier.webp)
![HDPE Geocell Supplier](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00yNqifHUZElkV/HDPE-Geocell-Supplier.webp)
Our Service
-- Custom acceptable, OEM acceptable
-- Quick response, fast delivery, short production time, professional assistanceby sales.
-- Warranty period: 10 years after shipment.
Our factory provides you with more customizable services Services include: For more information, you are welcome to contact our customer service and serve you wholeheartedly.
![HDPE Geocell Supplier](http://img6.grofrom.com/www.taiesteelgroup.com/226f3j00NFchUoGqEVki/HDPE-Geocell-Supplier.webp)
Q:Can you send samples?
A:Yes, we are very happy to provide you with free samples to check the quality of our products.
Q:Are you a manufacturer or a trading company?
A:Our company located in Hefei,Anhui Province,with are gistered capital of 52 milion yuan. It is a professional manufacturer of geomembrane, geotextile, geogrid and other products. So we have the competitive price with best quality.
Q: Can you produce the product according to customers' requirements?
A: Sure,we are professional manufacturer,OEM and ODM are both welcome.
Q:How long is the delivery time?
A: General within 3-7days after received the deposit.
Q: How to control product quality?
A: Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
