Basic Info.
Model NO.
PET-50/50C
Coating
Polymeric Bitumen
Mesh Size
40 X 40 mm
Transport Package
in Roll
Specification
PET-50/50C
Trademark
ECL
Origin
China
HS Code
5603
Production Capacity
5000000m2/Year
Product Description
Introduction

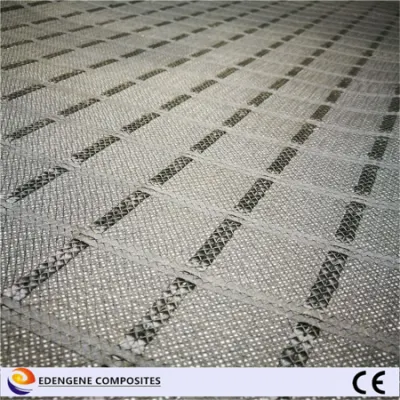

ECL PET GeoComposite coated bitumen is an asphalt reinforcement composite which combines a high modulus polyester filament with a lightweight non-woven by warp-knitting processing. This composite is coated with bitumen to strengthen the bond with the asphalt layers.
This PET Geocomposite provides the best solution to reflective cracking in asphalt overlays. ECL PET Geocomposite reduces maintenance costs and extends the service life of the overlay.
Applications:
- Surface course reinforcement - Crack prevention and road repair
- Asphalt or Concrete resurfacing - Airport Construction
Features:
- Flexible, high-strength,
- Good resistance to shear force while installing damages
- Temperature-resistant asphalt
- Reinforcing grid with a bituminous coating
Technical Specification:
| Item Properties | Unit | PET-30/30C | PET-50/50C | PET-75/75C | PET-100/100C |
| Materials | / | Polyester Filament + Nonwoven | |||
| Nonwoven | / | 40g Ultra Light nonwoven | |||
| Coating | / | Polymeric Modified Bitumen | |||
| Mesh size of Grid | mm | 25.4 x 25.4 or 40 x 40 | |||
| Ultimate Tensile Strength MD x CMD | KN/M | 30 x 30 | 50 x 50 | 75 x 75 | 100 x 100 |
| Elongation at Ultimate | % | 12 | 12 | 12 | 12 |
| Tensile Strength at 5% Strain MD x CMD | KN/M | 14 | 24 | 35 | 46 |
| Roll Width | M | 5.0 Max. | |||
| Roll Length | M | 50 - 100 | |||
CE Approval:
Projects Reference:
