Basic Info.
Model NO.
Woven Geotextile
Material
PP
Kind
Woven
Length
as Your Request
Width
1-8m
Before Sales Service
Technical Data Sheet/Free Sample
Keyword
Woven Geotextile
Name
PP Woven Geotextile
Advantage
High Density
Type
PP Slit Film Woven Geotextile
Transport Package
Woven Geotextile
Specification
100g-1000G/M2
Trademark
Zhongloo
Origin
China
HS Code
5603139000
Production Capacity
60000suqre Meters/Day
Product Description
Polypropylene Woven Geotextile Fabric for Soil Stabilizer
Product Description
Woven geotextile mainly uses polypropylene(PP) as raw materials. After extruding, it has long term corrosion resistance in the soil and water with different PH; It has excellent microbiological degradation resistance; because this material is light and soft, so it is convenient to transport and install.
Product Characteristics
1) high strength, due to the use of plastic flat, in the dry state can maintain adequate strength and elongation
(2) corrosion, at different PH of the soil and water can be permanently resistant to corrosion.
(3) permeability is good, there is a gap between the flat yarn, it has good water permeability.
(4) anti-microbial resistance of microorganisms, insects are not compromised.
(5) to facilitate the construction, because the material is light, soft, so transporting, laying, to facilitate construction.
1) high strength, due to the use of plastic flat, in the dry state can maintain adequate strength and elongation
(2) corrosion, at different PH of the soil and water can be permanently resistant to corrosion.
(3) permeability is good, there is a gap between the flat yarn, it has good water permeability.
(4) anti-microbial resistance of microorganisms, insects are not compromised.
(5) to facilitate the construction, because the material is light, soft, so transporting, laying, to facilitate construction.
Advantages:
(1) High strength, due to the use of plastic flat, in the dry state can maintain adequate strength and elongation.
(2) Corrosion, at different PH of the soil and water can be permanently resistant to corrosion.
(3) Permeability is good, there is a gap between the flat yarn, it has good water permeability.
(4) Anti-microbial resistance of microorganisms, insects are not compromised.
(5) To facilitate the construction, because the material is light, soft, so transporting, laying, to facilitate construction.
(2) Corrosion, at different PH of the soil and water can be permanently resistant to corrosion.
(3) Permeability is good, there is a gap between the flat yarn, it has good water permeability.
(4) Anti-microbial resistance of microorganisms, insects are not compromised.
(5) To facilitate the construction, because the material is light, soft, so transporting, laying, to facilitate construction.
Products Datasheet
| Item | 150g | 200g | 250g | 300g | 350g | 450g | 450g | 500g | 600g |
| Nominal Breaking Strength KN/m | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
| MD/CD Break Strength ≥kN/m | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
| Elongation At Break % | 40%-80% | ||||||||
| CBR KN | 0.8 | 1.6 | 1.9 | 2.9 | 3.9 | 5.3 | 6.4 | 7.9 | 8.5 |
| MD/CD Tearing Strength KN | 0.14 | 0.21 | 0.28 | 0.42 | 0.56 | 0.70 | 0.82 | 1.10 | 1.25 |
| Thickness(mm) | 0.8 | 1.2 | 1.6 | 2.2 | 2.8 | 3.4 | 4.2 | 5.5 | 6.8 |
| Unit Weight Tolerance % | -5 | ||||||||
| EOSØ90(Ø95), mm | 0.05-0.2 | ||||||||
| Vertical Permeability Coefficient cm/s | K×(10-1-10-3) K=1.0-9.9 | ||||||||
| Width Deviation | -0.5 | ||||||||

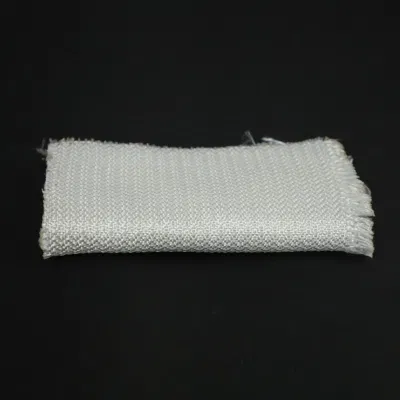

Products Display:
100% Virgin Material: 100% virgin exclusivefomulation material, make the bag No Smell Good Strength, Bright Color.
Advanced equipment and excellent weaving technology, making fabric with high-density, good toughness and strength.
Available width 1m to 8m Ultrasonic cutting. more neat and smooth. Anti-uv to the processing development, in order to increase the service life of the product. Mechanical packaging, professional and neatly.
Products Application
It can be widely used in railway, highway, sports hall, dams, hydraulic construction, tunnel, coastal beach, land reclamation,environmental protection and other projects, can play a filtration, drainage, separation, protection, reinforcement effect.
Work Shop
Company Informations:
Anhui zhonglu Engineer Material Co.,Ltd. is a high-tech enterprise which integrates development, design, production, consultation, construction, domestic and international trade of new earthwork synthetic material.
The company has specialized in producing geotechnical material including HDPE geomembrane, LDPE geomembrane, LLDPE geomembrane, EVA waterproof board, composite geomembrane, polypropylene geotextile, polyester geotextile, woven geotextile more than 15 years. The products are widely used in the field such as the landfill, pond, mine, garden landscape, water conservancy, highway, railway, oil field, biogas, industry and aquaculture etc.
The company has specialized in producing geotechnical material including HDPE geomembrane, LDPE geomembrane, LLDPE geomembrane, EVA waterproof board, composite geomembrane, polypropylene geotextile, polyester geotextile, woven geotextile more than 15 years. The products are widely used in the field such as the landfill, pond, mine, garden landscape, water conservancy, highway, railway, oil field, biogas, industry and aquaculture etc.
FAQ:
Q: Can you send samples?
A: Yes, we are very happy to provide you with free samples to check the quality of our products.
Q: Are you a manufacturer or a trading company?
A: Manufacturer, with are registered capital of 52 million yuan. It is a professional manufacturer of geocell, geomembrane, nonwoven geotextile, woven geotextile, geogrid and other products. So we have the competitive price with best quality.
Q: Can you produce the product according to customers' requirements?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q: How long is the delivery time?
A: General within 3-7 days after receiving the deposit.
Q: How to control product quality?
A: Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
Q: Are you a manufacturer or a trading company?
A: Manufacturer, with are registered capital of 52 million yuan. It is a professional manufacturer of geocell, geomembrane, nonwoven geotextile, woven geotextile, geogrid and other products. So we have the competitive price with best quality.
Q: Can you produce the product according to customers' requirements?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q: How long is the delivery time?
A: General within 3-7 days after receiving the deposit.
Q: How to control product quality?
A: Our factory adopts lean management, products from the beginning to the end of the production process have strict quality control. All products must be strictly tested before packing and shipping.
