Basic Info.
Model NO.
SGCC SGCH
Thickness
0.14-6mm
Width
20-1250 mm
Zinc Coating
60-275G/M2
Grade
Dx51d, SGCC, Sgch, A653, Dx52D, Dx53D
MOQ
25 Tons Normal
Certificates
BV, SGS, ISO, Ce
Sample
Free
Transport Package
Standard Seaworthy Export Packing
Specification
DX51D, SGCC, SGCH, A653
Trademark
Sino Steel
Origin
Shandong
HS Code
7210490000
Production Capacity
1000 Tons/Day
Product Description

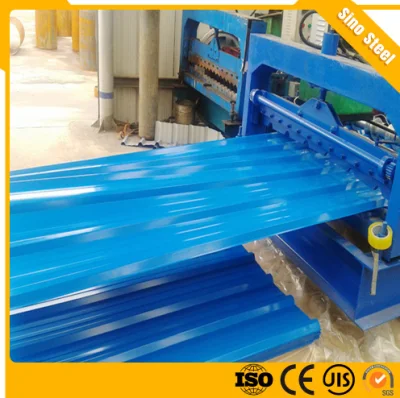

Galvanzied Color coated corrugated PPGI roofing sheet
1.Thick: 0.12 ~1.0 mm;
2.Width:600-1250 mm ;
3.Material : SGCC,DX51D~DX53D,G350-G550 .
4.Zinc coating :40~275G/M2 .
5.Payment terms: T/T, LC, Kun Lun Bank, Western Union, Paypal, O/A,DP,SINOSURE
1. Specification and picture:
1.Thick: 0.12 ~1.0 mm;
2.Width:600-1250 mm ;
3.Material : SGCC,DX51D~DX53D,G350-G550 .
4.Zinc coating :40~275G/M2 .
5.Payment terms: T/T, LC, Kun Lun Bank, Western Union, Paypal, O/A,DP,SINOSURE
1. Specification and picture:
| Material | CGCC,SGCH,G350,G450,G550,DX51D,DX52D,DX53D |
| Thickness | 0.12-1.0mm |
| Width | 750-1250mm(before corrugation) 600-1100mm(after corrugation) |
| Length | 1000-3500mm or as require |
| Coating type | Galvanized, Galvalume, Prepainted coating(PE, SMP, HDP, PVDF) |
| Painting Thickness | Z40-275; AZ30-AZ150; Top: 15 to 25 um (5 um + 12-20 um) back: 7 +/- 2 um |
| Pallte Weight | 3-5 Tons |
| Annual Output Quantity | 350,000MT |
| MOQ | 25 tons or one container |
| Payment | T/T, LC, Kun Lun Bank, Western Union, Paypal, O/A, DP |
| Hardness | Soft hard(60),medium hard(HRB60-85),full hard(HRB85-95) |
| Surface structure | Norma, Matt, PVC film, wood grain, Flower Grained, embossed, etc |
| Color chart | RAL color number |
| Application | exterior and interior wall,roofs,and soffits |
| Package | 3 layers of packing, inside is kraft paper, water plastic film is in the middle and ouside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve . |
| Monthly Output | 10000 tons |
| Remarks | Insurance is all risks and accept the third party test |
| Loading Port | Tianjin/Qingdao/Shanghai Port |
