Product Description
Product Introduction:

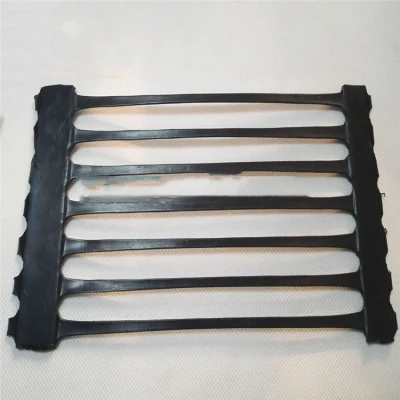

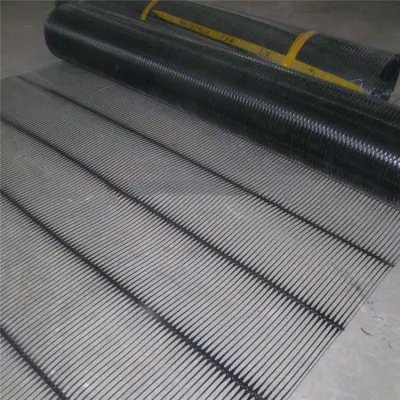

Uniaxial plastic technical grid is a kind of technical material with high strength that uses high molecular polymer asmain rawmaterial, adds certain ultraviolet proof and aging resistance agent and makes messy chain shape molecules have drectionallayout and from linear status by unidirectional extension. Plastic technical grid makes directional tension undercertain temperature condition according to physical features of high molecule polymer,so its strength is very high in tension direction, tension resistance reaches 100-200Mpa,yield elongation rate is only 4-10%, it is near to the level of low carbon steel and much better than traditional or current reinforcement materials, and is very ideal synthetic material forstrengthening andreinforcement of civil projects.

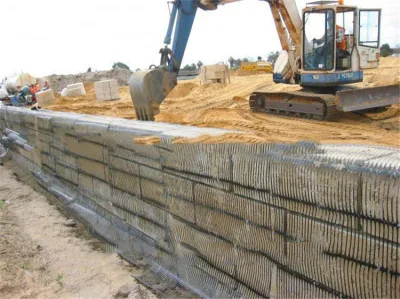

Applications

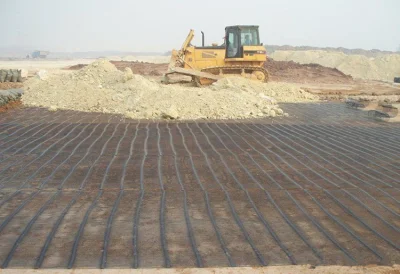

1. Pavement subgrade stabilization
2. Area /Ground stabilization
3. Pavement base reinforcement
4. Working & load transfer platforms
5. Rail Track-bed stabilization
6. Reinforced granular foundation beds
Technical Parameters :
| Specification | Unit | TGDG50 | TGDG65 | TGDG80 | TGDG90 | TGDG100 | TGDG110 | TGDG130 | TGDG150 | TGDG170 | TGDG200 | TGDG220 |
| Polymer | - | HDPE | ||||||||||
| Carbon Black | % | 2 | ||||||||||
| Tensile strength | kN/m | 50 | 65 | 80 | 90 | 100 | 110 | 130 | 150 | 170 | 200 | 220 |
| Elongation | % | 11.5 | ||||||||||
| Tensile strength at 2% strain | kN/m | 12 | 16 | 21 | 24 | 26 | 29 | 38 | 41 | 52.5 | 60 | 64 |
| Tensile strength at 5% strain | kN/m | 23 | 31 | 40 | 45 | 50 | 55 | 75.5 | 81 | 103 | 110 | 127 |
| Width | m | 1 or 1.1 or 2.5 or 3 | ||||||||||
FAQ:
Q: Can I have a sample?
A: Yes, it is our pleasure to send free samples for checking quality and just undertake the freight charge by yourself.
Q:What is the lead time for samples?
A: Current sample need 1 day, customized samples need 5-7 days,
Q:What express do you use to send the samples?
A: We usually ship samples by DHL, TNT, FEDEX and UPS. It usually takes 3-5 days to arrive.
Q:What is the payment terms?
A: Our usual payment term is T/T and L/C . Others could be negotiated.
Q:Can you produce as my drawing?
A:Yes, we can customized for you based on your drawing or sizes.
Q:How about the delivery time?
A:Usually production time is 10-15 days. It will be decided by the order quantity.
