Best Price Polyester Continuous Filament Geo Textile Fiber Nonwoven Geotextile for Highway

Get the best price on polyester continuous filament geotextile for highway construction. Our factory produces high-quality nonwoven geotextile fibers. Contact us for more information.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
geotextile
Material
PET
Kind
Non-woven
Width
3-6m
Length
50-100m(as Required)
Keyword
Non Woven Geotextile
Transport Package
Roll Package
Specification
100-800g/Sqm
Trademark
zhongloo
Origin
China
HS Code
5603949090
Production Capacity
30000 Square Meters Per Day

Product Description

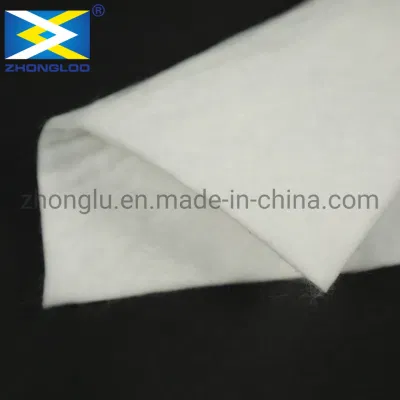

Best Price Polyester Continuous Filament Geo textile Fiber Nonwoven Geotextile for Highway

Geotextile Fabric Description:
Polyester Filament Needle Punched Geotextile was made from virgin polyester chips, the continous filament was extruded from polyester chip by machine directly by spunbond process. Pet Long Fiber Nonwoven Geotextile punch together to get the stable 3D with highter strength fabric . so Nonwoven Geotextile Fiber has high strength , good creep property excellent and erosion resistance, aging-resistance and heat resistance.
Polyester Filament Needle Punched Geotextile sed to separate,filter,reinforce, protect or drain.Geotextiles are commenly used to separate layers like clay and drainage and to protect liner from damage.
Best Price Polyester Continuous Filament Geo Textile Fiber Nonwoven Geotextile for Highway
Geotextile Fabric Feature:
1)anti-aging, the product has very high anti-ultraviolet radiation ability, not easy to degradation.
2) High temperature resistance to up to 230ºC maintaining structure stability and original physical properties.
3) High flat drainage and vertical permeability.
4) High creep resistance.
5) Resistance of erosion of chemicals in soil as well as the corrosion of gasoline and diesel etc.
6) High elongation under certain stress, thus able to adapt to uneven and irregular bases.
Best Price Polyester Continuous Filament Geo Textile Fiber Nonwoven Geotextile for Highway

Geotextile Fabric Parameters
Non-woven Geotextile Technical Parameter (GB standard)
Item
unit
Standard Specification
100
150
200
250
300
350
400
450
Thickness≥
mm
0.9
1.3
1.7
2.1
2.4
2.7
3
3.3
width Deciation
%
0.5
Breaking strength
KN/M
2.50
4.50
6.50
8.00
9.50
11.00
12.50
14.00
Breaking Elongation
%
25-100
Weight Tolerance
g/m²
-8
-8
-8
-8
-7
-7
-7
-7
CBR Tear Strength≥
KN
0.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
Tear Strength≥
KN
0.08
0.12
0.16
0.2
0.24
0.28
0.33
0.38
Vertical Permeability
N/5cm
Kx(10-¹-10-³)
EOS 090
mm
0.07-0.2

Applications of Geotextiles
1. Drainage
Geotextiles will efficiently collect surplus water from structures, such as rainwater or surplus water, from the soil and
discharge it.
2. Filtration
Our geotextiles provide superior hydraulic flow and soil retention, which makes them well suited for filtration in subsurface
drainage applications and under hard armour systems.
3. Separation
Geotextiles are used for paved and unpaved roads, where ground conditions have been compromised. As a separation layer,geotextiles can aid preventing the intermixing of dissimilar materials, add to the performance life of the road and reduce the overall thickness of the road section by requiring less aggregate during construction.
4. Reinforcement
High strength geotextiles can be used to reinforce earth structures as the strength of the tape or filament within the fabric
maybe increased to suit a specific application. Thanks to their high tensile strength they are an ideal reinforcement solution.
5. Protection
Due to the consistent thickness and weight of our Geotextiles, they provide adequate cushioning and protection for critical lining systems.

Best Price Polyester Continuous Filament Geo Textile Fiber Nonwoven Geotextile for Highway
Best Price Polyester Continuous Filament Geo Textile Fiber Nonwoven Geotextile for Highway Best Price Polyester Continuous Filament Geo Textile Fiber Nonwoven Geotextile for Highway

Best Price Polyester Continuous Filament Geo Textile Fiber Nonwoven Geotextile for Highway Best Price Polyester Continuous Filament Geo Textile Fiber Nonwoven Geotextile for Highway FAQ



Q1: Are you a factory or trading company? Where is your company located?
A1: We are a manufacturer/factory. Our company is located in Shandong, China.

Q2: How do you ensure the quality?
A2: We are working with three QC processes to guarantee the quality:
1 .For raw materials;
2.Onsite inspection during production;
3.Final QC test for each batch of finished products.

Q3: OEM OR ODM accepted?
A3: We can produce the geotextile as per customer's technical requirements.

Q4:How to get the sample?
A4: We can provide you samples for quality inspection. According to our company policy, samples are free,
we only charge the freight fee. The freight fee will be returned If you place the order.


Q5: What's your MOQ? Can I order small quantity for testing at first order?
A5: For new client, we accept small order for building mutual trust and long-term business relationship.

Q6: How many days will samples be finished? And how about the mass production?
A6: Generally prompt delivery for samples. The leading time of mass production will depend on the quantity.

Q7: What's the payment method you accept?
A7: T/T, L/C,D/P etc.

Q8: Can I visit your company?
A8: Welcome to visit our factory and it is our great pleasure.
