Basic Info.
Product Description
Product Description:

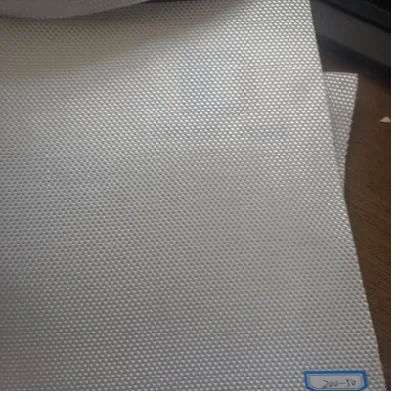

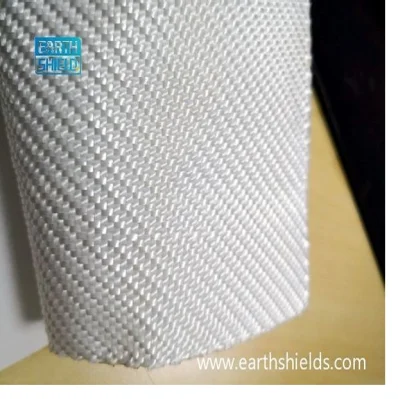

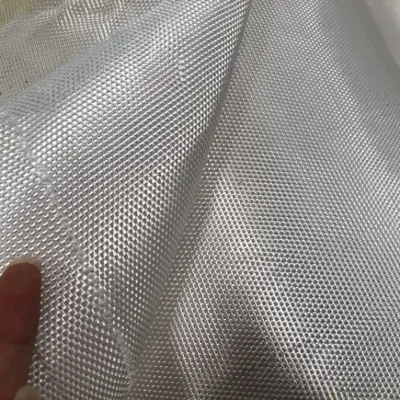

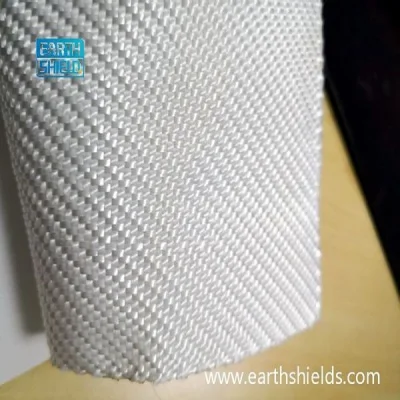

Best Quality 100KN Woven Geotextile with CE Certificate/ISO9001
Geotextiles are commenly used to separate layers like clay and drainage and to protect liner from damage.
Product Item:
Nominal Breaking Strength KN/m | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
MD/CD Break Strength ≥kN/m | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
Elongation At Break % | 40%-80% | ||||||||
CBR KN | 0.8 | 1.6 | 1.9 | 2.9 | 3.9 | 5.3 | 6.4 | 7.9 | 8.5 |
MD/CD Tearing Strength KN | 0.14 | 0.21 | 0.28 | 0.42 | 0.56 | 0.70 | 0.82 | 1.10 | 1.25 |
Thickness(mm) | 0.8 | 1.2 | 1.6 | 2.2 | 2.8 | 3.4 | 4.2 | 5.5 | 6.8 |
Unit Weight Tolerance % | -5 | ||||||||
EOSØ90(Ø95), mm | 0.05-0.2 | ||||||||
Vertical Permeability Coefficient cm/s | K×(10-1-10-3) K=1.0-9.9 | ||||||||
Width Deviation | -0.5 | ||||||||
Product Property:
1)High strength, use of plastic fiber, in the wet and dry state can maintain full strength and stretch.
2)Corrosion resistance, long term corrosion resistance in soil and water with different pH.
3)High flat drainage and vertical permeability.
Product Application:
Continuous Filament nonwoven fabrics used to separate,filter,reinforce, protect or drain. Geotextiles allow filtration
or separation of granular layers in roads and rail applications,used to protect membranes in landfill applications,
used in coastal defence applications and used in landscaping to protect surfaces and structures from weeds and root growth.
Our Company:
Shandong Dajin Geosynthetics Co.,LTD. is located in Jinan City, Shandong, China, which is a comprehensive
service provider as well as solution provider integrating design, production and construction.The products provided
by Dajin include geotextile,geomembrane, composite geomembrane warp-knitted geogrid, glass fiber geogrid, plastic
geogrid,steel-plastic geogrid, mining geogrid, high-strength mining polyester fiber mesh, geocell and other geosynthetics.
and our product quality,technology and equipment lie in top of the industry. Our goal is to become a world-class company
dedicated to providing our customers with comprehensive, reliable and high-quality services and solutions.
Packaging & Shipping:
| PET NON WOVEN Geotextile Can be packed in roll with woven package | ,the roll size recommended is:5.8*100m ,other size can be customerized |
Related Products:
1)Non woven Geotextile is widely used for road,driveway,ponds,mining and water containment ,landfill application.
2) connect machine can be supplied
Our Certificates:
Our Services:
1.Average feedback time Less than 2 hours;
2.Senior engineers with more than 10 years experience lead our professional technical team;
3.Establish test result database for each batch of products;
4.Raw material QC system,production process QC system,pre-shipment QC system;
5.Dajin can provide installation and technical guidance services;Third party test or inspection;
6.Sample availability: A4 size sample or smaller size is available in free cost.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:Is the quality of your products stable?
The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment. If you have another question, please feel free to contact us at any time.
