Basic Info.
Model NO.
Steel Plastic Geogrid
Classification
Plastic Steel Geogrid
Material
Steel Plastic
Elongation
<=3%
Mesh Size
80*80mm, or as Request.
Types
Welding
Popular Roll Width
3.9m, 5.8m
Roll Length
50-100m
Certificates
CE/ISO
Transport Package
Inner Pipe + Outside Bag or Film
Specification
2-6m width
Origin
China
HS Code
3926909090
Production Capacity
20000m2 Per Day
Product Description
PP Welding Geogrid has great friction with soil. The friction coefficient of PP geotextile is greater than 0.5, and the contact area of Geogrid and soil reaches more than 20%-50%. Under low strain, it can produce extremely high tensile modulus. The synergistic action of the rib to the rib has a great locking effect on the soil.
With polypropylene as the main material, adding anti aging agent and other auxiliaries, through extruding and drawing forming, it becomes a high strength refined strip. It is arranged in a certain distance and vertically and horizontally, and the welding point is welded by special reinforcement bonding. It is formed as a PP Welding Geogrid.
By the way, we have CE/ISO certificates for this product.
With polypropylene as the main material, adding anti aging agent and other auxiliaries, through extruding and drawing forming, it becomes a high strength refined strip. It is arranged in a certain distance and vertically and horizontally, and the welding point is welded by special reinforcement bonding. It is formed as a PP Welding Geogrid.
By the way, we have CE/ISO certificates for this product.
Technical Data Sheet:
| Steel-Plastic Composite Geogrid: (ISO/CE Certificates) | ||||||||
| Specification | 30-30 | 40-40 | 50-50 | 60-60 | 80-80 | 100-100 | 150-150 | |
| Tensile Strength (KN/M) | Warp | 30 | 40 | 50 | 60 | 80 | 100 | 150 |
| Weft | 30 | 40 | 50 | 60 | 80 | 100 | 150 | |
| Elongation % | ≤ 3 | |||||||
| Drawing Force at 2% Elongation Ratio (KN/M)≥ | 27 | 32 | 45 | 54 | 67 | 84 | 127 | |
| Width (m) | 6±0.06 | |||||||

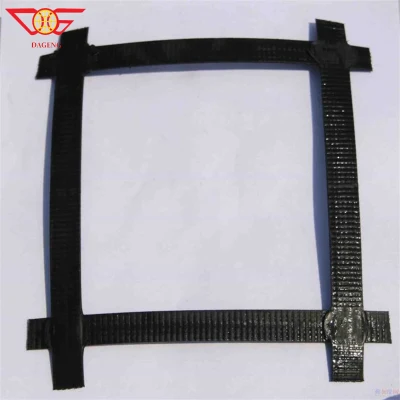

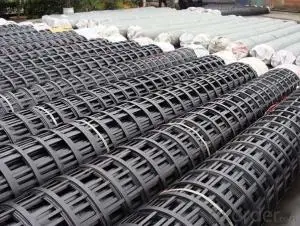

Propduct Photos:
Our advantages:
1. High tensile strength
2. The elongation rate is small
3. Corrosion resistance and aging resistance
4. Strong bite force with base material
5. Light weight and drainage
Application:
- It reinforces old asphalt concrete road surface as well as asphalt layer, and prevents damage;
- It is used for rebuilding cement concrete road surface into composite road surface and restraining reflection caused by block contraction;
- It is used in road expansion and improvement project, control cracks caused by old and new combination position or by uneven sedimentation;
- It is used in soft soil base reinforcement treatment. It is favorable for soft soil water separation and concretion,restrains sedimentation effectively, distributes stress uniformly and improves overall strength of road base;
- It is sued for preventing contraction crack caused by new road semi-rigid base layer, and reinforces and prevents road surface crack caused by foundation crack reflection.

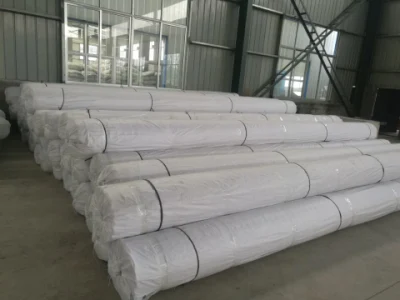

Package and Delivery:
Package: Inner pipe + outside bag or film.
Delivery: 15 containers per month.
FAQ:
Q: Are you factory or trading company?
Q: Which country did you export?
A: Our products have been exported to many countries all over the world, including USA, Panama, Colombia, Chile, Peru, Ecuador, Russia, UK, Italy, France, Germany, Poland, Hungary, Turkey, Romania, Israel, India, Philippines, Singapore, Vietnam, Thailand, Indonesia, Australia, New Zealand...
Q: May I have your samples for testing?
Q: What is your MOQ?
A: Normally, MOQ is one 20'GP container. But we also accept LCL for trial order.
Q: What's the payment term?
