Basic Info.
Model NO.
Geomembrane Manuacturer
Surface
Smooth
Application
Hydraulic Project, Geotechnical Project, Environmental Project
Feature
Puncture Resistance, Impact Resistance, Tear Resistance
Material
HDPE
Color
Black
Width
1-8m or Customized
Thickness
0.3-3mm
Length
50m, 100m or Customized
Packing
Woven Bag
Standard
ASTM GM13
Delivery Time
Within 15day
Geomembrane
LDPE/HDPE /LLDPE/Composite Geomembrane
Transport Package
Woven Bag
Specification
high-density polyethylene
Trademark
Looking-forward
Origin
Shandong, China
HS Code
39201090
Production Capacity
20000sqm/Day
Packaging & Delivery
Package Size
5000.00cm * 40.00cm * 40.00cm
Package Gross Weight
118.000kg
Product Description
China HDPE /LLDPE/LDPE Geomembrane Manufacturer
Geomebrane Application:

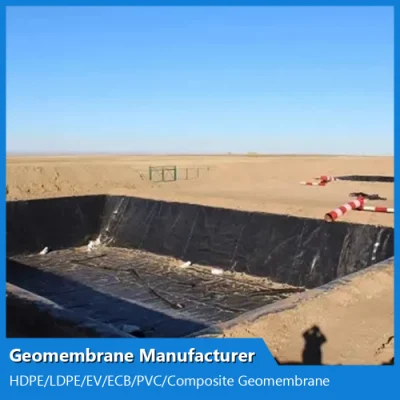

1. Environmental protection and sanitation: such as landfill, sewage treatment plant, power plant regulation pool, industrial and hospital solid waste, etc; OK
2. Gardening: Artificial Lakes,rivers,reservoirs,pool bottolms of golf courses,slope protection,waterproof and moisture-proof green lawnst,etc

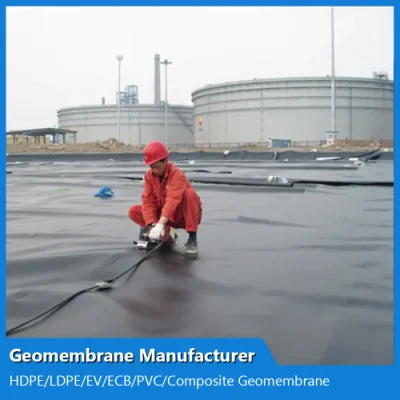

3. Petrochemical: chemical plant, refinery, oil storage tank anti-seepage, chemical reaction tank, sedimentation tank lining, secondary lining, lining and secondary lining of chemical plants,etc;
4. Mining: Washing tank,heap leaching tank,ash yard,dissolution tank,sedimentation tank,storage yard,bottom lining anti-seepage of taillings,etc
5. Transportation facilities: foundation reinforcement of highways,anti-seepage of culverts

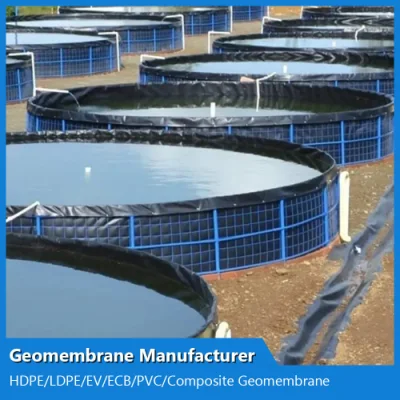

6. Aquaculture industry: lining of intensive and factory aquaculture ponds, fish ponds, shrimp ponds, and slope protection of sea cucumber circles,factory breeding pond, fish pond, shrimp pond lining, sea water circle slope protection,etc.

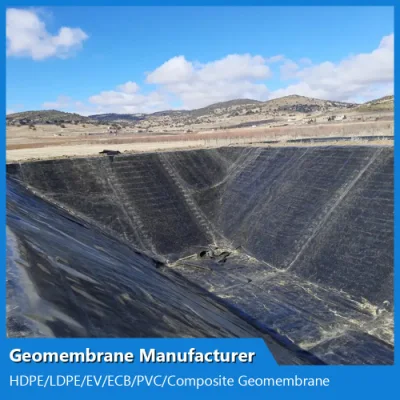

7. Water conservancy projects: such as seepage prevention, plugging, reinforcement, canal seepage prevention, vertical core wall, slope protection, reinforcement of rivers and Lakes reservoir dams,leakage blocking,anti-seepage of canals, vertical core walls, slope protection, etc;
8. Municipal Engineering: Subway, building underground engineering, planted roof, roof garden, sewage pipe anti-seepage;
9. Agriculture: Reservoir, drinking water pool, storage pond, waste residue treatment field, and anti-seepage of irrigation system;
10.Salt industry: Salt Field crystallization pool, halogen pool cover, Salt film, salt pool plastic film,salt pool plastic film
TDS technical indicators
Geomebrane Application:1. Environmental protection and sanitation: such as landfill, sewage treatment plant, power plant regulation pool, industrial and hospital solid waste, etc; OK
2. Gardening: Artificial Lakes,rivers,reservoirs,pool bottolms of golf courses,slope protection,waterproof and moisture-proof green lawnst,etc
3. Petrochemical: chemical plant, refinery, oil storage tank anti-seepage, chemical reaction tank, sedimentation tank lining, secondary lining, lining and secondary lining of chemical plants,etc;
4. Mining: Washing tank,heap leaching tank,ash yard,dissolution tank,sedimentation tank,storage yard,bottom lining anti-seepage of taillings,etc
5. Transportation facilities: foundation reinforcement of highways,anti-seepage of culverts
6. Aquaculture industry: lining of intensive and factory aquaculture ponds, fish ponds, shrimp ponds, and slope protection of sea cucumber circles,factory breeding pond, fish pond, shrimp pond lining, sea water circle slope protection,etc.
7. Water conservancy projects: such as seepage prevention, plugging, reinforcement, canal seepage prevention, vertical core wall, slope protection, reinforcement of rivers and Lakes reservoir dams,leakage blocking,anti-seepage of canals, vertical core walls, slope protection, etc;
8. Municipal Engineering: Subway, building underground engineering, planted roof, roof garden, sewage pipe anti-seepage;
9. Agriculture: Reservoir, drinking water pool, storage pond, waste residue treatment field, and anti-seepage of irrigation system;
10.Salt industry: Salt Field crystallization pool, halogen pool cover, Salt film, salt pool plastic film,salt pool plastic film
TDS technical indicators
| HDPE Geomembrane: (ASTM/CE/GB standards available) | |||||||
| Thickness/mm | 0.75 | 1 | 1.25 | 1.5 | 2 | 2.5 | 3 |
| Lowest Individual of 10 values / Nom.(mil) | -10% | ||||||
| Density / min. g/cc | 0.94-0.96 | ||||||
| Yield Strength KN/M | 11 | 15 | 18 | 22 | 29 | 37 | 44 |
| Break Strength KN/M | 20 | 27 | 33 | 40 | 53 | 67 | 80 |
| Yield Elongation % | 12 | ||||||
| Break Elongation % | 700 | ||||||
| Tear resistance/N | 93 | 125 | 156 | 187 | 249 | 311 | 374 |
| Puncture Resistance/N | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| Stress Crack Resistance (hr.) | 500 | ||||||
