Basic Info.
Model NO.
B. S/JX/JS-04
Ceiling Tile Shape
Sheet
Material
PU
Thickness
6-10mm
Ceiling Tile Type
Mineral Wool Ceilings
Surface Treatment
Roll Coated
Function
Anti-static, Fireproof, Heat Insulation, Sound-Absorbing, Waterproof, Anti-Aging
Certification
ISO, MSDS, CE
Color
Black
Usage
Outdoor, Indoor
Elongation at Break
380%/400% Min
Tensile Strength
10MPa/16MPa Min
Tear Strength
20/30kn/M Min
Brittleness Temperature
Minus 40/45/50 Degrees Celsius
Transport Package
in Roll with Film in Cartoon Box to Pallet
Specification
20*30, 10*10, 10x20, 20*25, or as requirement
Trademark
Chuangwan
Origin
Dashu Town, Quanjiao County, Chuzhou City in China
HS Code
4016931000
Production Capacity
10000 Meters /Day
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Package Gross Weight
3.000kg
Product Description

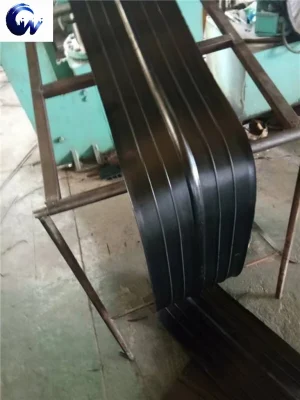

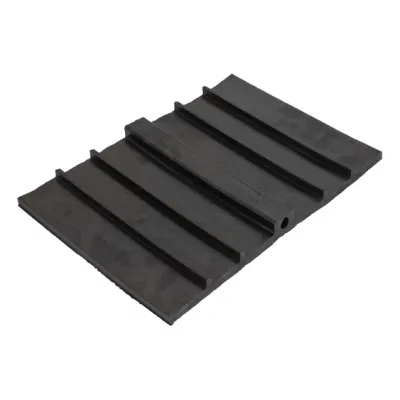

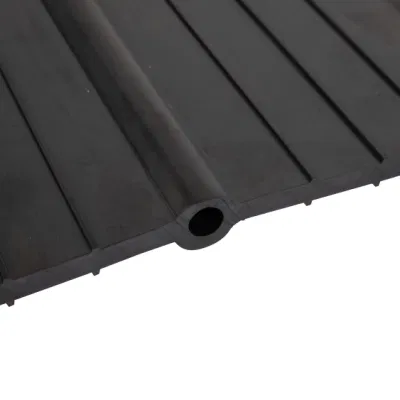

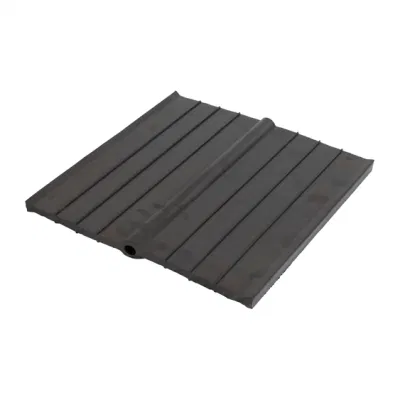

The waterstop is made of polymer inorganic water absorbing expansion material and rubber, which is used to prevent leakage in the construction joints of various underground structure construction projects, water conservancy projects, traffic tunnel projects, power plant cooling towers, municipal water supply and drainage and other masonry concrete projects.
| Rubber waterstop: GB/T18173.2-2014 | ||||||
| No. | Item | Index | ||||
| B.S | J | |||||
| JS | JX | |||||
| 1 | Hardness (Shore A)/degree | 60±5 | 60±5 | 40-70 | ||
| 2 | Tensile strength/MPa,>= | 10 | 16 | 16 | ||
| 3 | Elongation at break/%,>= | 380 | 400 | 400 | ||
| 4 | Compression set/% | 70ºC×24h,25% <= | 35 | 30 | 30 | |
| 23ºC×168h,25% <= | 20 | 20 | 15 | |||
| 5 | Tear strength/(KN/m) >= | 30 | 30 | 20 | ||
| 6 | Brittleness temperature/ºC <= | -45 | -40 | -50 | ||
| 7 | Hot air aging 70ºC×168h | Hardnesschange (ShoreA)/degree <= | +8 | +6 | +10 | |
| Tensile strength/MPa >= | 9 | 13 | 13 | |||
| Elongation at break/% >= | 300 | 320 | 300 | |||
| 8 | Adhesion strength between rubber and cord fabric/(N/mm) >= | - | 5 | - | ||
| a:The rubber hardness range is the recommended value for reference in the design of JY type waterstops for different immersed pipeline projects. | ||||||
| b:Rubber to metal adhesive items are only applicable to waterstops compounded with steel edges. | ||||||
| c:The rubber to cord adhesion item is only applicable to JX type waterstops compounded with cord fabric. | ||||||
| Note: If there are other special needs, the inspection items can be appropriately added by agreement between the supplier and the supplier. The water swelling rubber part of the rubber composite waterstop shall comply with the provisions of GB/T 18173.3. | ||||||
Rubber waterstops are mainly used in foundation projects that integrate concrete structures into construction and deformation joints during cast-in-place concrete pouring, such as underground facilities, tunnels, culverts, water conveyance aqueducts, water retaining dams, and liquid storage structures.
