Basic Info.
Product Description
Geomat is kind of new 3D structural geosynthetic product which is applied in water and soil conservation.It used to prevent soil erosion,increase the greening area,improve the ecological environment.
Geomat can be used in raising, construction, fencing, livestock, frames and planting industries, etc.

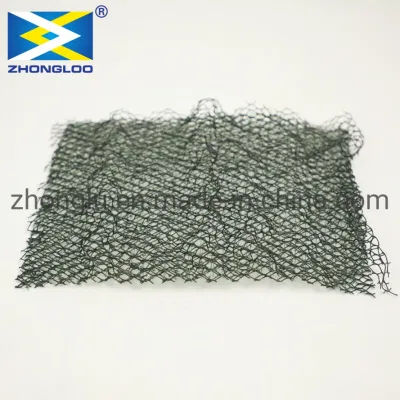

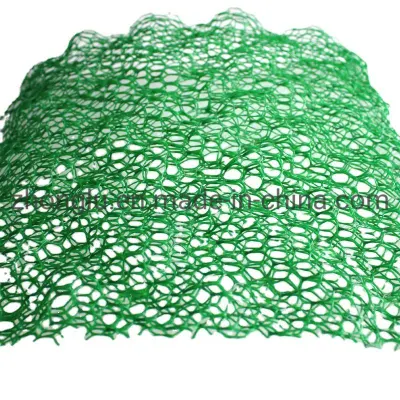

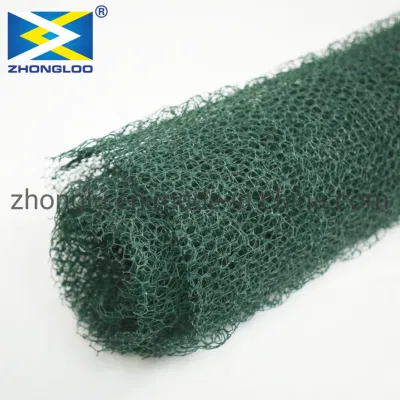

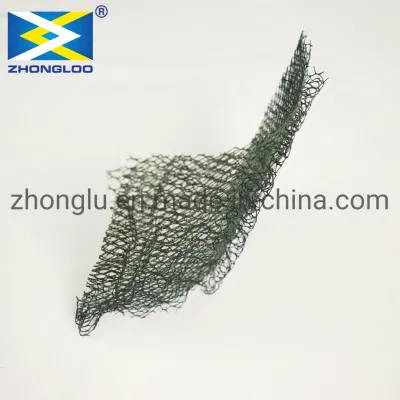

3D erosion control mat is a kind of multi-layer plastic mat made of thermoplastic resin through extruding, stretching, and composing. It is applied to plant and fix soil with loose texture and leaves 90% space to fill earth, sand and stones. Plant roots can go across it, and grow comfortably. Turf after growing can let mat, grass and earth be combined together firmly.
Application:
The lightweight and flexible 3D Geo-mat is easy to handle and install. It can be used:

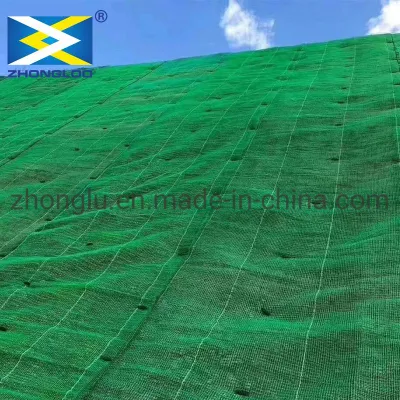

• As a substitute for concrete or stonewalls for slope protection.
• As an integrated erosion control system on steep slopes and erosion prone areas.
• To prevent erosion on river embankments, channels and flood plains.
• To re-vegetate the sides of roadways and landfill sites.
• To ensure a stable cover necessary to protect geo-membranes from UV radiation.
1.Before the greensward grows, it prevents the surface of the land from the erosion of the wind and rain.
2.Forming compound protection layer with the plant, standing the wash-out of the high water level and high speed current.
3.Replacing the concrete, asphalt, and block, using in the slope surface protection of roadway, railway, river-way, dyke, and the hillside, etc.
Installation
Shaping and compacting the sub soil to the required profile.
1, Unrolling the 3D Geo-mat down the slope and fixing it in position with 150---300mm u-pegs.U-Pegs should be spaced between 300mm and 700mm depending on the substrate to ensure that the 3D Geo-mat makes contact with the surface.Overlaps should be pegged at 100mm centres in dry applications and 300mm in wet applications….
2, Anchoring the top of the embankment in spade-deep trenches and ,Where necessary,anchoring the edges to prevent the 3D Geo-mat slipping on the slope and uplift…
3, Longitudinal edges should be overlapped 50mm and transverse edges overlapped 150mm…
4, After seeding the subsurface at a rate of 20-30.
FAQ
1.What is geosynthetics ?
Geosynthetics form a perfect erosion control fabric used extremely widely in civil engineering to stabilize and reinforce slopes and soil under or next to roads, railways, dams, water reservoirs etc.. They can be easily applied which minimizes the time of construction, as well as they limit the resources and materials necessary.
What kinds of geosynthetics we have ?
Non-woven geotextile, geogrids, geocells, GCL, Geomembranes, Geonets, Geocomposites etc .
What is the geosynthetics used for ?
Lagooning and Water Treatment, Ornamental Ponds, Golf Courses
Aquaculture and Desalination,Water Lagoons,Tanks, Reservoirs, Liquid Waste,Floating Cover Solutions, Drainage and Filtration
Environment
Tailing ponds, Leach mining,Landfills,Landfill Capping,Protection against corrosion,Vertical Barriers
Civil Works
Erosion Control,Secondary Containment,Tunnels,Linear and Surface Works,Consolidation of Margins,Soil Reinforcement,Soil Separation.
Building - Parkings,Roofing,Soundproofing
