Basic Info.
Model NO.
20KN to 800KN
Classification
Fiberglass Geogrid
Material
Fiberglass
Certificate
CE ISO SGS Tri Sgi Bttg BV Bba
Transport Package
PE Film
Specification
50kn 100kn 200kn
Trademark
OEM
Origin
China
HS Code
70195900
Production Capacity
999999
Product Description

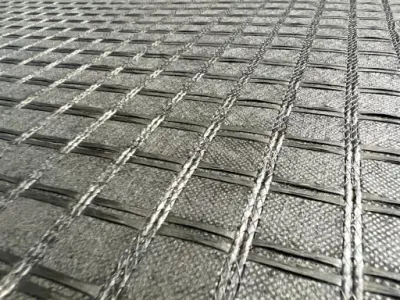

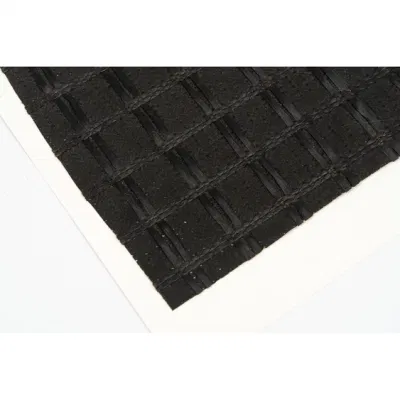

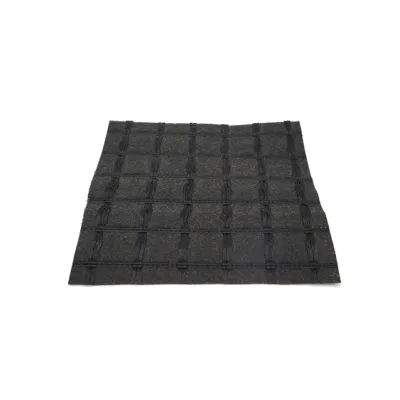

Asphalt reinforcement glassgrid geocomposites
Introduction
Fibreglass Geogrid (FG) Knitted with PP Spunbond Nonwoven Geotextile Impregnated by Bitumen is an asphalt reinforcement composite that fiberglass geogrid with light weight PP Spunbond Nonwoven Fabric .They are stitched together and coated by bitumen to strengthen the bond with the asphalt layers .
Benefits
- Suitable for all types of asphalt mixes.
- Minimizes both thermal and stress related reflective cracking.
- Reduces pavement rutting under high ambient temperatures and intense wheel loads.
- Increases the fatigue life of pavements with weak foundations.
- Extends pavement life.
- Provides cost benefits by increasing pavement life cycle.
- Fast, easy installation and recyclable.
- Reduces overlay thickness to a minimum of 50 mm.
Applications
- Airport runways, taxiways, roads, bridges, parking lots, jointed concrete highways to control reflective cracking.
- High traffic pavement to control of rutting.
- New highway construction, and other road maintenance/repair jobs to improve pavement life.
| PHYSICAL PROPERTIES | TEST METHOD | UNIT | MINIMUM AVERAGE ROLL VALUE |
| Mass per Unit Area(Typical) | ASTM D-5261 | oz/yd2(g/m2) | 10.3(350) |
| Aperture Size (Grid) (MD/TD)(Typical) | Measured | in(mm) | 1.2/1.2(30/30) |
| Percent Open Aera (Grid only) | COE Method | % | 70+ |
| Wide Width Tensile Strength1 @ Ultimate (MD/TD) | ASTM D-6637 | lb/ft (kN/m) | 3426/3426 (50/50) |
| Elongation at Break (Typical) | ASTM D-6637 | % | <3 |
| Melting Point | ASTM D-276 | ºF (ºC) | >425(>218) |
| Roll Dimensions (Max.Width×Length) | - | ft(m) | 7.22×328.1(2.20×100) |
| 12.5×246(3.81×75) | |||
| Roll Area | - | yd2 (m2) | 236.1 (220) |
| 341.67 (285.75( | |||
| Roll Weight (Gross) | - | lb (kg) | 190 (86) |
| 247 (112) |
NOTES: 1: ALL values stated here are Minmum Average Roll Values and based on a 95% confidence level unless otherwise \
noted.(MD-Machine Direction; TD-Transverse Direction, also called Cross Machine Direction
Company Information
Feicheng Lianyi Engineering Plastics Co., Ltd is the currently one of the biggest geosynthetics manufacturer in China . It is located in Feicheng city,Shandong province of China. We are specilized in series of Geogrids, Geotextiles,Geomembranes,Geocell etc,and have the absolutely advantage for the quality in this field of China.
Our Main products include PP Biaxial Geogrid,Fiberglass Geogrid,Self adhesive Fiberglass Geogrid,Polyester Geogrid,HDPE Uniaxial Geogrid,Welded Geogrid,Composite Fiberglass Geogrid & Polyester geogrid with Spunbond nonwoven geotextile or Needlepunched Nonwoven geotextile by glue,Fiberglass Geogrid & Polyester Geogrid knitted Spunbond Nonwoven geotextile or Needlepunched Nonwoven geotextile impregnated by bitumen,Combigrid (PP Biaxial Geogrid with Nonwoven Geotextile by welding),Nonwoven Geotextile,HDPE Geocell,PP Woven Geotextile,Mining Geogrid etc .
We have always adhered to the philosophy of prioritizing quality, strict management, high-quality service, following customer requirements, consistently exploring and advancing, serving customers well. Integrity first, efficient service, high quality products, sincere cooperation,We hope to maintain long-term cooperation with you
Our Certificates
Exhibitions
FAQ
Q1:What is your delivery time?
A1:Generally it is 5-10 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q2:Where is your company?
A2:Feicheng shandong province, China and if you want to coming,please call me ,I will arrange your schedule.
Q3:Are you trading company or manufacturer?
A3:We are manufacturer and we have BV certification. So we have a lower price than trading company.
Q4:What is your delivery method?
A4:T/T, Western Union, L/C etc
Q5:Do you provid samples?Is it free or extra?
A5:Yes, we can offer the sample for free charge but do not pay the cost of freight.
Q6:What is your terms of payment?
A6:Payment<=1000USD,100% in advance.Payment>=1000USD, 30%T/T in advance, balance before shippment. If you have another question, please to contact me.
