Basic Info.
Model NO.
Geogrid Fabric
Application
Retaining Wall, Steep Slop, Dam, Road Base
Viscose
Without Viscose
Function
Anti-slip, Reinforcement
Classification
Plastic Geogrid
Material
Plastic
Length
50m-100m
Width
1m-6m
Certificate
CE/ISO9001
Tensile Strength
15kn/M--50kn/M
Elongation at Break
13% Max
Product Name
Plastic Geogrid
Raw Material
Plastic
MOQ
2000m2
Package
PP Woven Bags
Process
Extruded
Sample
Freely
Transport Package
PP Plastic Geogrid Is Usually Packed by PP Woven B
Specification
3.95*50m
Trademark
Jinruixiang
Origin
Shandong
HS Code
3926909090
Production Capacity
50000 Square Maters/ Day
Packaging & Delivery
Package Size
30.00cm * 30.00cm * 1.00cm
Package Gross Weight
1.000kg
Product Description
The properties of Biaxial Geogrids, made of Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil.
The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill.
The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill.
| Item | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG35-35 | TGSG40-40 | TGSG45-45 |
| Longgitudinal Tensile strength ≥ (KN/m) | 15 | 20 | 25 | 30 | 35 | 40 | 45 |
| Transverse Tensile strength ≥ (KN/m) | 15 | 20 | 25 | 30 | 35 | 40 | 45 |
| Longitudunal Elongation ≤ (%) | 15 | ||||||
| Transverse Elongation ≤ (%) | 13 | ||||||
| Longitudinal Tensile strength at 2% strain ≥ (KN/m) | 5 | 7 | 9 | 10.5 | 30 | 30 | 30 |
| Transverse Tensile strength at 2% strain ≥ (KN/m) | 5 | 7 | 9 | 10.5 | 30 | 30 | 30 |
| Longitudinal Tensile strength at 5% strain ≥ (KN/m) | 7 | 14 | 17 | 21 | 24 | 28 | 32 |
| Transverse Tensile strength at 5% strain ≥ (KN/m) | 7 | 14 | 17 | 21 | 24 | 28 | 32 |
| Width ≤ (m) | 6 | ||||||
Feature:
Increase the bearing capacity of the roadbed and foundation and prolong their service life.
Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.
Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense.
Prevent culverts from flawing.
Enhance earth slope and prevent water loss and soil erosion.
Decrease underlayer thickness and save manufacturing cost.
nhance the stability of side slope turf net patch to improve greening.
Replace wire netting used in mine as intermediate ceiling netting.
Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.
Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense.
Prevent culverts from flawing.
Enhance earth slope and prevent water loss and soil erosion.
Decrease underlayer thickness and save manufacturing cost.
nhance the stability of side slope turf net patch to improve greening.
Replace wire netting used in mine as intermediate ceiling netting.
 |  |

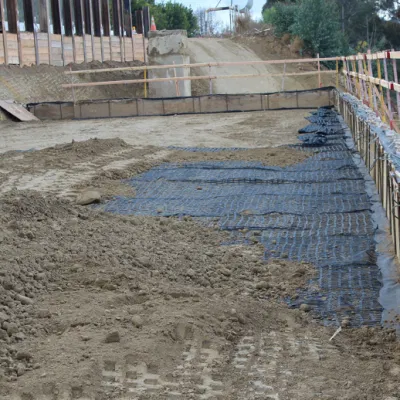

| Reinforced soil retaining wall, steep slope and the reinforcement and consolidation of the soft ground. | Ground treatment, reinforcement of the bridge abutment, reinforcement of the enbankment, reinforcement of the pile-net roadbed |
 |  |
| Protection of port, approach lane, seabeach, channel, river channel, dam and other irrigation projects. | Land reclamation, prevention and controlling of the desertification, and the composite protective structure in the landfill sites of urban garbage and waste. |
 |  |
| Coal mines, side slope protection of opencast mines, slope protection for the dumping site of the opencast mines,reinforcement to counter dam in the large tailing ponds of the metallurgical mines. | Construction of stuffing and package system of heavy soil engineering. |
Q : Are you a factory or trading company?
A : We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane etc with ISO9001.
certificate more than 15 years.
Q : Where is your factory located? How can I visit there?
A : Our facoty is located is No.10 Yuanshan Road High-tech Development Zone, Laiwu District, Jinan City China. You can take the
plan to Jinan Yaoqiang International Airport, then we can pick you up.
Q : Could you send the sample before order confirmation?
A : Yes, we'd love to send a free sample to you for an evaluation if you need.
Q : How about the delivery time?
A : General within 3-7 days after received the deposit.
Q : Can you produce the product according to customers' requirements?
A : Sure, we are professional manufacturer, OEM and ODM are both welcome.
