Basic Info.
Model NO.
Mining Geogrids
Classification
Polyester Geogrid
Material
Polyester
Application Field
Mining
Advanages
Flame Resistant and Antistatic
Coat
PVC
Process
Woven
Characteristic
High Tensile
Size
Customized Size
Length
Mining Length
Width
as Mining Underground
Weight
Light
OEM
Supported
Delivery Way
All Way
Tensile Strengh
High
Installation
Easy
Services
One-Stop Services
Technology
Most Advanced
Transport Package
Plastic Woven Bags
Specification
Customized
Trademark
Shandong Dajin
Origin
China
Production Capacity
10000sqm/Day
Product Description
Products Description
Mining Geogrids or Woven Geogrids are used for soft and hard rock mining, environmental engineering, roads and pavements, earthworks and foundations where extremely high tensile strength with low elongation is required.
High tensile geogrids are manufactured from high-modulus and high strength long polyester fibres which are warp-knitted, bundled together and coated with PVC, Bitumen, SBR or acrylic acid. Woven geogrids are preferred for a range of soil reinforcement applications, including slopes and retaining walls. High tensile mine geogrid for soft and hard rock mining applications.
Product Features
Product Features
Our high strength geogrids range from 20kN to 1200kN/m at strains of less than 10%. PET geogrids can also be manufactured in a range of aperture sizes to suit specific applications. They are a good substitute for traditional metal mesh, plastic mesh, steel-plastic mesh and other materials.
Advantages of Mining Grids:
High tesile strength,Low longation
Excellent creep resistance,High junction node strength
UV resistant,Corrosion resistant,Chemically and biologically inertFlexible and durable
Safe and easy to install Cost effective
Application Scope
Advantages of Mining Grids:
High tesile strength,Low longation
Excellent creep resistance,High junction node strength
UV resistant,Corrosion resistant,Chemically and biologically inertFlexible and durable
Safe and easy to install Cost effective
Application Scope

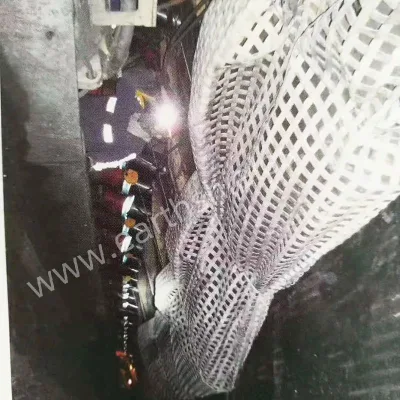

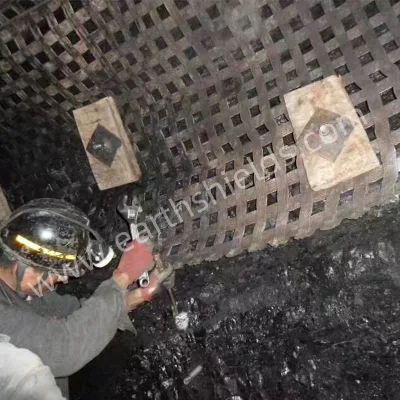

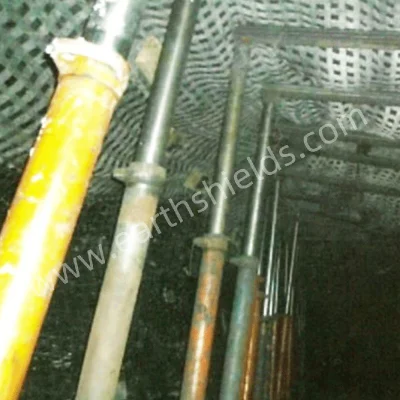

Soft and hard rock mining - long wall shield recovery screens, mine roof and rib control, reinforced highwalls, temporary and permanent tunnel support, heap leach and tailings Soil stabilisation Subgrade improvement Piled foundations Bridging voids and sinkholes in landfills Reinforced earth structures on poor foundations Road stabilisation, railways and pavement construction Note: These geogrids are not recommended for use as a road base, or other applications that require fill greater than 40mm deep.
Product Parameters
Product Parameters
| Item | HIGH STRENGTH POLYESTER GEOGRID FOR MINING | |||
| MODEL | PET100-100 | PET200-200 | PET300-300 | PET400-400 |
| | PET500-500 | PET600-600 | PET700-700 | PET800-800 |
| | PET900-900 | PET1000-1000 | PET1100-1100 | PET1200-1200 |
| SPEICIFICATION | PET50-50M | PET100-100M | PET200-200M | PET400-400M | PET600-600M | PET800-800M | PET1000-1000M | PET1200-1200M |
| Grid size | 25.4*25.4 or 50.8*50.8 or 76.2*76.2 | |||||||
| Breaking Strength | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 |
| 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | |
| Elongation at brek % | 25 | |||||||
| Resistance of products'surface < | 1.0*10 ^9 | |||||||
| Flameou quenching Time <=(S) | after flame | |||||||
| Width <=(m) | 6 | |||||||

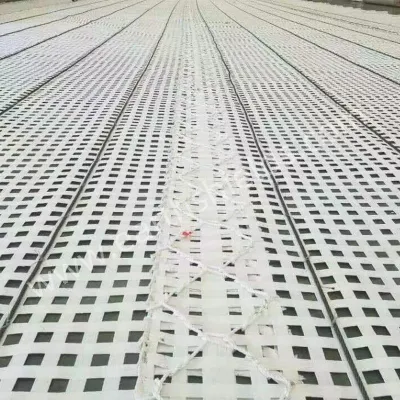

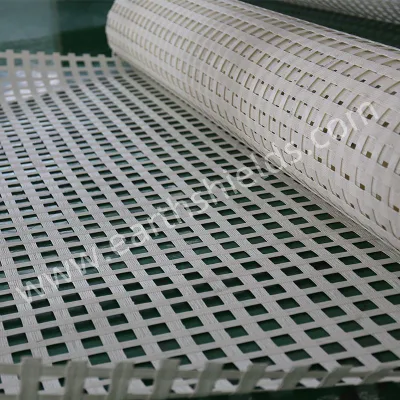

Production Show
