Basic Info.
Model NO.
juhe01
Stock
Stock
Model No.
PPGI Steel Coil
Grade
Carbon Steel
Feature
Strength of Extension
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Inspection
100%
Service
24*7
Special Use
Wear Resistant Steel
MOQ
1 Ton
Thickness
0.35-2mm
Width
1000-1250mm
Model Number
Q195 Q235 Q235B Q195A Q215A
Tolerance
5%
Product Name
Color Coated Coil
Surface
Ba/2b/No.1/No.3/No.4/8K/Hl/2D/1d
Coil Weight
3-5 Tons
Transport Package
1. in Bulk 2. in Hexagonal Bundles by Steel Strips
Specification
Q195 Q235 Q235B Q195A Q215A
Trademark
baisheng juhe
Origin
Shandong, China
HS Code
7219230000
Production Capacity
5000 Tons
Product Description
manufacturer quality prepai prepainted ppgl prime color coated steel coil strip aluminum roof gi steel coil / ppgi/
Galvanized steel is to prevent the steel plate surface from corrosion to extend its service life, in the steel plate surface coated with a layer of metal zinc, the zinc coated steel plate are called galvanized sheet.
According to the production and processing methods can be divided into the
1) hot dip galvanized steel. Thin plate in melting zinc bath, make its surface adhesion of a layer of zinc sheet. At present mainly adopts continuous galvanizing process, namely the continuous roll of steel plate in the melt zinc plating tank made of galvanized steel sheet;
(2) the alloying of galvanized steel. This kind of steel plate is made by hot dip method, but after the slot, immediately heated to a temperature of about 500 ºC, it make the generation of zinc and iron alloy membrane. This kind of galvanized sheet with good coating of sex and weldability;
| Technical Standard | EN10147/EN10142/DIN 17162/JIS G3302/ASTM A653 |
| Steel Grade | DC51D+Z, DC52D+Z, DC53D+Z, S280GD+Z, S350GD+Z, S550GD+Z, DC51D+AZ, DC52D+AZ, S250GD+AZ, S300GD+AZ, S350GD+AZ, S550GD+AZ, SECC,SECE, BLCE+Z, BLDE+Z, BUSDE+Z or Customer's Requirement |
| Base Steel | Hot dip galvanized steel, Hot dip galvalume steel, Electro galvanized steel |
| Thickness | 0.12-6.0mm |
| Width | 600-1500mm |
| Surface Color | RAL,wood grain pattern, camouflage pattern , stone pattern, matte pattern , high gloss pattern , flower pattern, etc |
| Quality | Approved by SGS,ISO |
| Coil Weight | 3-20metric ton per coil |
| Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement |
| Export market | Europe,Africa,Central Asia,Southeast Asia,Middle East,South America,North America, etc |

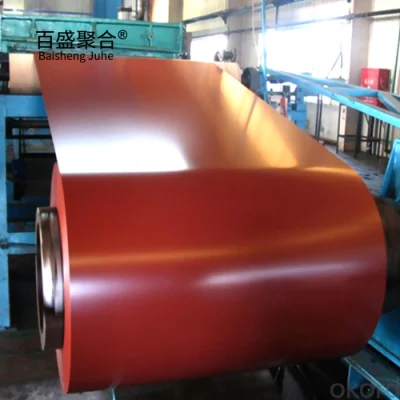

PPGI & PPGL (prepainted galvanized steel & prepainted galvalume steel) also known as pre-coated steel or color coated steel coil,It is a product made of hot-dip galvanized steel sheet, hot-dip galvalume steel sheet, electro galvanized steel sheet, etc. After surface pretreatment, one or several layers of organic coating are applied on the surface, and then baked and solidified. The color coated steel coil is light in weight, beautiful in appearance, and has good anti-corrosion performance, and can be directly processed. The color is generally divided into gray, sea blue, brick red, etc. It is mainly used in advertising, construction,decoration, home appliances, electrical appliances, Furniture industry and transportation industry. The coatings used for color coated steel coils are based on the environment in which the resin is selected, such as polyester silicon modified polyester,polyvinyl chloride plastisol, polyvinylidene chloride, and the like.
THE PRODUCTION PROCESS
Color-coated coils are light, beautiful and have good anti-corrosion properties, and can be directly processed. The colors are generally divided into gray-white, sea blue and brick red. They are mainly used in advertising, construction, household appliances, electrical appliances, furniture and transportation. Industry.
The color-coated steel strip using hot-dip galvanized steel strip as the base material is protected by the zinc layer, and the organic coating on the zinc layer plays a covering and protective role to prevent the steel strip from rusting, and the service life is longer than that of the galvanized strip, about approx. 1.5 times.
1. Good durability and corrosion resistance, long service life.
2. Has good heat resistance and is less prone to discoloration at high temperatures.
3. Has good heat reflectivity and weldability.
4. The two characteristics of strong durability and high cost performance make it widely used in industrial buildings, steel structures and civil construction.
2. Has good heat resistance and is less prone to discoloration at high temperatures.
3. Has good heat reflectivity and weldability.
4. The two characteristics of strong durability and high cost performance make it widely used in industrial buildings, steel structures and civil construction.
Galvanized Steel 0.18mm-20mm thick galvanized steel sheet 2mm thick Hot dip galvanized steel sizes galvanized sheet metal roll
| bse metal type | Grade | CHEMICAL COMPOSITION % | ||||
| C | Si | Mn | P | S | ||
| cold rolled steel sheet | DC51D+Z (St01Z, St02Z, St03Z) , DC51D+ZF | ≤0.10 | - | ≤0.50 | ≤0.035 | 0.03 |
| DC52D+Z (St04Z), DC52D+ZF | ≤0.08 | - | ≤0.45 | ≤0.030 | 0.03 | |
| DC53D+Z (St05Z), DC53D+ZF | ≤0.08 | - | ≤0.40 | ≤0.030 | 0.03 | |
| DC54D+Z (St06Z), DC54D+ZF | ≤0.01 | ≤0.10 | ≤0.30 | ≤0.025 | 0.03 | |
| DC56D+Z (St07Z), DC56D+ZF | ≤0.01 | ≤0.10 | ≤0.30 | ≤0.025 | 0.03 | |
| hot rolled steel sheet | DD51D+Z (St01ZR, St02ZR) | ≤0.10 | - | ≤0.50 | ≤0.035 | 0.03 |
| DD54D+Z (St06ZR) | ≤0.01 | ≤0.10 | ≤0.30 | ≤0.025 | 0.03 | |
Substrate Type
1.Hot-dip galvanized color coated steel sheet(prepainted galvanized steel sheet)The product obtained by coating an organic coating on a hot-dip galvanized steel sheet is a hot-dip galvanized color-coated plate. In addition to the protective effect of zinc, the hot-dip galvanized color-coated sheet also protects against rust and has a longer service life than hot-dip galvanized sheet;
2.Hot-dip aluminum-zinc color coated sheet(prepainted galvalume steel sheet)Hot-dip aluminum-zinc steel sheets can also be used as color-coated substrates (55% AI-Zn and 5% AI-Zn);
3.Electroplated zinc color coated sheet The electro-galvanized sheet is used as the substrate, and the product obtained by baking with the organic coating is an electrogalvanized color-coated plate. It has a beautiful appearance and excellent processing properties, and therefore can be mainly used for home appliances, audio, steel furniture, interior decoration, and the like.
Types of colour-coating: standard polyester, matt polyester, decoprint.
Coating Type Polyester (PE): Good adhesion, rich colors, wide range in formability and outdoor durability, medium chemical resistance, and low cost.
Silicon modified polyester(SMP): Good abrasion resistance and heat resistance, as well as good external durability andchalking resistance, gloss retention, general flexibility, and medium cost.
High Durability Polyester(HDP): Excellent color retention and anti-ultraviolet performance, excellent outdoor durability and anti-pulverization, good paint film adhesion, rich color, excellent cost performance.
Polyvinylidene Fluoride(PVDF): Excellent color retention and UV resistance, excellent outdoor durability and chalking resistance, excellent solvent resistance, good moldability, stain resistance, limited color, and highcost.
Application areas
product testing
(1)In the construction industry: to manufacture exterior and Interior products such as metal shingles, corrugated sheeting, sandwich panels, profiles, metallic ceilings, skirting boards, decorative panels inside heated and non- heated rooms, elevators, doors window shutters, shelves etc.
(2)In the automotive industry: to manufacture external and internal car body parts (car doors, car boots, oil filters, dashboards, windscreen wipers etc.
(3)In manufacture of home appliances, furniture, and consumer goods: metallic furniture, lighting equipment, shelves, radiators, сar doors, car boots etc.
Color Steel Sheets Prepainted PPGI Steel Coil
