Basic Info.
Packaging & Delivery
Product Description
Application:

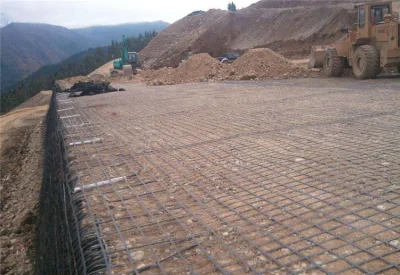

Plastic biaxial geogrid is suitable for different of dams and groundwork,side slope protection,the large flying field,parking lots,dock and so on.Features:
1. Increasing bearing capacity of road(ground) base and extending using of road(ground) base.
2. Prevent road(ground) surface subsidence or cracks,maintain the ground's beautiful and neatly.
3. Construction is convenient,time and energy saving,and shortening the construction period,reducing maintenance costs.
4. To prevent the culvert's cracks.
5. It can enhance slope and prevent soil erosion.
6. Reducing mat layer thickness and saving cost.
7. Afforest environment.
Technical Data :
| Item | PETG 30-30 | PETG 40-40 | PETG 60-60 | PETG 80-80 | PETG 100-100 | PETG 120-120 |
| Stretching ratio %≤ | 13 | 13 | 13 | 13 | 13 | 13 |
| Tensile strength TD | 30 | 40 | 60 | 80 | 100 | 120 |
| Tensile strength MD | 30 | 40 | 60 | 80 | 100 | 120 |
| Item | PETG 150-150 | PETG 200-200 | PETG 260-260 | PETG 300-300 | PETG 350-350 | PETG 400-400 |
| Stretching ratio %≤ | 13 | 13 | 13 | 13 | 13 | 13 |
| Tensile strength MD | 150 | 200 | 260 | 300 | 350 | 400 |
| Tensile strength MD | 150 | 200 | 260 | 300 | 350 | 400 |
| Item | PETG 500-500 | PETG 600-600 | PETG 700-700 | PETG 800-800 | PETG 900-900 | PETG 1000-1000 |
| Stretching ratio %≤ | 13 | 13 | 13 | 13 | 13 | 13 |
| Tensile strength TD | 500 | 600 | 700 | 800 | 900 | 1000 |
| Tensile strength MD | 500 | 600 | 700 | 800 | 900 | 1000 |
| Mesh size (mm) | 12.7*12.7 mm 25.4*25.4 mm 50*50 mm | |||||
| Width (m) | 3.95*50 m; 3.95*100 m; 5.8*50 m; 5.8*100 m or as per your request | |||||
| Property | Test Method | TGSG 15-15 | TGSG 20-20 | TGSG 30-30 | TGSG 40-40 | TGSG 50-50 | TGSG 60-60 | |
| Ultimate tensile strength (1) (KN/m) | MD | ASTMD 6637 | 15 | 20 | 30 | 40 | 50 | 60 |
| CD | 15 | 20 | 30 | 40 | 50 | 60 | ||
| Elongation at maximum load(%) | MD | 13 | ||||||
| CD | 13 | |||||||
| Tensile strength at 2% elongation (KN/m) | MD | 5 | 7.5 | 10.5 | 114 | 18 | 27.5 | |
| CD | 5 | 7.5 | 10.5 | 114 | 18 | 27.5 | ||
| Tensile strength at 5% elongation (KN/m) | MD | 7 | 14 | 21 | 28 | 35 | 48 | |
| CD | 7 | 14 | 21 | 24 | 35 | 48 | ||
| Minimum Carbon black | % | ASTMD 4218 | 2 | |||||
| Roll width(m) | 2/3.9/3.95/5/5.9/6 | |||||||
| Roll length(m) | 100/75/50 | |||||||
FAQ:
Q: Can I have a sample?
A: Yes, it is our pleasure to send free samples for checking quality and just undertake the freight charge by yourself.
Q:What is the lead time for samples?
A: Current sample need 1 day, customized samples need 5-7 days,
Q:What express do you use to send the samples?
A: We usually ship samples by DHL, TNT, FEDEX and UPS. It usually takes 3-5 days to arrive.
Q:What is the payment terms?
A: Our usual payment term is T/T and L/C . Others could be negotiated.
Q:Can you produce as my drawing?
A:Yes, we can customized for you based on your drawing or sizes.
Q:How about the delivery time?
A:Usually production time is 10-15 days. It will be decided by the order quantity.
