Basic Info.
Product Description
PET polyester geogrid used for road/ bridge construction biaxial geogrid price
Product describution
Warp Knitting Polyester Geogrid Introduction
The warp knitted polyester geogrid selects the excel in synthetic fiber as a raw material, uses the warp knitted oriented structure, latitude and longitude in the fabric to the yarn between not curving condition, the intersection unifies mutually with the excel fiber filament bundle, forms the reliable combining site, displays its mechanical properties fully.
Warp Knitting Polyester Geogrid Features
1. High tensile strength in both the warp and weft directions;
2.Low elongation;
3.Excellent temperature range;
4.Good anti-age and alkali-resistance
Wrap Knitting Polyester Geogrid - Standard Typre
| Performance/specification | PET-20-20 | PET-30-30 | PET-100-100 | PET-120-120 | PET-200-200 | PET-400-400 | PET-600-600 | |
| Stretching Ratio | 13% | |||||||
| Intensity(KN/m) | Longitudinal/Vertical | 20 | 30 | 100 | 120 | 200 | 400 | 600 |
| Crosswise/horizontal | 20 | 30 | 100 | 120 | 200 | 400 | 600 | |
| Grid(mm) | 12.7x12.7 25.4x25.4 | |||||||
| Breadth(m) | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | |
Wrap Knitting Polyester Geogrid - Heterogeneous Type
| Performance/specification | PET-50-30 | PET-60-35 | PET-80-30 | PET-80-50 | PET-100-85 | |
| Stretching Ratio | 13% | |||||
| Intensity(KN/m) | Longitudinal/Vertical | 50 | 60 | 80 | 80 | 100 |
| Crosswise/horizontal | 30 | 35 | 30 | 50 | 85 | |
| Grid(mm) | 12.7x12.7 25.4x25.4 | |||||
| Breadth(m) | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | |

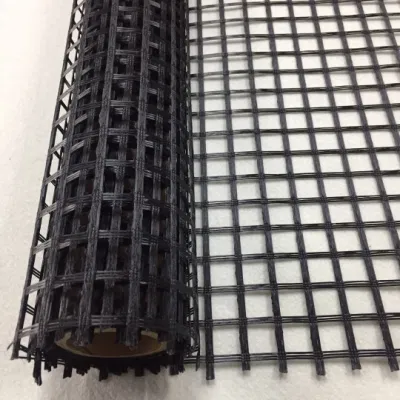

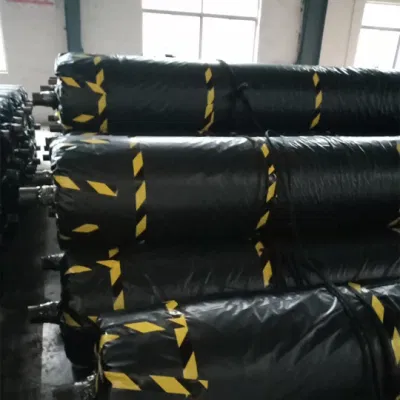

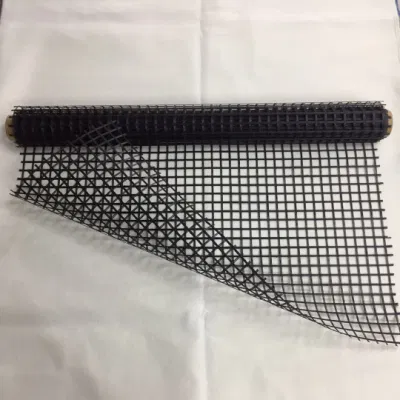

Photos show

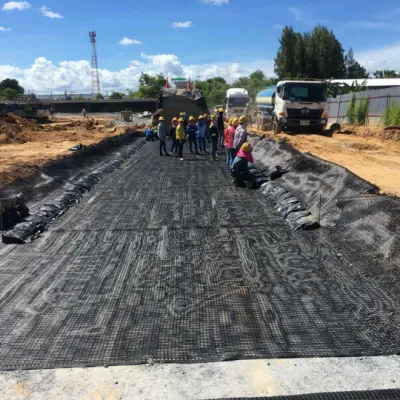

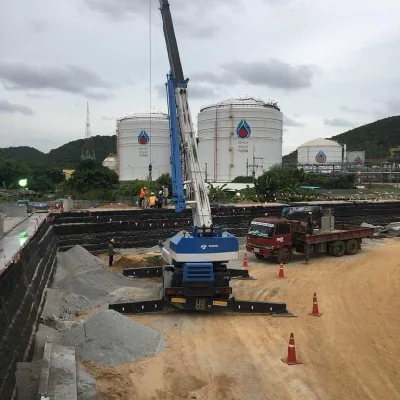

Application Range
1. Road surface reinforcement of road, railway and airport road;
2. Maintenance, reconstruction and widening of the old road surface;
3. Reinforcement of soil roadbed, irrigation channels and water dams.
Factory and production line
Certificate
FAQ
Contact information
