Basic Info.
Model NO.
geotextile
Certification
CE
Feature
Corrosion Resistant, Oxidation Resistance, Wear-resistant
Material
PET
Kind
Non-woven
Width
2m-6m (as Customrized)
Length
30m, 100m or Customized
Weight
100-800GSM
Standard
ASTM GM13
Geotextile Type
Non-Woven Geotextiles
Transport Package
Inner Pipe + Outside Woven Bag or Film
Specification
high-density polyethylene
Trademark
hongli
Origin
Shandong, China
HS Code
5602100000
Production Capacity
20000sqm/Day
Product Description

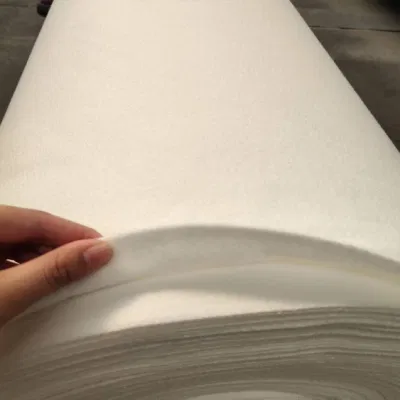

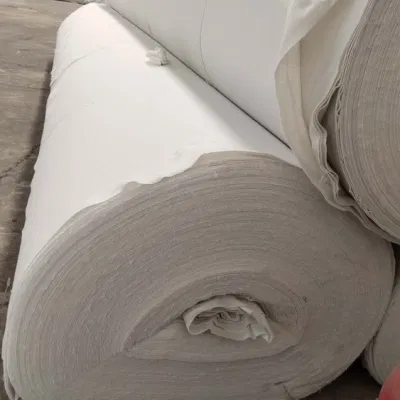

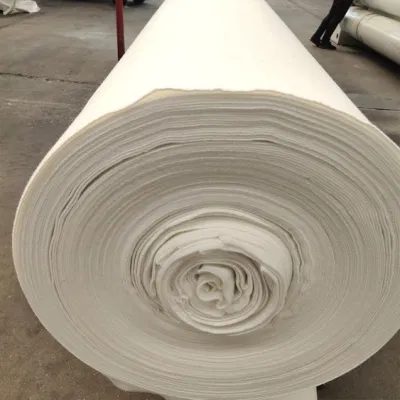

The staple fiber needled geotextile is composed of polyester or polypropylene staple fibers that are consolidated through the process of needling. These fibers are arranged in a three-dimensional structure, intertwining and interlocking with each other, resulting in excellent mechanical properties that are uniform in all directions.
Additionally, this geotextile exhibits superior vertical and horizontal drainage performance, exceptional extension capabilities, as well as high resistance to biological degradation, acids, alkalis, and chemical aging.
Furthermore, it possesses a wide range of aperture sizes with zigzag pore distribution which contributes to its outstanding permeability and filtration performance.
| Staple Fiber Needle Punched Non-woven Geotextile Technical Parameter (GB standard) | |||||||||
| Item | Standard Specification | ||||||||
| Vertical and horizontal fracture strength(KN/M) | 3 | 5 | 8 | 10 | 15 | 20 | 25 | 30 | 40 |
| Elongation corresponding to standard breaking strength (%) | 20-100 | ||||||||
| CBR Bursting strength(KN) | 0.6 | 1 | 1.4 | 1.8 | 2.5 | 3.2 | 4 | 5.5 | 7 |
| Deviation rate of weight per unit area(%) | ±5 | ||||||||
| Vertical and horizontal tearing strength(KN) | 0.10 | 0.15 | 0.20 | 0.25 | 0.40 | 0.50 | 0.65 | 0.80 | 1.00 |
| Width deviation rate(%) | -0.5 | ||||||||
| Thickness deviation rate(%) | ±10 | ||||||||
| Vertical permeability coefficient(cm/s) | k*(0.001-0.1) Ps: k=1.0-9.9 | ||||||||
| Acid and alkali resistance(% ≥) | 80 | ||||||||
| Antioxidant performance(% ≥) | 80 | ||||||||
| UV resistance (% ≥) | 80 | ||||||||
Product features:
1) Enhanced strength is achieved through the utilization of plastic fibers, enabling the product to maintain adequate tensile strength and elongation in both wet and dry conditions.
2) Exceptional corrosion resistance ensures long-term durability when exposed to various pH levels in soil and water.
3) The product exhibits excellent water permeability due to the presence of gaps between fibers, facilitating efficient water seepage.
4) Superior antimicrobial properties safeguard against damage caused by microorganisms and insects.
5) The lightweight and flexible nature of this material allows for convenient transportation, installation, and construction processes. 6) A wide range of specifications are available, including widths up to 7 meters. The mass per unit area ranges from 100-1000g/m2.
1) Enhanced strength is achieved through the utilization of plastic fibers, enabling the product to maintain adequate tensile strength and elongation in both wet and dry conditions.
2) Exceptional corrosion resistance ensures long-term durability when exposed to various pH levels in soil and water.
3) The product exhibits excellent water permeability due to the presence of gaps between fibers, facilitating efficient water seepage.
4) Superior antimicrobial properties safeguard against damage caused by microorganisms and insects.
5) The lightweight and flexible nature of this material allows for convenient transportation, installation, and construction processes. 6) A wide range of specifications are available, including widths up to 7 meters. The mass per unit area ranges from 100-1000g/m2.
Scope of application:
1) Pavement maintenance of highway and bridge projects. Reinforced; Old road retrofit protection, reinforcement and prevent reflection cracks.
2) Foundation treatment, subgrade drainage, frost heave soil treatment and salt prevention, slope prevention and erosion prevention of high-speed railways, expressways and high-grade highways, applied to reinforced layer, isolation layer and cement stabilization layer: tunnel protection, isolation and drainage.
3) Reinforcement, isolation and protection of the bottom, slope and sealing field in environmental protection projects such as landfill disposal sites, oil storage tanks and ash and slag fields.
4) Water conservancy dam and slope protection filtration: water conservancy channels, river management, artificial lake isolation, seepage prevention.
5) Foundation isolation, reverse filtration, drainage, slope, retaining wall and pavement reinforcement, drainage of roads, railways, roads, buildings, airport runways.
6) Soft foundation treatment of port engineering, reinforcement and drainage of beach embankment, harbor pier and breakwater.
1) Pavement maintenance of highway and bridge projects. Reinforced; Old road retrofit protection, reinforcement and prevent reflection cracks.
2) Foundation treatment, subgrade drainage, frost heave soil treatment and salt prevention, slope prevention and erosion prevention of high-speed railways, expressways and high-grade highways, applied to reinforced layer, isolation layer and cement stabilization layer: tunnel protection, isolation and drainage.
3) Reinforcement, isolation and protection of the bottom, slope and sealing field in environmental protection projects such as landfill disposal sites, oil storage tanks and ash and slag fields.
4) Water conservancy dam and slope protection filtration: water conservancy channels, river management, artificial lake isolation, seepage prevention.
5) Foundation isolation, reverse filtration, drainage, slope, retaining wall and pavement reinforcement, drainage of roads, railways, roads, buildings, airport runways.
6) Soft foundation treatment of port engineering, reinforcement and drainage of beach embankment, harbor pier and breakwater.
