Basic Info.
Model NO.
S
Heating Type
Hot Oil Circulation,Gas
Power
10-1000kw
Final Products
Non Woven Fabric
Color
Customer Request
Applicable Industries
Building Material Shops, Manufacturing Plant
Speed
150m/Min
Weight
500t
Dimension(L*W*H)
25*18*13m
Voltage
220/360V
After-Sales Service Provided
Free Spare Parts, Video Technical Support
Width
1600mm/2400mm/3200mm
Product Name

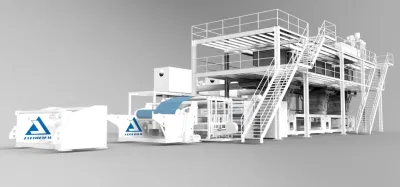

PP Spunbond Nonwoven Fabric Machine
Technology
Spunbond
Trademark
AL
Origin
Zhejiang, China
Production Capacity
5-8-10t/Day
Product Description
Specification
| Setting Information | |
| product name | Non woven fabric making machine |
| rated voltage | 220V/360V |
| Application | Disposable Nonwoven Fabric Product |
| Capacity | 5/8/10/12T/DAY |
| GSM | 9-250 g/m2 |
| Speed | 150m/min |
| Raw material | PP Chips |
| Heating type | Hot Oil Circulation,Electricity,Gas |
Main extruder
Extruder is used for melting and extruding PP Chips, master batches and some additives, such as antioxidant, anti-pilling agent and flame retardant agent.
Extruder machine consists of chip inlet, automatic temperature control, cooling device and alarming device.
Main drive adopts A.C. frequency control. The temperature control device adopts closed circuit temperature meter, solid relay and pt100 platinum resistance.
Stretching device
Stretching device is used for drawing filament( passing from spinneret ) being into longer and thinner.
1.Nominal working width: 1910mm
2:Quenching air volume: 10,000m3/h
3:Pressure: approx. 5000Pa
| Model | Working width | Annual Output | Embossing Pattern |
| AL-1600S | 1600mm | 5T/Day | Diamond, Oval,Cross,Line |
| AL-2400S | 2400mm | 8T/Day | Diamond, Oval,Cross,Line |
| AL-3200S | 3200mm | 10T/Day | Diamond, Oval,Cross,Line |
