Basic Info.
Model NO.
Plastic/PET/Fiberglass
Raw Material
PP
Width
1-6m
Length
50m,100m
Mesh Size (mm)
12.7*12.7mm. 25.4*25.4mm
Certificate
CE/ISO9001/BV
Transport Package
Black PE Film or Woven Bags for Outside Packag
Specification
15-200KN
Trademark
OBOR
Origin
Taian, Shandong, China
HS Code
3920109090
Production Capacity
50000m2/Day
Product Description

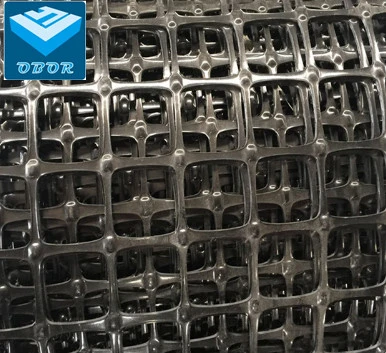

Steel Plastic Geogrid
High-strength steel-plastic biaxial( vertical and horizontal) geogrid
Features:
·Steel Plastic Geogrid has breakthrough strength compared to the traditional geogrid:
·When the bidirectional strength is used on the surface of the plastic, the rid is pressed into rough pattern to reinforce the roughness of geogrid surface, increase the friction factor between the geogrid and soil.
·This geogrid is low cost and easy to construct, easy to pave, lap, locate, avoid the repetition and cross, so shorten the construction period obviously.

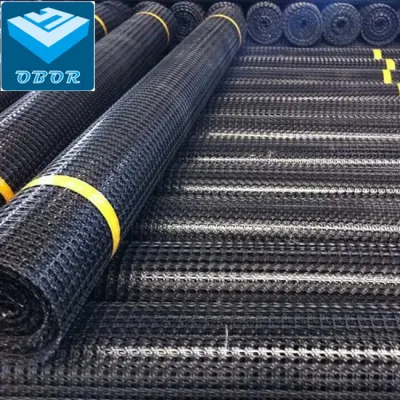

Packing and Shipping
Company Information
· OBOR is a leader in geosynthetic products manufacturing with registered capital more than $10 million and factory area of 100,000 square meters. The main varieties of products are HDPE / LDPE pond liner, Plastic Grass Grids, Woven/ nonwoven Geotextile, Drainage Board, Composite Membrane and Textile, Plastic netting, 3D Planting Geomat, and other geosynthetic products.
· The company has imported advanced testing equipment from abroad, with first-class technology and first-class testing method, to provide customers with high-quality and safe products and services.
· The company attaches great importance to the control of product quality, continuous improving production process and customer service. Our product performance testing and analysis are in full compliance with international quality testing standards, providing customers with quality products in strict implementation and higher standards to better meet customer's needs.
Professional geosynthetics manufacturer
Shandong OBOR New Materials Co., Ltd
Description:

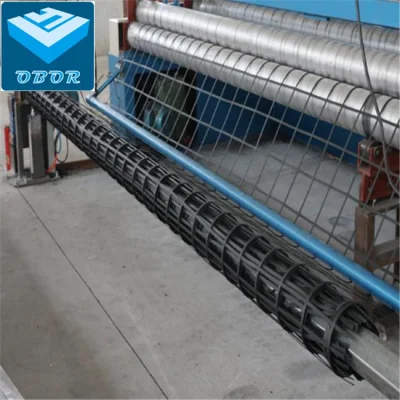

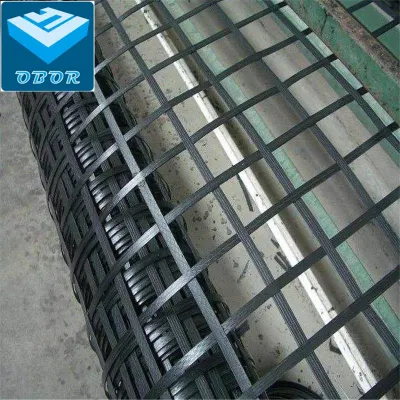

·The steel plastic composite geogrid uses high tensile steel wire(or other fiber) specially handled and polyethylene (P.E) with other assistants. Then squeeze it out and make it become composite high-strength anti-pull belt and the horizontally using this single belt and welding the joint using a special welding technology to molding is reinforcement geogrid.
· The products are applied widely in railway, bridge, dock, retaining wall, dam to reinforce the soft soil's and to resist the road surface's crack.
Technical Parameter :
High-strength steel plastic uniaxial (vertical) geogrid
·The steel plastic composite geogrid uses high tensile steel wire(or other fiber) specially handled and polyethylene (P.E) with other assistants. Then squeeze it out and make it become composite high-strength anti-pull belt and the horizontally using this single belt and welding the joint using a special welding technology to molding is reinforcement geogrid.
· The products are applied widely in railway, bridge, dock, retaining wall, dam to reinforce the soft soil's and to resist the road surface's crack.
Technical Parameter :
High-strength steel plastic uniaxial (vertical) geogrid
| Project | TGDG30 | TGDG50 | TGDG80 | TGDG100 | TGDG120 | TGDG150 |
| Vertically Limited-Rally (KN/m)≥ | 30 | 50 | 80 | 100 | 120 | 150 |
| Vertically Limited elongation ratio(%)≤ | 3 | 3 | 3 | 3 | 3 | 3 |
| Elongation at 1% of the Rally (KN/m)≥ | 23 | 38 | 63 | 81 | 98 | 125 |
High-strength steel-plastic biaxial( vertical and horizontal) geogrid
| Project | TGSG30-30 | TGSG45-45 | TGSG60-60 | TGSG80-80 | TGSG100-100 | TGSG120-120 |
| Two-way Limit-Rally (KN/m)≥ | 30 | 45 | 60 | 80 | 100 | 120 |
| Two-way Limit elongation (%)≤ | 3 | 3 | 3 | 3 | 3 | 3 |
| Elongation at 1% of the Rally (KN/m)≥ | 23 | 36 | 48 | 63 | 81 | 98 |
Features:
·Steel Plastic Geogrid has breakthrough strength compared to the traditional geogrid:
·When the bidirectional strength is used on the surface of the plastic, the rid is pressed into rough pattern to reinforce the roughness of geogrid surface, increase the friction factor between the geogrid and soil.
·This geogrid is low cost and easy to construct, easy to pave, lap, locate, avoid the repetition and cross, so shorten the construction period obviously.

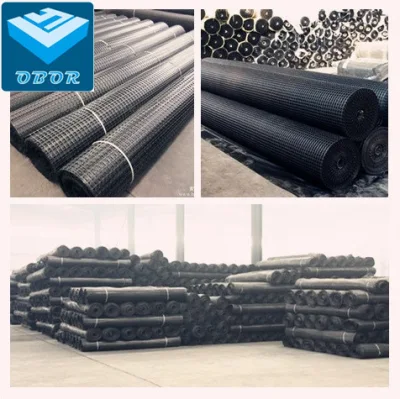

Packing and Shipping
Company Information
· OBOR is a leader in geosynthetic products manufacturing with registered capital more than $10 million and factory area of 100,000 square meters. The main varieties of products are HDPE / LDPE pond liner, Plastic Grass Grids, Woven/ nonwoven Geotextile, Drainage Board, Composite Membrane and Textile, Plastic netting, 3D Planting Geomat, and other geosynthetic products.
· The company has imported advanced testing equipment from abroad, with first-class technology and first-class testing method, to provide customers with high-quality and safe products and services.
· The company attaches great importance to the control of product quality, continuous improving production process and customer service. Our product performance testing and analysis are in full compliance with international quality testing standards, providing customers with quality products in strict implementation and higher standards to better meet customer's needs.
Professional geosynthetics manufacturer
Shandong OBOR New Materials Co., Ltd
