Basic Info.
Model NO.
WTGCL4000
Delivery
5days to 15 Days
MOQ
1000m2
Rll Width
2m~6m
Thinckness
6mm~10mm
Certificate
Ce, ISO, SGS
Roll Length
30m
Service
Free Sample
Weight
5kg/M2
Standard
ASTM
Product Name
Bentonite Geosynthetics Clay Liner Gcl
Keywords
Geosynthetic Clay Liner, Gcl
Fluid Loss
Less 18ml
Transport Package
Rolls
Specification
6m*30m
Trademark
Wantong
Origin
Taian City, Shandong Province
HS Code
68159990
Production Capacity
50000square/Day
Product Description

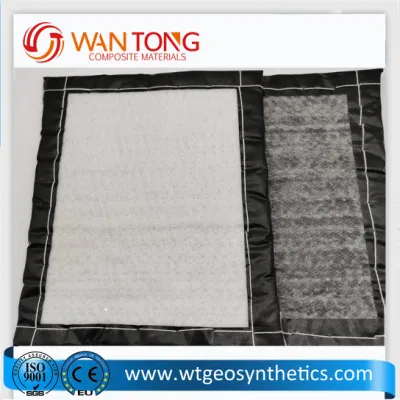

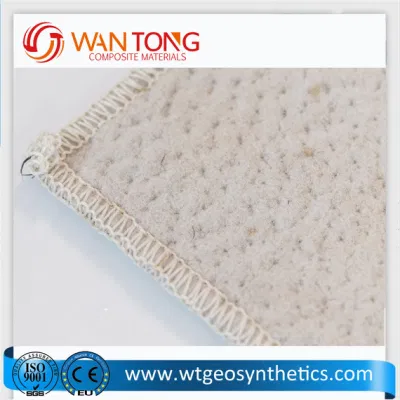

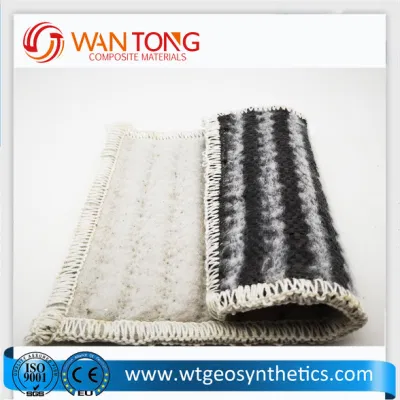

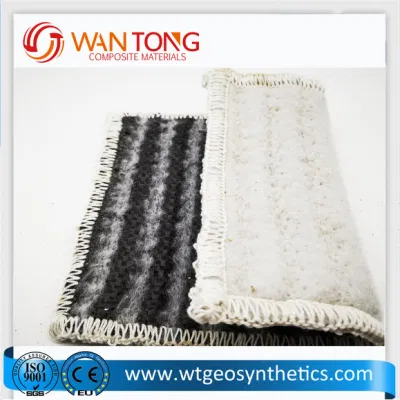

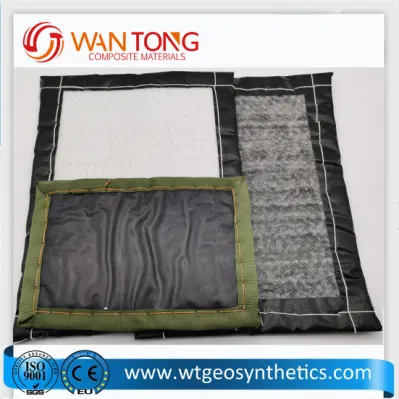

The description of 4000G/M2 Geosynthetics Clay Liner Used in Landfill
Geoclay liner/Geotextile Bentonite Clay Liner/impermeable swellable GCL are high performance needle punched environmental reinforced composites which combine two durable geotextile outer layers with a uniform core of natural sodium bentonite clay to form a hydraulic barrier. Fibers from the non-woven geotextile are needle punched through the layer of bentonite and incorporated into the other geotextile (either a woven or non-woven).
The speficication of 4000G/M2 Geosynthetics Clay Liner Used in Landfill
| Testing Item | Testing Methods | Technical indexes |
| Expansion Coefficient | ASTM D 5890 | ≥22ml/2g |
| Fluid Loss | ASTM D 5891 | ≤18ml |
| Bentonite quantity in unit area | ASTM D 5893 | ≥4.8Kg/m2 |
| Tension Strength | ASTM D 4632 | ≥400N |
| Peeling Strength | ASTM D 4632 | ≥75N |
| Indicating flow | ASTM D 5887 | ≤1×10-8 m3 /m2 /sec |
| Penetrability | ASTM D 5887 | ≤5×10-9 cm/sec |
| Tension strength after wetting | ASTM D 5321 | ≥24Kpa typical |
The advantage of 4000G/M2 Geosynthetics Clay Liner Used in Landfill
The soil has the characteristics of water swelling. Generally, when the calcium-based bentonite expands, its expansion is only about 3 times its own volume, while the sodium-based bentonite absorbs five times its own weight when it meets water, and the volume expands to the original 15-17. More than double, the sodium bentonite is locked in the middle of two layers of geosynthetic materials to protect and strengthen, so that GCL has a certain overall shear strength.
The Usage of 4000G/M2 Geosynthetics Clay Liner Used in Landfill
solar panel/Impermeable Material/5Kg GCL for Raiway Waterproofing is used for anti-leakage of artificial lake waterscape, landfill, underground garage, roof garden, pool, oil depot and chemical yard.
The Workshop and production line of 4000G/M2 Geosynthetics Clay Liner Used in Landfill
The Packaging of 4000G/M2 Geosynthetics Clay Liner Used in Landfill
The information of our company
Tai'an Wantong Composite Material Co., Ltd. established in 2 0 1 5, is a professional manufacturer engaged in the research, development, production, sale and service of geogrid, geotextile, geomembrane, geocell, geosynthetic clay liner, geomat, geonet,drainage board,composite drainage net, geobag,non woven fabric, tree watering bag and fiberglass chopped strand mat.
we have obtained I S O 9 0 0 1 certificate. Our products are widely applied in many fields, such as road, highway, airway, coal mine, water and soil conservation, water conservancy and basic construction.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Vietnam,Thailand, Indonesia, Ukraine, Russia, Colombia, Canada, Georgia, Romania, and Yemen We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements
Tai'an Wantong Composite Material Co., Ltd. established in 2 0 1 5, is a professional manufacturer engaged in the research, development, production, sale and service of geogrid, geotextile, geomembrane, geocell, geosynthetic clay liner, geomat, geonet,drainage board,composite drainage net, geobag,non woven fabric, tree watering bag and fiberglass chopped strand mat.
we have obtained I S O 9 0 0 1 certificate. Our products are widely applied in many fields, such as road, highway, airway, coal mine, water and soil conservation, water conservancy and basic construction.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Vietnam,Thailand, Indonesia, Ukraine, Russia, Colombia, Canada, Georgia, Romania, and Yemen We also welcome O E M and O D M orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements
The FAQ of our company
1. How long have you been in the Geo-synthetics and fiberglass product industry?
----Since 2007 years.
2. Are you manufacturer or trad company
-----We are the manufacture specialized in Geo-synthetics and fiberglass product, in Taian city, ShanDong Province, China.
3.How much the transportation freight of sample?
------The freight depends on the weight and packing size and destination from here to your location.
4. How long can I expect to get the sample?
------The samples will be ready for delivery in 3-5days. The samples will be sent via international express such as DHL, TNT, and EMS would be arrived within 3-5 days.
5. Can we have our LOGO or company name to be printed on your products or package?
------Sure, Your LOGO could be printed on your product by Hot stamping, Printing, Embossing, UV coating, Silk-screen Printing or Sticker.
6. Do you have stock?
------Most of product are under regular production, we can make delivery immediately if we the specific one in stock.
The main product of our company
| Geogrid | PP plastic biaxial geogrid |
| PP plastic uniaxial geogrid | |
| HDPE plastica uniaxial geogrid | |
| Fiberglass geogrid | |
| Polyester geogrid | |
| Steel composite plastic geogrid | |
| Geotextile | Non woven PP geotextile |
| Non woven PET geotextile | |
| Woven geotextile | |
| Fiberglass product | Fiberglass chopped strand mat |
| Fiberglass woven roving | |
| Geomembrane | HDPE geomembrane |
| LDPE geomembrane | |
| Non woven fabric | PP spunbond non woven fabric |
| PET spunbond non woven fabric | |
| Watering bags | 20 gallon PVC watering bags |
| 15 gallon PVC watering bags | |
| 27 gallon PVC watering bags | |
| Geocell | |
| Geonet | |
| 3D Geomat | |
| Grass grid | |
| Geosynthetic clay liners(GCL) | |
| Drainage board | |
| weed control mat (ground cover) |
The contact information of us
