Factory Price Biaxial PP/HDPE Geogrid Prices

Get the best biaxial PP/HDPE geogrids at factory prices. We are manufacturers, offering competitive prices and high-quality products.
Request a Quote


Basic Info.

Model NO.
Polyester Geogrid
The Elongation Ratio
Not More Than 10%
Mesh Size (mm)
12.7*12.7 / 25.4*25.4 /40*40
Raw Material
Europe, Africa, Asia, Middle East etc.
Free Samples
Transport Package
Black PE Film or Woven Bags for Outside Packag
12.7*12.7 / 25.4*25.4 /40*40
HS Code
Production Capacity

Product Description

PP PE Biaxial Plastic Geogrid

Factory Price Biaxial PP/HDPE Geogrid Prices
Biaxial geogrid is made of high molecular polymer through extrusion, forming and punching before longitudinal and lateral stretching. This material has considerable tensile strength in longitudinal and lateral directions. This chain structure can effectively bear and diffuse forces on soil and is applicable to large area permanent load bearing foundation as a reinforcement material.

Factory Price Biaxial PP/HDPE Geogrid Prices
    1. Increase the bearing capacity of the roadbed and foundation and prolong their service life.
    2. Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.
    3. Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense.
    4. Prevent culverts from flawing.
    5. Enhance earth slope and prevent water loss and soil erosion.
    6. Decrease underlayer thickness and save manufacturing cost.
    7. Enhance the stability of side slope turf net patch to improve greening.
    8. Replace wire netting used in mine as intermediate ceiling netting.

Factory Price Biaxial PP/HDPE Geogrid Prices
Factory Price Biaxial PP/HDPE Geogrid Prices
Factory Price Biaxial PP/HDPE Geogrid Prices
MODEL TGSG15-15 TGSG20-20 TGSG30-30 TGSG40-40 TGSG45-45 TGSG50-50
Mass per
Unit Area  (g/m2)
300±30 330±30 400±40 500±50 550±50 600±50
Width  (m) 1-6m
Tensile Yield Force per Linear Meter  (KN/m)  (MD) 15 20 30 40 45 50
Tensile Yield Force per Linear Meter(KN/m)  (CD) 15 20 30 40 45 50
(MD)Yield Elongation  (%)≤ 15
(CD)Yield Elongation (%)≤ 13
Strength at 2% Strain,  (KN/m)≥(MD) 5 8 11 15 18 19
Strength at 2% Strain(KN/m) ≥(CD) 7 10 13 17 20 24
Strength at 5% Strain (KN/m) ≥(MD) 8 15 24 30 35 39
Strength at 5% Strain  (KN/m) ≥(CD) 10 16 25 31 36 40
Mesh Size (mm) 30*30 36*38 34*36 34*36 40*40 40*40
Remark Special specifications can be customized according to the contract.

Factory Price Biaxial PP/HDPE Geogrid PricesApplication:
Geogrids focus almost entirely on reinforcement applications, although separation may be a function.  The following are examples of a few applications.
Slope Reinforcement- embankments over soft soils, extra-steep earthwork slopes, landfill liner systems, and industrial and contaminated land reclamation

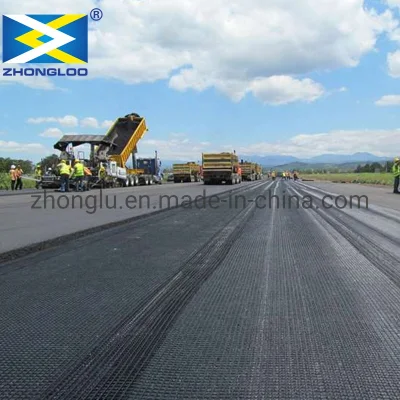

Base Reinforcement- foundations of roadbeds, parking lots, railroad tracks beds, airports runways, permanent unpaved roads, construction haul roads
Wall Reinforcement- retaining walls, sea walls, airport noise barriers, and bridge supports
Berm Reinforcement - spillway channels for earthen dams, levees, and waste contaminated ponds, banks for earthen canals and waterways.

Factory Price Biaxial PP/HDPE Geogrid Prices
Factory Price Biaxial PP/HDPE Geogrid Prices

Company Information
Anhui Zhonglu Engineering Materials Co., Ltd., located in the Taohua Industrial Park, Economic Development District in Hefei, Anhui Province,with a registered capital of 52 million yuan, and our annual production of various types of geosynthetics is 60 million square meters. We are a production, research and development, sales for the integration of high-tech enterprises,that included geotextile, geomembrane, composite geomembrane, geogrid, geocell, warp knitted composite material, geonet, waterproof board, drain board and other new geosynthetics . We follow the principle of " taking science and technology innovation as the driving force, to customer satisfaction as the goal" and dedicate to transportation construction,water conservancy,environmental protection and landscape garden ,municipal large engineering related products research and development,production technology and applications.Our target is to become the best new geosynthetics quality production supplier in the world.
Factory Price Biaxial PP/HDPE Geogrid Prices
Factory Price Biaxial PP/HDPE Geogrid Prices
Factory Price Biaxial PP/HDPE Geogrid Prices

 Factory Price Biaxial PP/HDPE Geogrid Prices
Q : Are you a factory or trading company?
A : We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane etc with ISO9001 certificate more than 15 years.

Q: What is your MOQ?
A: As customers' requests.

Q: why choose us?
A: We are a professional manufacturer with competitive price, good quality and fast delivery time.

Q: How to buy the product?
A: Send email to me, we will reply to you within one day.

Q: Can you make special Design and logo on product?
A: Yes, very easy.
