Basic Info.
Model NO.
TKT
Material
PET
Kind
Non-woven
Weight
100-1000g/Sqm
Length
50-300m or Follow Clients Request
Width
1m-7m or Follow Clients Demand
Application
Road Paving, Railway
Transport Package
Roll Package
Specification
1-6m
Trademark
TK
Origin
China
HS Code
5603949090
Production Capacity
3, 000, 000 Square Meters Per Day
Product Description
Geotextiles, also known as geofabrics, are essential materials in modern engineering projects, particularly in civil engineering and land reclamation. They are textiles that are designed to withstand the forces of nature and the demands of human activity, while also being environmentally friendly.

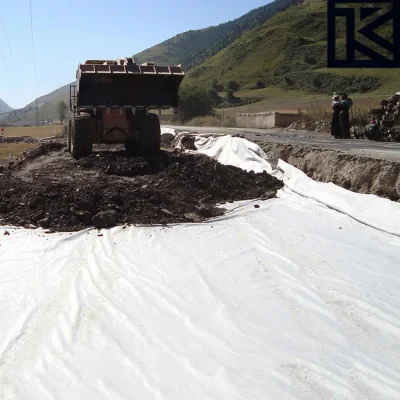

Geotextiles have a wide range of applications, including road construction, dams and levees, riverbank protection, and erosion control. They are used to separate and stabilize layers of soil, prevent erosion, and improve the strength and durability of structures.
Features:
1,high strength, due to the use of plastic fiber, in the dry and wet state can maintain sufficient strength and elongation.
2,corrosion resistance, in different pH soil and water for a long time corrosion resistance.
3,good water permeability there is a gap between the fibers, so there is good water permeability.
4,good antimicrobial resistance to microorganisms, moth are not damaged.
5,construction is convenient, because the material is light and soft, it is convenient to transport, lay and construction.
1,high strength, due to the use of plastic fiber, in the dry and wet state can maintain sufficient strength and elongation.
2,corrosion resistance, in different pH soil and water for a long time corrosion resistance.
3,good water permeability there is a gap between the fibers, so there is good water permeability.
4,good antimicrobial resistance to microorganisms, moth are not damaged.
5,construction is convenient, because the material is light and soft, it is convenient to transport, lay and construction.
| Item | Unit | Performance Minimum | Typical Performance |
| Mass | g/m2 | 800 | 803 |
| Thickness | ≥ mm | 5.5 | 7.7 |
| Breaking strength MD | KN/m | 40 | 45.9 |
| Breaking strength CMD | KN/m | 40 | 46.2 |
| Elongation at break MD | % | 40-80 | 68 |
| Elongation at break CMD | % | 40-80 | 70 |
| CBR puncture resistance | KN | 7.9 | 8.26 |
| Tear strength MD | KN | 1.1 | 1.11 |
| Tear strength CMD | KN | 1.1 | 1.16 |
| Equivalent aperture O90 (O95) | mm | 0.05-0.2 | 0.12 |
| Vertical permeability coefficient | cm/s | K x (10-1 ~ 10-3) K=1.0-9.9 | 4.37 x 10-1 |
| Standard roll width | m | 6 | 6 |
| Standard roll length | m | 50 | 50 |
Purpose:
1. QuarantineUse geotextiles to isolate (soil and sand, soil and concrete, etc.). So that two or more materials do not lose, not mixed.
2. Filtration (reverse filtration)When the water flows from the fine soil layer to the coarse soil layer, the good air permeability and water permeability of the geotextile are used to make the water flow through, and effectively intercept the soil particles, fine sand, small stone, etc., in order to maintain the stability of the water and soil engineering.
3. Drainage
Geotextile has good water conduction performance, it can form a drainage channel inside the soil body, and the excess liquid and gas in the soil structure are discharged.4: 4. Reinforcement
The use of geotextile to enhance the tensile strength and deformation resistance of soil, enhance the stability of building structure, and improve the quality of soil.
1. QuarantineUse geotextiles to isolate (soil and sand, soil and concrete, etc.). So that two or more materials do not lose, not mixed.
2. Filtration (reverse filtration)When the water flows from the fine soil layer to the coarse soil layer, the good air permeability and water permeability of the geotextile are used to make the water flow through, and effectively intercept the soil particles, fine sand, small stone, etc., in order to maintain the stability of the water and soil engineering.
3. Drainage
Geotextile has good water conduction performance, it can form a drainage channel inside the soil body, and the excess liquid and gas in the soil structure are discharged.4: 4. Reinforcement
The use of geotextile to enhance the tensile strength and deformation resistance of soil, enhance the stability of building structure, and improve the quality of soil.
