Basic Info.
Model NO.
HDPE Geomembrane
Thickness
0.5mm-3.0mm
Transport Package
Woven Bag
Specification
roll size 5.8m*50m
Trademark
Dajin
Origin
Shandong China
HS Code
3920109090
Production Capacity
100000/Month
Product Description
Product Description:
ASTM HDPE Geomembrane Plastic Cover Liner
Product Parameter:
Work Shop:
Geomembrane is composed of High Density Polyethylene (High Density Polyethylene) add carbon black and antioxidant mixed in certain proportion, the three-lay co-extrusion blow molding production process.Both sides are flat, smooth.
Company Profile:
Shandong Dajin Geosynthetics Co.,LTD. is located in Jinan City, Shandong, China, which is a comprehensive service provider as well as solution provider integrating design, production and construction.
The products provided by Dajin include geotextile, geomembrane, composite geomembrane warp-knitted geogrid, glass fiber geogrid, plastic geogrid, steel-plastic geogrid, mining geogrid, high-strength mining polyester fiber mesh, geocell and other geosynthetics. Dajin possesses three production bases and a complete QC system, and our product quality, technology and equipment lie in top of the industry. Our goal is to become a world-class company dedicated to providing our customers with comprehensive, reliable and high-quality services and solutions.
Our advantages
Application:

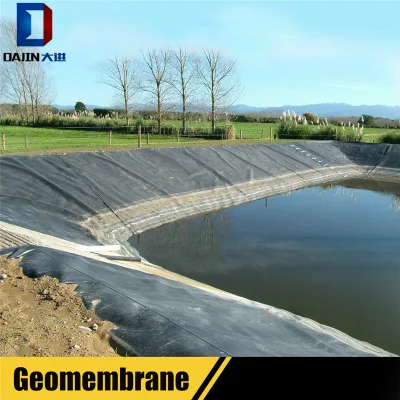

1). Using the geomembrane anti-seepage feature, HDPE Geomembrane liners can be used as fish ponds, shrimp pond, and other aquaculture.
2).Sanitation Projects: Domestic garbage landfill, sewage treatment, poisonous & harmful substance treatment
3).Mining Industry & Chemical Industry: Anti-seepage of oil tank
in chemical plant, refinery plant, petrol station, chemical,inner liner of settling tank, secondary liner etc
4).Water conservancy Projects: Anti-seepage, leaking stoppage and
reinforce of river/lake/basin/dam, anti-seepage of water channel,
vertical core wall, lake etc.
FAQ:
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock,
it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,
balance before shipment.
If you have another question, please feel free to contact us at any time.
ASTM HDPE Geomembrane Plastic Cover Liner
| Product Name: | High Density Polyethylene Geomembrane |
| Thickness: | 0.18mm-2.0mm |
| Length : | 50m/roll,100m/roll,150m/roll or follow your request |
| width: | 1m-6m or follow customers' demand |
| Surface | Both side smooth/both side textured one side textured one side smooth, or as your request |
| Color: | White,Black,Green,Blue,mainly black |
| Material: | HDPE,LDPE,LLDPE |
| Certification: | ISO9001:2008, |
| Standard: | ASTM GRI-GM13 |
| ASTM and China standard | ||||
| project | reference standard | ASTM standand | CJ/T234-2006 | |
| yield strength N/mm | MD | D6693-D6693M-04(2015)e1 | ≥30 | ≥29 |
| CD | ≥30 | ≥29 | ||
| break strength N/mm | MD | ≥57 | ≥53 | |
| CD | ≥57 | ≥53 | ||
| yield elongation,% | MD | ≥13 | ≥12 | |
| CD | ≥13 | ≥12 | ||
| Break Elongation,% | MD | ≥700 | ≥700 | |
| CD | ≥700 | ≥700 | ||
| density ,g/cm3 | ASTM D1505 | ≥0.94 | ≥0.94 | |
| Carbon black content(%) | ASTM D1603 | 2.0-3.0 | 2.0-3.0 | |
| strenght at tear,N/mm | MD | ASTM D1004 | ≥249 | ≥249 |
| CD | ≥249 | ≥249 | ||
| Puncture strength(N) | ASTM D4833-0(2013)EL | ≥703 | ≥640 | |
| dimensional stability,% | MD | ASTM D1204 | ±2 | ±2 |
| CD | ±2 | ±2 | ||
| water vapor permeability coefficient g.cm/(cm²s.Pa) | GB/T 1037-1988 | ≤1.0*10-12 | ≤1.0*10-13 | |
| -70ºC embrittlement temperature impact performance | ASTM D746 | pass | ||
| 200ºC Oxidative Induction Time,min | ASTM D3895 | ≥100 | ≥60 | |
| Tensile load stress cracking,h | MD | ASTM D5397(2012) | ≥300 | |
| CD | ≥300 | |||
| Uv aging (1600h) | ASTM D7238-06(2012) | |||
| Oxidation induction time retention at uv aging of 200ºC,% | ASTM D3895-14 | ≥50 | ||
| air aging(85ºC 90d) | ASTM D5721-08 | |||
| Oxidation induction time retention at 200ºC after thermal aging for 90d,% | ASTM D3895-14 | ≥55 | ≥55 | |
Work Shop:
Geomembrane is composed of High Density Polyethylene (High Density Polyethylene) add carbon black and antioxidant mixed in certain proportion, the three-lay co-extrusion blow molding production process.Both sides are flat, smooth.
Company Profile:
Shandong Dajin Geosynthetics Co.,LTD. is located in Jinan City, Shandong, China, which is a comprehensive service provider as well as solution provider integrating design, production and construction.
The products provided by Dajin include geotextile, geomembrane, composite geomembrane warp-knitted geogrid, glass fiber geogrid, plastic geogrid, steel-plastic geogrid, mining geogrid, high-strength mining polyester fiber mesh, geocell and other geosynthetics. Dajin possesses three production bases and a complete QC system, and our product quality, technology and equipment lie in top of the industry. Our goal is to become a world-class company dedicated to providing our customers with comprehensive, reliable and high-quality services and solutions.
Our advantages
- Average feedback time Less than 2 hours;
- Senior engineers with more than 10 years experience lead our professional technical team;
- Establish test result database for each batch of products;
- Raw material QC system,production process QC system,pre-shipment QC system;
- Dajin can provide installation and technical guidance services;
- Third party test or inspection;
- Sample availability: A4 size sample or smaller size is available in free cost.

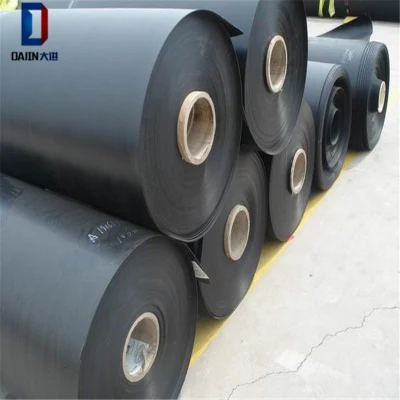

| Packaging Details: | HDPE Geomembrane Roll is packed in the woven bags or follow your demand. Roll size load into container : width5.8m X Length 50m-100m. |
| We have our own loading man and loading tools.Keep away from fire and high temperatures. |
Application:
1). Using the geomembrane anti-seepage feature, HDPE Geomembrane liners can be used as fish ponds, shrimp pond, and other aquaculture.
2).Sanitation Projects: Domestic garbage landfill, sewage treatment, poisonous & harmful substance treatment
3).Mining Industry & Chemical Industry: Anti-seepage of oil tank
in chemical plant, refinery plant, petrol station, chemical,inner liner of settling tank, secondary liner etc
4).Water conservancy Projects: Anti-seepage, leaking stoppage and
reinforce of river/lake/basin/dam, anti-seepage of water channel,
vertical core wall, lake etc.
FAQ:
Q:Can you do OEM?
A:Yes, of course. We can produce the products as per your request.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock,
it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,
balance before shipment.
If you have another question, please feel free to contact us at any time.
