Product Description
Textured & Perforated HDPE Geocell Smooth & Perforatd HDPE Geocell
Smooth & Non-perforated HDPE Geocell Smooth & Non-perforated HDPE Geocell
Geocell Accessories
ROAD® Geocell is a lightweight and flexible three-dimensional, expandable panels made from High Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.
| Properties | Test Method | Unit | Value | |||||
| Polymer | - | HDPE | ||||||
| Density | ASTM D 1505 | g/cm3 | 0.94 | |||||
| Carbon black content | ASTM D 1603 | % | 1.5 | |||||
| Sheet thickness(Smooth) | ASTM D 5199 | mm | 1.1 or 1.2 | |||||
| Sheet thickness(Textured) | ASTM D 5199 | mm | 1.5 | |||||
| Seam peel strength | Cell depth | |||||||
| N | 75 mm | 1060 | ||||||
| N | 100 mm | 1420 | ||||||
| N | 150 mm | 2130 | ||||||
| N | 200 mm | 2840 | ||||||
| Weld spacing | mm | 330 | 356 | 400 | 445 | 660 | 712 | |
| Expanded cell size (WxL) | mm | 244X203 | 259X224 | 295X250 | 320X287 | 488X408 | 508X475 | |
| Expanded panel size(WxL) | m | 2.44X6.15 | 2.56X6.52 | 4X5 | 2.56X8.35 | 2.44X12.29 | 2.56X13.72 | |
| Expanded panel area | m2 | 15 | 16.7 | 20 | 21.4 | 30 | 35.12 | |
2. Used to stabilize river embankments.
3. Used to prevent landslides.
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed, construction speed, good performance and greatly reduce the project cost.

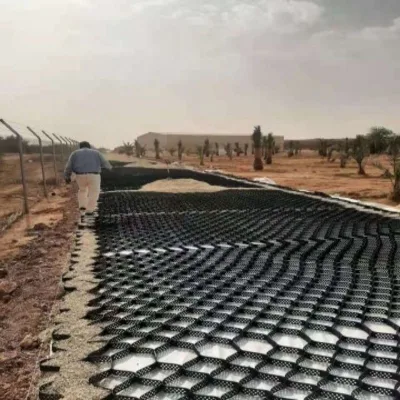

Farm Driveway Construction
Country: Saudi Arabia
Black Geocell Specification:
Height:50mm
Welding distance:330mm
Textured surface Perforated
Retain Wall for River Bank
Country: Vietnam
Yellow Geocell Specification:
Height:100mm
Welding distance:356mm
Country: United Kingdom
Green Geocell Specification:
Height:150mm
Welding distance:330mm
Smooth surface Perforated
Country: United States of America
White Geocell Specification:
Height:100mm
Welding distance:445mm
Textured surface Perforated

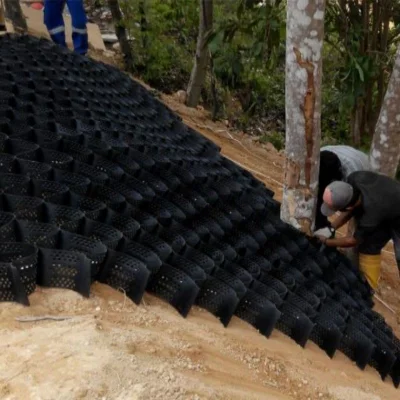

Slope Protection
Country:Nigeria
Black Geocell Specification:
Height:150mm
Welding distance:445mm
Textured surface Perforated

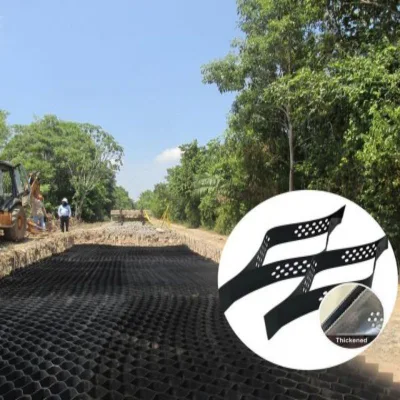

Road Construction
Country: Australia
Black Geocell Specification:
Height:100mm
Welding distance:445mm
Textured surface Perforated
Slope Protection
Country: Egypt
Yellow Geocell Specification:
Height:100mm
Welding distance:450mm
Textured surface Perforated
Water Channel Protection
Country:Argentina
Black Geocell Specification:
Height:100mm
Welding distance:660mm
Textured surface Perforated
Water Wall/Dam Protection
Country:Thailand
Black Geocell Specification:
Height:100mm
Welding distance:330mm
Smooth surface Perforated
Railway foundation reinforcement
Country: Argentina
Grey Geocell Specification:
Height:200mm
Welding distance:660mm
Textured surface Non-perforated
ROAD® Geosynthetics(Taian Road Engineering Materials Co.,Ltd), established in 2002, specialized in manufacturing plastic uniaxial geogrid, biaxial geogrid,fiberglass geogrid, polyester geogrid, 3D geomat , geonet, geocell, geotextile, geomembrane, BOP stretched net, safety fence. Products are mainly used in the foundation construction such as roadways, railways, irrigation works,electric power, water and land protection, and environment greening, etc.
ROAD® Geosynthetics, as leading manufacturer of geosynthetics materials, we have three plants, more than 40 production lines, with an annual production capacity of 300 million square meters, enables our company to provide customers excellent delivery time.
ROAD® Geosynthetics, as famous brand, our products has been exported to more than seventy countries and areas, such as Russia,Unites Kingdom, Italy, Poland, United States, Canda, Chile, Brazil, South Africa, Japan, Korea, Singapore and so on.
