Basic Info.
Model NO.
Continuous Filament
Material
PP
Kind
Non-woven
Width
1-6.5m
Length
Customized
Brand
Inno
Properties
Good Flexibility Permeability Filtration etc
Transport Package
Woven Geotextile
Specification
80-1000g
Trademark
INNO
Origin
China
HS Code
5602100000
Production Capacity
50000sqm/Per Day Depends on The Specification
Product Description
Our nonwoven geotextiles are mechanically bonded continuous filament nonwovens made from 100% UV stabilized polypropylene. They have been used for decades as separation, protection and filtration elements in a large number of applications, adding years to the life of any roadway, railroad, landfill or civil / environmental engineering project. They are robust and long lasting. The manufacturing method (a continuous process with endless filaments) guarantees the use of high-quality raw materials.
nonwovens are resistant to all chemical and biological media usually occuring in soils and construction materials. It cannot be dissolved by water and therefore is harmless to ground water. They are equipped with a UV-stabilizer, providing extended resistance to direct sunlight.
Benefits of our Nonwoven Geosynthetics:
- Wide range to offer a tailormade solution to your requirement
- High long term resistance and robustness
- An expert team to advice you the appropriate solution
- Quick and easy delivery
- Uniform product quality
Polypropylene Filament Geotextile Introduction
(1) polypropylene density is small, only 0.91 g / m3 (polyester is 1.38 g / m3), so the polypropylene geotextile than polyester geotextile, under the same strength, with a greater coverage area.
(2) the special structure of polypropylene to make it has excellent acid and alkali resistance, especially alkali resistance is better than polyester, in the soil alkaline strong underground protection, strengthening, waterproof, anti-seepage and other projects When the effect is better than polyester.
(3) polypropylene Geotextile Fabrics surface friction coefficient is small, the friction between the fibers is small, and good wear resistance, anti-vibration friction performance is much better than polyester.
(4) Polypropylene has a good hydrophobic, non-absorbent, in the water supply and drainage project is better than polyester.
(5) Polypropylene fiber acupuncture geotextile than the same weight of polyester acupuncture geotextile strong, and vertical and horizontal strong equal.
(6) I produced the polypropylene geotextile, can achieve different denier polypropylene nonwoven fabric compound, the filter effect is better.
| Product Name | Polypropylene filament Geotextile |
| Material | Polypropylene |
| Weight | 80g-1000g |
| Size | Width: 1M - 6.5M Length: as request) |
| Color | White, Grey , Blacketc |
| MOQ | 1000sqm per thickness |
| Certificate | CE / ISO 9001 |
| Packing | In PP woven bag or as request |
| Samples | Free samples available |
| Delivery Time | about 7 days after received the 30% deposit |
| Delivery Terms | Ocean Shipping |
| Payment Terms | TT 30% as deposit, 70% balance payment at sight of BL copy or LC at sight |
Polypropylene Filament Geotextile Advantages&Diagram
The worlds s first 6.5-meter-wide products, reducing splicing, enabling the convenient construction and saving construction costs;
Equipment and Technology are protected in Asia regional, four years of technology exclusive;
The process equipment adopts a complete set of automatic equipment newly developed by Oerlikon and OBAf the world's leading manufacturer in the textile industry;
The raw materials polypropylene particles are selected from French TOTAL, one of the four major petrochemical companies in the world;
The single fiber of the product is within 5.5-13dtex, and the number of the filaments comparing to other same \gram weight product is more, which means their mechanical properties are stronger;
The product surface is free of floating wireand no layered for high weight. There never appears the layer splicing due to wind, rain, snow, steep slope and other factors on the site of construction, ensuring the project quality and construction safety.
1. Isolation
The use of geotextile different physical properties (particle size, distribution, density and thickness, etc.) materials (such as soil and sand and gravel soil, soil and concrete, etc.) for isolation. So that two or more materials are not loss of inter-and non hybrid,to maintain the overall structure of the material and functions of the structures is to strengthen the load bearing capacity.
2 .Filter
When the water from fine materials into the soil layers of rough material, the use of acupuncture geogextile good air and water permeability, so that the water flow through, and effective interception soil particles, spinning, the small stone so as to maintain the stability of the soil and water projects.
3 Drainage
Acupuncture geotextile is a good hydraulic material, which can from a soil internal drainage channel, soil structure and excess liquid gasemissions.
4 Reinforced
Acupuncture use of geotextile to enhance soil and the tensile strength of the antideformation ability to increase the stability of the building structure in order to improve the quality of the soil.
5 Protection
Will focus on effective stress-proliferation, transfer or broken down by external force to prevent the soil and damage.
6. Closed
Acupuncture geotextile and other materials (primarily asphalt or plastic film) with the formation of impermeable layer of insulation layer. (Mainly used for road resurfacing and repairing, etc.)
Polypropylene Filament Geotextile Application
Sliding layer of high-speed rail, double block ballast-free track isolation layer, sound insulation, vibration reduction, noise reduction and friction resistance;O Airport runway, apron crack proof and isolation;
O The roadbed of expressway and highway strengthened and crack proof of the road;
O Isolation and reinforce for the port and wharf;
O Isolation and filtration for Sponge City and underground pipelines;
Isolation, filtration and anti-seepage for sewage treatment plant, landfill plant, pollutant storage tank, environmental protection and water structure;
O Reinforce, isolation, filtration and safeguard for the foundation of petroleum and chemistry warehouse;
O Reinforce, isolation, filtration and safeguard for farmland irrigation and water conservancy, watercourse, reservoir and channel, and for the project of farmland reclamation from the sea;
O Isolation for coal fly ash yard;
O Isolation, reinforcement and filtration for mine TIPS and heap leaching;
O Ecological slope protection and greening maintenance.
Technical data
| Specification | Values | ||||||||||
| Weight (g/m2) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 |
| Weight variation (%) | ±4% | ||||||||||
| Thickness (mm) | 1.2 | 1.6 | 1.8 | 2.1 | 2.4 | 2.6 | 2.8 | 2.9 | 3.0 | 3.2 | 3.4 |
| Width (m) | 1 to 6.5m (5.9m for container transportation) | ||||||||||
| Width deviation (%) | ±0.5% | ||||||||||
| Breaking Strength (≥KN/m) | 5 | 8 | 11 | 15 | 20 | 22 | 24 | 26 | 28 | 34 | 50 |
| Elongation at Break (%) | 50% to 90% | ||||||||||
| CBR Bursting Strength (≥KN/m) | 1.0 | 1.7 | 2.5 | 3.0 | 3.5 | 3.9 | 4.3 | 4.8 | 5.3 | 6.2 | 7.0 |
| Sieve Size (mm) | 0.07 to 0.20 | ||||||||||
| Vertical Permeability Coefficient (cm/s) | ≤2*10-1 | ||||||||||
| Tear Strength (≥KN/m) | 0.15 | 0.24 | 0.35 | 0.39 | 0.42 | 0.46 | 0.50 | 0.53 | 0.58 | 0.65 | 0.9 |

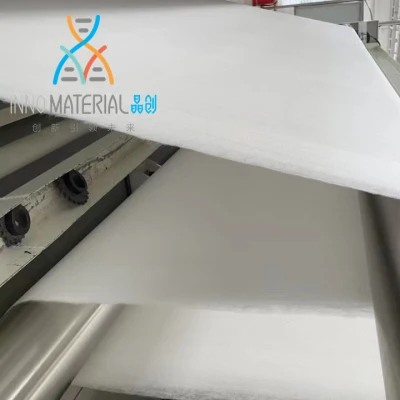

Process

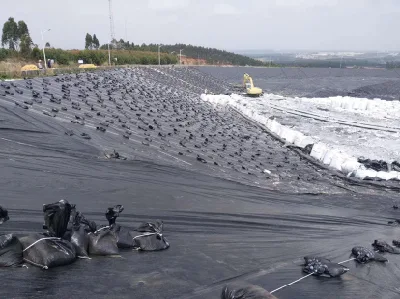

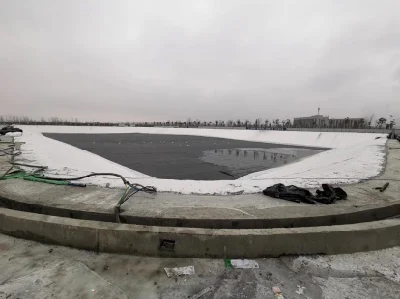

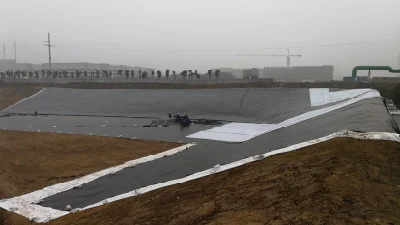

Project Reference
