Product Description
Tri-dimension composite geonet for drainage is made of a unique tir-dimension geonet adhibited geotextile on both sides. It has the property of geotextle (filtration) and geonet (drainage and protection) and provide a function system "filtration-drainage- protection". The core of geonet with its unique tri-dimension structure can bear higher compressing load in construction and remain the certain thickness, provide good water conductivity.

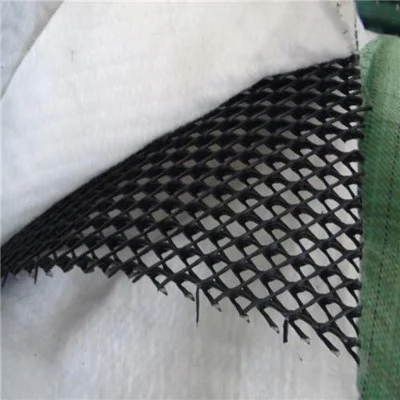

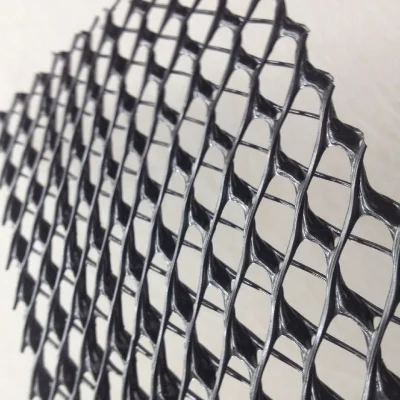

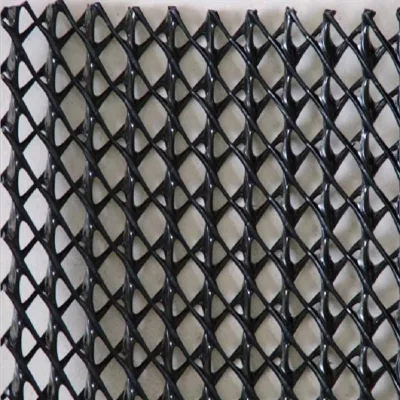

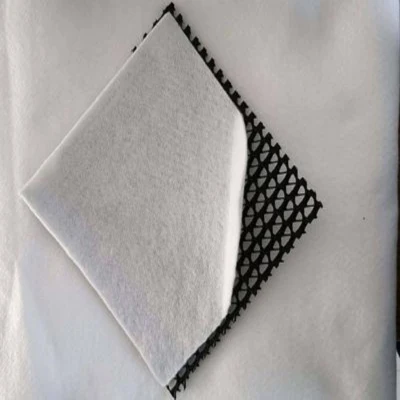

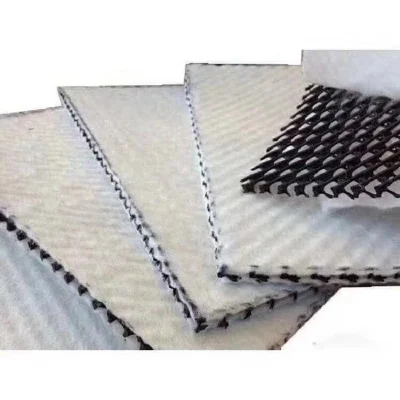

Detailed Photos
Technical Index
| No. | Item | Unit | Value | ||
| 1200 | 1400 | 1600 | |||
| 1 | Unit weight of compound | g/m2 | ≥1200 | ≥1400 | ≥1600 |
| 2 | Thickness of compound | mm | ≥6.0 | ≥7.0 | ≥8.0 |
| 3 | Tensile strength of compound | KN/m | ≥16.0 | ||
| 4 | Hydraulic conductivity of compound | m2/S | ≥1.2×10-4 | ||
| 5 | net and non woven geotextile | KN/m | ≥0.3 | ||
| 6 | Thickness of net core | mm | ≥5.0 | ≥6.0 | |
| 7 | Tensile strength of net | KN/m | ≥13.0 | ≥15.0 | |
| 8 | non-woven geotextile weight of unit area | g/m2 | 200 | ||
| 9 | non-woven geotextile permeability | cm/s | ≥0.3 | ||
| 10 | Width | m | 2.1 | ||
| 11 | Roll length | m | 30 | ||
2. Reduce the rate geotextile embedding into the core of geonet.
3. Protect the long-term stabi-lity of the hydraulic conductivity.
Tri-dimension composite geonet for drainage can bear more than 2000kpa compression bad Its anti-compression capacity is much larger than common geonet for drainage.
1. Integration of production and trade
Shandong Tianren New Materials Co., Ltd. is mainly engaged in the production and manufacturing of new composite geo-materials, which is a collection of scientific research and development, anti-seepage design, technical consultation, construction services in one of the science and technology professional materials production company.
2. Diverse product
The company's products are building waterproof coil, composite geomembrane, filament geotextile, short filament geotextile, geomembrane, waterproof board, waterproof blanket, geogrids, drainage board, geocell, soft permeable pipe, etc.
3. Suitable solutions for you
The products are widely used in water conservancy, highway, railway, bridge, tunnel, environmental protection, aviation, agriculture, mining and other fields.
