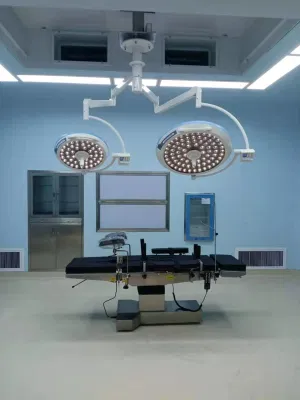

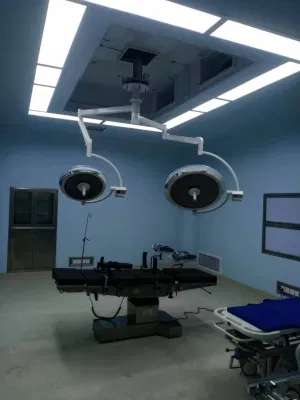

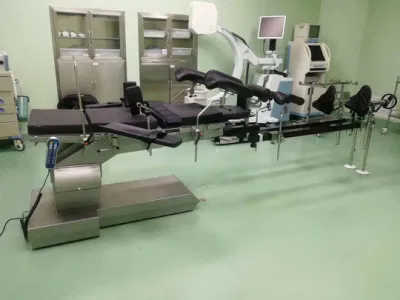

Factory Price Medical Emergency 6 Functions Electric Operating Table
The electric comprehensive operating table is used for comprehensive surgery in thoracic and abdominal surgery, brain surgery, ophthalmology, otolaryngology, obstetrics and Gynecology, urology and orthopedics. It can be used with C-arm X-ray machine.
| Table surface specification | 2020(±20)×550(±20)mm |
| Table height | minimum 680 (± 20) - - Maximum 980 (± 20) mm (electric) |
| Longitudinal translation of table top | 300 ± 20mm (electric) |
| Left and right inclination of table top (side inclination) | ≥ 20 ° (electric) |
| Table tilt forward ≥ 25 °, tilt backward ≥ 20 ° (electric) | |
| Back plate folding up: ≥ 80 °, folding down: ≥ 15 ° (electric) | |
| Head plate folding up≥ 45°and folding down≥90°(manual) | |
| Foot plate folding down: ≥ 90 ° axial deployable 180 ° detachable (manual) | |
| Leg plate adjustment | fold up≥15°, fold down≥65° |
| Rated load | 135kg |
| Waist bridge lifting 110mm (± 10) | |
| Electric brake is available |
- The main body position adjustments such as table lifting, forward and backward tilting, left and right tilting, translation and back plate folding are realized by key operation and electric push rod drive;
- The table can be moved longitudinally. It can be used together with the C-arm for radiographic examination or photography;
- The table panel is made of high-quality acrylic plate, and the mattress is formed with slow rebound memory sponge to evenly share the carrier's pressure. It has the advantages of corrosion resistance, acid and alkali resistance, air permeability and easy cleaning. It can be naturally shaped according to the patient's body temperature to effectively prevent the patient from bedsore;
- The leg plate can be disassembled, manually rotated, abducted and folded down, which is convenient for adjustment and very convenient for urological surgery;
- The head and leg plate can be disassembled, which is convenient for operation and provides more flexible operation space;
- The handheld manipulator adopts 24V DC voltage, which is easy to operate, safe and reliable;
- The operating table is made of medical grade 304 stainless steel with special Matt treatment on the surface, which is more modern and more convenient to clean;
- High strength stainless steel bottom cover, strong compression resistance, anti-corrosion and easy to clean;
- The base of the operating table has the function of fixing or moving, and the bottom is equipped with wheels, which can move flexibly and fix reliably;
- The table can be equipped with built-in lumbar bridge, which is convenient for bile, kidney and other operations;
- The main actions of the operating table: table lifting, table tilt back and forth, table tilt left and right, back plate folding and bed translation adopt electric device, which is composed of controller, electric push rod, etc; The head plate is folded and the leg plate is folded, which is controlled by the air spring; Mechanical control of waist board rising.
- The electric control part is mainly composed of power supply, control button box, etc. The power supply of the operating table is: the external 220V AC is converted into 24V DC through the power supply to drive the motor.
