Basic Info.
Model NO.
Plastic/PET/Fiberglass
Classification
Polyester Geogrid
Material
Plastic
Raw Material
PP
Width
4m,6m
Length
50m,100m
Mesh Size (mm)
12.7*12.7 / 25.4*25.4 /40*40
Certificate
CE/ISO9001/BV
The Elongation Ratio
Not More Than 10%
Market
Europe, Africa, Asia, Middle East etc.
Samples
Free Samples
Transport Package
Black PE Film or Woven Bags for Outside Packag
Specification
15-200KN
Trademark
OBOR
Origin
Taian, Shandong, China
HS Code
392590000
Production Capacity
50000m2/Day
Product Description

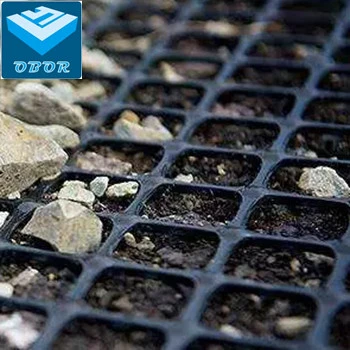

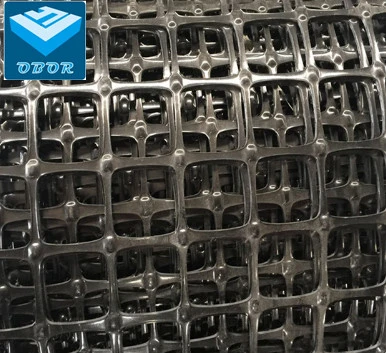

PP PE Biaxial Plastic Geogrid
Introduction:
Biaxial geogrid is made of high molecular polymer through extrusion, forming and punching before longitudinal and lateral stretching. This material has considerable tensile strength in longitudinal and lateral directions. This chain structure can effectively bear and diffuse forces on soil and is applicable to large area permanent load bearing foundation as a reinforcement material.
Biaxial geogrid is made of high molecular polymer through extrusion, forming and punching before longitudinal and lateral stretching. This material has considerable tensile strength in longitudinal and lateral directions. This chain structure can effectively bear and diffuse forces on soil and is applicable to large area permanent load bearing foundation as a reinforcement material.
Features:
1. Increase the bearing capacity of the roadbed and foundation and prolong their service life.
2. Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.
3. Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense.
4. Prevent culverts from flawing.
5. Enhance earth slope and prevent water loss and soil erosion.
6. Decrease underlayer thickness and save manufacturing cost.
7. Enhance the stability of side slope turf net patch to improve greening.
8. Replace wire netting used in mine as intermediate ceiling netting.
Biaxial PP/Plastics Geogrid Data Sheet
| MODEL | TGSG15-15 | TGSG20-20 | TGSG30-30 | TGSG40-40 | TGSG45-45 | TGSG50-50 | |||
| Mass per Unit Area (g/m2) | 300±30 | 330±30 | 400±40 | 500±50 | 550±50 | 600±50 | |||
| Width (m) | 1-6m | ||||||||
| Tensile Yield Force per Linear Meter (KN/m) (MD) | 15 | 20 | 30 | 40 | 45 | 50 | |||
| Tensile Yield Force per Linear Meter(KN/m) (CD) | 15 | 20 | 30 | 40 | 45 | 50 | |||
| (MD)Yield Elongation (%)≤ | 15 | ||||||||
| (CD)Yield Elongation (%)≤ | 13 | ||||||||
| Strength at 2% Strain, (KN/m)≥(MD) | 5 | 8 | 11 | 15 | 18 | 19 | |||
| Strength at 2% Strain(KN/m) ≥(CD) | 7 | 10 | 13 | 17 | 20 | 24 | |||
| Strength at 5% Strain (KN/m) ≥(MD) | 8 | 15 | 24 | 30 | 35 | 39 | |||
| Strength at 5% Strain (KN/m) ≥(CD) | 10 | 16 | 25 | 31 | 36 | 40 | |||
| Mesh Size (mm) | 30*30 | 36*38 | 34*36 | 34*36 | 40*40 | 40*40 | |||
| Remark | Special specifications can be customized according to the contract. | ||||||||
Application:
Geogrids focus almost entirely on reinforcement applications, although separation may be a function. The following are examples of a few applications.
Slope Reinforcement- embankments over soft soils, extra-steep earthwork slopes, landfill liner systems, and industrial and contaminated land reclamation
Base Reinforcement- foundations of roadbeds, parking lots, railroad tracks beds, airports runways, permanent unpaved roads, construction haul roads
Wall Reinforcement- retaining walls, sea walls, airport noise barriers, and bridge supports
Berm Reinforcement - spillway channels for earthen dams, levees, and waste contaminated ponds, banks for earthen canals and waterways.
Packing and Shipping
Company Information
· OBOR is a leader in geosynthetic products manufacturing with registered capital more than $10 million and factory area of 100,000 square meters. The main varieties of products are HDPE / LDPE pond liner, Plastic Grass Grids, Woven/ nonwoven Geotextile, Drainage Board, Composite Membrane and Textile, Plastic netting, 3D Planting Geomat, and other geosynthetic products.
· The company has imported advanced testing equipment from abroad, with first-class technology and first-class testing method, to provide customers with high-quality and safe products and services.
· The company attaches great importance to the control of product quality, continuous improving production process and customer service. Our product performance testing and analysis are in full compliance with international quality testing standards, providing customers with quality products in strict implementation and higher standards to better meet customer's needs.
