Basic Info.
Product
Gcl Geonet Geocomposite Geotextile HDPE Geomembran
Thickness
0.5-3mm
Width
1-8m
Length
50-100m
Standard
ASTM Gri GM13
Delivery Time
Within15days
MOQ
3000sqm
Keywords
Geomembrane
Packing
Woven Bag
Transport Package
Woven Bag
Specification
hdpe virgin material
Trademark
Dajin
Origin
Shandong, China
HS Code
39201090
Production Capacity
20000sqm/Day
Product Description
GCL geonet geocomposite geotextile hdpe geomembrane for pond landfill water storage tailings mining project
HDPE Geomembrane liner are made from polyethylene polymer materials by the film-blowing process.it is most widely used for fish pond, solid waste containment (such as landfill liners), mining and water containment applications.
2.Geomembrane-Main Features:
1.Waterproof and impermeable
2.UV resistance
2.High tearing resistance
3.Puncture-resisting
4.Nontoxic
5.Long life
6.Root resistance
3.Geomembrane-ASTM GM13 Specification:
| Item | Value | ||||||
| Thickness,mm | 0.75 | 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 |
| Density,g/cm3 | ≥0.94 | ||||||
| Tensile yiedl strength,N/mm | ≥11 | ≥15 | ≥18 | ≥22 | ≥29 | ≥37 | ≥44 |
| Tensile breaking strength,N/mm | ≥20 | ≥27 | ≥33 | ≥40 | ≥53 | ≥67 | ≥80 |
| Elongation at yield, % | ≥12 | ||||||
| Elongation at break,% | ≥700 | ||||||
| Tear Resistance,N | ≥93 | ≥125 | ≥160 | ≥190 | ≥250 | ≥315 | ≥375 |
| Puncture Resistance,N | ≥240 | ≥320 | ≥400 | ≥480 | ≥640 | ≥800 | ≥960 |

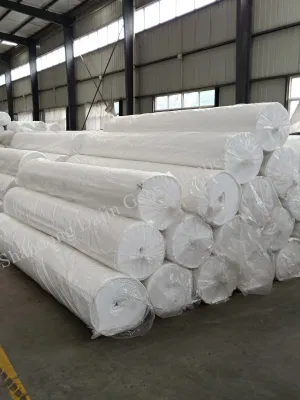

3.Geomembrane-Packaging & Shipping
The geomembrane roll are in the hand sewing woven bag packing, safe and scratch-proof.The bag color can be customized, with your own logo.
4.Geomembrane-Application and our projects
Aquaculture projects:fish ponds,shrimp ponds,industrialized aquaculture ponds,etc.
Environmental protection projects:Landfill,sewage treatment plants,power plant regulating pools,industrial and hospital solid wastes,etc.
Agriculture:Seepage control of reservoirs, reservoirs, irrigation systems, channel etc.
Mining:heap leaching platforms, conduit and retention channels and wells for liquid solutions, , final disposal reservoirs.
5.Company introduction
Shandong Dajin Geosynthetics Co.,LTD is a comprehensive geosynthetic service provider as well as solution provider integrating Engineering design, manufacturing, installation, guarantee in Seepage control industry.
The products provided by Dajin include geotextile, geomembrane, composite geomembrane warp-knitted geogrid, glass fiber geogrid, plastic geogrid, steel-plastic geogrid, mining geogrid, high-strength mining polyester fiber mesh, geocell and other geosynthetics.
Our goal is to become a world-class company dedicated to providing our customers with comprehensive, reliable and high-quality services and solutions. Meeting the needs of people to increase their quality of life, promoting the smart use of the planet's resources.
Design
The Dajin engineering team can provide solid advice on all types of Seepage control insustry, as well as their correct design for projects, including construction details and advice on the general configuration of the project.
Documentation
Each roll of Dajin geomembrane has its own identification number. The identification number is traceable in line with the quality control plan. Dajin can add the necessary documentation or modify the packaging for countries and territories with special product certification requirements.
Quality plan
The Dajin quality plan is designed to provide customers with the highest standards of product control and reduce our product returns rate to zero. The checklist covers a wide range of aspects, from the quality of the raw material all the way through to the roll labels.
Installation/ We can do for you!
Upon request by the customer, Dajin can also offer a full turnkey installation service, covering the materials manufactured by Dajin, any other geosynthetics products, installation and all additional materials required to fully complete the project.
We can supply supervisors and installers, with or without welding equipment, such as machines and tools, to manage a group of local staff supplied by the customer.
We can also provide training courses to staff provided by the customer.
Guarantee
Dajin provides a 10-year guarantee on all manufactured geomembranes. Based on our experience, the useful life of Dajin's high-performance products under almost any normal conditions of service can be measured in decades and is probably over 100 years.
All the geosynthetic material products can be provided with the solution,and install guide!
6.FAQ
Q: Are you trading company or manufacturer ?
We are factory.
Q:Is the quality of your products stable?
The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for
5 years.
Q:Can you do OEM?
Yes, of course. We can produce the products as your request.
Q: Do you provide samples ? is it free ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment.
If you have another question, please feel free to contact us at any time.
