Basic Info.
Model NO.
PSW
Material
HDPE
Type
Composite Geotextile
Length
Customized
Width
4m
Usage
Drainage
Material Geonet
HDPE
Lead Time
Standard Specification Within 7 Days
Material Geotextile
PP/Pet
Transport Package
Woven Geotextile
Specification
200/8/200
Trademark
zhongloo
Origin
China
HS Code
5602100000
Production Capacity
50000sqm/Per Day Depends on The Specification
Product Description
Drainage 3d Composite Geonet Price
Geocomposite drainage Geonet
Tr-dimension composite geonet for drainage
Three dimensional 150/2-1600/2 composite drainage net

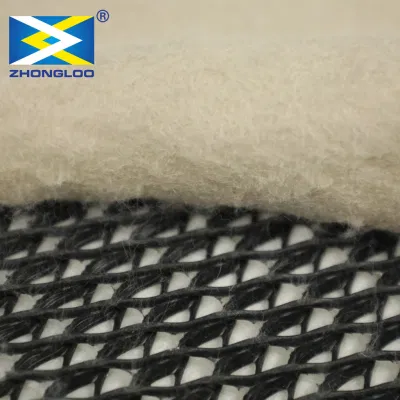

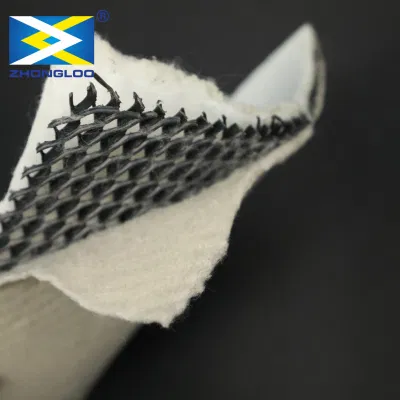

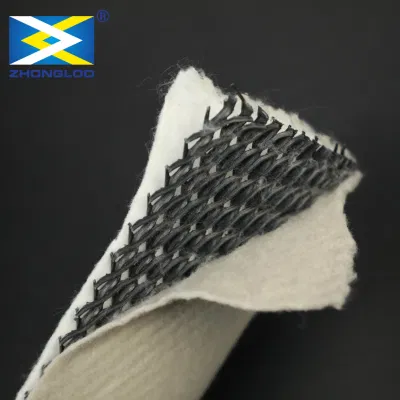

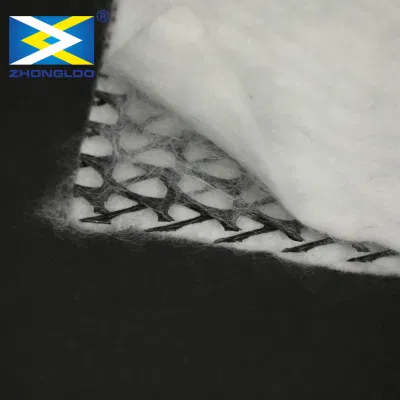

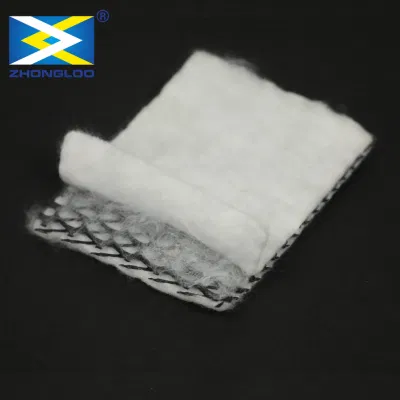

Three dimensional composite drainage net by the unique three-dimensional geonet double bonded geotextiles. A combination of geotextile (filtrate) and geonet (drainage and protection), providing a complete " filter, drainage, protection" effect.
Three dimensional composite drainage net core unique three-dimensional structure, able to bear high compressive load used in the whole process, and can keep the equivalent thickness, provide good rate of water.
Typical application: the landfill of highway subgrade and pavement drainage; drainage; railway tunnel drainage; drainage; drainage of underground structure, block
Wall back garden and field drainage drainage.
| NO. | Item | Unit | Spec./ Standard value | ||||
| 1200g/m2 | 1400g/2 | 1600g/m2 | 1800g/m2 | 2000g/m2 | |||
| 1 | Unit weight of compond | g/m | ≥1200 | ≥1400 | ≥1600 | ≥1800 | ≥2000 |
| 2 | Thickness of compond | mm | ≥6.0 | ≥7.0 | ≥8.0 | ≥9.0 | ≥10.0 |
| 3 | Longitudinal tensile strength of compond productiong | KN/m | ≥16.0 | ||||
| 4 | water diversion ration of compond production | m2/s | ≥1.2×10-4 | ||||
| 5 | peel strength of network core and geotextile | KN/m | ≥0.3 | ||||
| 6 | Thickness of network core | mm | ≥5.0 | ≥5.0 | ≥6.0 | ≥7.0 | ≥8.0 |
| 7 | Tensile strength of network core | KN/m | ≥13.0 | ≥15.0 | ≥15.0 | ≥15.0 | ≥15.0 |
| 8 | Unit weight of geotextile | g/m2 | ≥200 | ||||
| 9 | Seepage coefficient of geotextile | cm/s | ≥0.3 | ||||
| 10 | Width | m | 2.1 | ||||
| 11 | Length of one roll | m | 30 | ||||
Advantages:
The characteristics of 3D composite drainage net:
The drainage ability is strong, can withstand the long-term high load
The high tensile strength and shear strength of the pit
To reduce the probability of the geotextile is embedded in the network core, can protect the long-term stability of the rate of water
The three-dimensional composite drainage net can withstand more than 2000kpa compression load
Far greater than the ordinary drainage network resilience
Applications:
1) Landfill drainage;
2) Roadbed and road drainage;
3) Railway drainage, tunnel drainage, underground structure drainage.
4) The retaining back wall drainage,
5) gardens and sports grounds drainage.
Production Equipment
FAQ
Are you a manufacturer or a trading company?
Our factory has been established for over 15 years ,and has its own trading department. So we have the competitive price with best quality.
How does your factory carry out quality control?
Quality Control is one of our most important link. All of the product will be fully processed and strictly tested before packaging for shipment.
Can I get samples for checking the quality?
We can provide free samples. But you need to pay the freight. After you place the order, we will refund the single freight of the sample.
What's your MOQ?
Our MOQ is usually 2000sqm per color.
What's your delivery time?
It's about 14 days after we received the deposit.
What's your payment terms?
TT (TT 30% as deposit,and 70% balance payment at sight of BL copy)or LC at sight.
Can I visit your factory?
We always welcome you to visit our factory. Transportation is very convenient in China. You can take high-speed rail or plane, and we will pick
you up in advance.
