Basic Info.
Model NO.
GC-5050
Mesh Size
25.4 - 40mm
Nonwoven
100-150G/M2
Coating
Non-Impregnated
Certificate
Ce Approved by Bttg, UK
Transport Package
PE Film or Woven Plastic Bag
Specification
50-100KN, 50KN generally
Trademark
ECL
Origin
China
HS Code
7019
Production Capacity
5 000 000m2/Year
Product Description

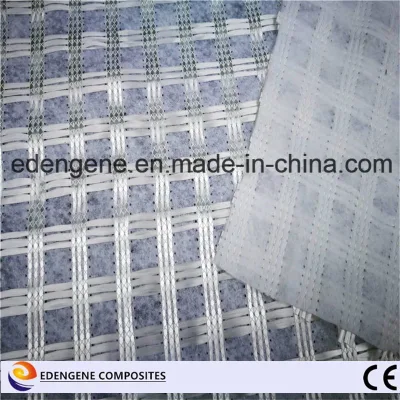

Glass GeoComposite / Fiberglass Compound with nonwoven geotextile
Introduction:
ECL Glass GeoComposite is a composite of glass filaments bonded to nonwoven geotextile by warp-knitting, used for stress relieving of road structures and for the reinforcement and protection of asphalt courses against cracking, plus improving durability of road.
With sealing and uniform bonding of nonwoven geotextile - and the glass filament reinforcement provides effective maintenance and leads to a sustainable reduction in new crack formation. This Glass Geocomposite is a cost effective multifunctional solution in road repair.
And its performance is similar to TenCate PGM-G series.
Applications:
- Surface course reinforcement - Cracks prevention and road maintanance and repair
- Asphalt or Concrete road resurfacing - Airport Construction
Features:
- High-strength, low elongation
- High asphalt absorption / retention
- Good separation against moisture and gases to road base.
- Better bonding strength with surface layers.
- Easy installation and save labor cost.
Technical Specification:
CE Approval:
Projects Reference:
Introduction:
ECL Glass GeoComposite is a composite of glass filaments bonded to nonwoven geotextile by warp-knitting, used for stress relieving of road structures and for the reinforcement and protection of asphalt courses against cracking, plus improving durability of road.
With sealing and uniform bonding of nonwoven geotextile - and the glass filament reinforcement provides effective maintenance and leads to a sustainable reduction in new crack formation. This Glass Geocomposite is a cost effective multifunctional solution in road repair.
And its performance is similar to TenCate PGM-G series.
Applications:
- Surface course reinforcement - Cracks prevention and road maintanance and repair
- Asphalt or Concrete road resurfacing - Airport Construction
Features:
- High-strength, low elongation
- High asphalt absorption / retention
- Good separation against moisture and gases to road base.
- Better bonding strength with surface layers.
- Easy installation and save labor cost.
Technical Specification:
| Item Properties | Unit | GC-30/30 | GC-50/50 | GC-100/100 | GC-120/120 |
| Materials | / | Fiberglass Yarns + PP Nonwoven | |||
| Nonwoven | / | 120g Light nonwoven | |||
| Coating | / | non-coating | |||
| Mesh size of Grid | mm | 25.4 x 25.4 or 40 x 40 | |||
| Ultimate Tensile Strength MD x CMD | KN/M | 30 x 30 | 50 x 50 | 100 x 100 | 120 x 120 |
| Elongation at Ultimate | % | <3 | <3 | <3 | <3 |
| Roll Width | M | 5.95 Max. | |||
| Roll Length | M | 50 - 100 | |||
