Basic Info.
Model NO.
PET filament needle punched non-woven geotextile
Material
Pet. PP
Kind
Non-woven
Technical Service
Guide The Construction
Demand
Customized
Structure
Fabric Form
Nominal Breaking Elongation
40-80%
Width Deviation
Plus or Minus 0.5
Equivalent Opening Size O90(O95)
0.05-0.2
Standard
ASTM GM13 , GB/T 17639-2008
Width
2m-6m (as Customrized)
Length
30m, 100m or Customized
Delivery Time
Within 15day
Transport Package
Woven Plastic Bag
Specification
150g-2000g high-density polyethylene
Trademark
Chuangwan
Origin
China
HS Code
5603149000
Production Capacity
50000 Square Meters /Day
Product Description

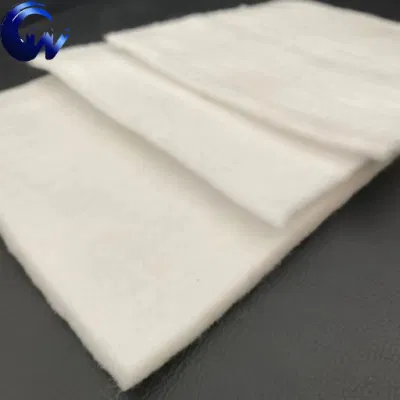

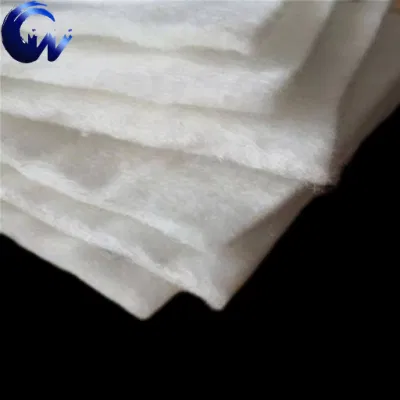

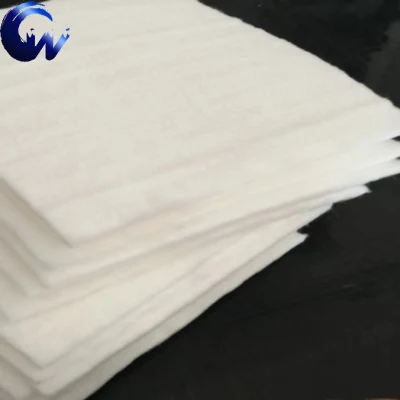

Filament geotextile is a polyester filament needle punched non-woven geotextile that does not contain chemical additives or undergo heat treatment. It is an environmentally friendly building material.
2. UV resistance - with extremely high UV resistance;
3. Extremely high temperature resistance - up to 230 ºC, maintaining structural integrity and original physical properties at high temperatures;
4. Permeability and planar drainage - Geotextiles are thick and needle punched, with good planar drainage and vertical permeability, and can still maintain this performance after many years;
5. Creep resistance - Geotextiles have better creep resistance than other geotextiles, therefore they have good long-term performance. It can withstand the erosion of common chemical substances in soil and the corrosion of gasoline, diesel, etc;
6. Ductility - Geotextiles have good elongation under certain stress, allowing them to adapt to uneven and irregular base surfaces;
Technical index
| Filament Geotextile: GB/T 17639-2008 | ||||||||||||
| Project | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | |||
| Longitudinal and transverse breaking strength,KN/m≥ | 4.5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | |||
| Nominal breaking strength corresponds to elongation,% | 40-80 | |||||||||||
| CBR brusting strength,KN≥ | 0.8 | 1.6 | 1.9 | 2.9 | 3.9 | 5.3 | 6.4 | 7.9 | 8.5 | |||
| Thickness, mm | 0.8 | 1.2 | 1.6 | 2.2 | 2.8 | 3.4 | 4.2 | 5.5 | 6.8 | |||
| Mass deviation rate per unit area,% | -5 | |||||||||||
| Width deviation rate,% | -0.5 | |||||||||||
| Equivalent opening size O90(O95), mm | 0.05-0.2 | |||||||||||
| Vertical permeability coefficient, cm/s | k×(10-1~10-3) k=1.0~9.9 | |||||||||||
| Longitudinal and transverse tearing strength,KN≥ | 0.14 | 0.21 | 0.28 | 0.42 | 0.56 | 0.7 | 0.82 | 1.1 | 1.25 | |||
| Q/CR 549.5-2016 | ||||||||||||
| Project | Performance indicators | |||||||||||
| Nominal strength at break,KN/m | 4.5 | 7.5 | 10.5 | 12.5 | 15 | 20 | 25 | 30 | ||||
| Longitudinal and transverse tensile break strength,KN/m≥ | 4.5 | 7.5 | 10.5 | 12.5 | 15 | 20 | 25 | 30 | ||||
| Elongation at break in longitudinal and transverse direction ,% | 40-80 | |||||||||||
| Longitudinal and transverse tearing strength,KN≥ | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.56 | 0.7 | 0.82 | ||||
| CBR brusting strength,KN≥ | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3.5 | 4.7 | 6.4 | ||||
| Longitudinal and transverse holding strength,KN≥ | 0.3 | 0.6 | 0.9 | 1.20 | 1.40 | 1.8 | 2.30 | 2.8 | ||||
| Thickness, mm | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.8 | 3.4 | 4.2 | ||||
| Equivalent opening size O90(O95), mm | 0.07-0.2 | |||||||||||
| Vertical permeability coefficient, cm/s | 1×(10-1~10-3) | |||||||||||
| Mass per unit area,g/m2≥ | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 | ||||
| Width deviation,% | ±0.5 | |||||||||||

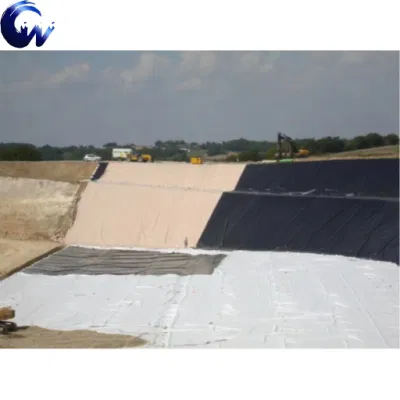

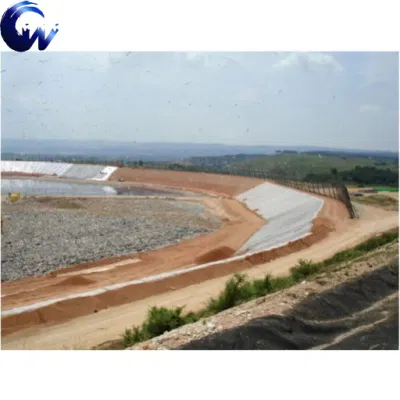

2. Strengthen the flexible road surface, repair cracks on the road, and prevent reflective cracks on the road surface.
3. Increase the stability of crushed stone slopes and reinforced soil to prevent soil erosion and frost damage to soil at low temperatures.
4. The isolation layer between road ballast and roadbed, or the isolation layer between roadbed and soft foundation.
5. The isolation layer between artificial filling, rockfill, or material yard and foundation, as well as the isolation, filtration, and reinforcement effects between different frozen soil layers.
6. The filter layer of the initial upstream dam surface of the ash storage dam or tailings dam, and the filter layer of the drainage system in the backfill soil of the retaining wall.
7. The filter layer around the drainage pipe or gravel drainage ditch.
8. Filter layer of water well, relief well or baroclinic pipe in hydraulic engineering.
9. The isolation layer of geotextile between roads, airports, railway ballast, and artificial rockfill and the foundation.
10. Vertical or horizontal drainage inside the earth dam, buried in the soil to dissipate pore water pressure.
11. Drainage behind the anti-seepage geotextile membrane or below the concrete cover in an earth dam or embankment.
12. Eliminate water seepage around the tunnel, reduce the external water pressure borne by the lining, and reduce water seepage around various buildings.
13. Drainage of artificial fill foundation for sports field foundation.
14. Used to strengthen weak foundations in projects such as highways (including temporary roads), railways, embankments, earth-rock dams, airports, sports fields, etc.
1,We have professional warehouse management system, not only keep clean and dry, but also ensure the packing. All the goods stock respectively according to different orders
2,Standard export packing, or customized packing as your request.
Laboratory Details
The laboratory has a young, full of innovation and vitality of high-quality research team existing researchers. In order to ensure the high quality and quantity of products, the company spends a lot of money to buy all kinds of testing instruments to set up the company's testing laboratory. And for many years in the production process and the end of production randomly selected product samples sent to the laboratory to ensure product quality. Laboratory existing major testing instruments and equipment dozens of units, with a total value of about 30 million yuan. Among them, the constant temperature and humidity box YG751D-I type is used for all kinds of textiles in the test of physical and mechanical properties before the temperature and humidity balance. Electronic Geotextile Strength Comprehensive Tester YT010S-5000 is used in transportation, water conservancy, tunneling, construction engineering and other industries in the geosynthetics, including geotextiles, composite geotextiles, geogrids, geomembranes, and related products tensile, tearing, tearing, top breakage, peeling, seams, and other properties of the test. It is suitable for the determination of carbon black content in polyethylene, polypropylene and polybutylene plastics. The test of carbon black is obtained by weight analysis of the specimen after high temperature decomposition under nitrogen protection. The instrument has the advantages of easy to use, simple operation, accurate measurement and high degree of automation. Automatic Geotextile Thickness Tester Model YT060S is used for the determination of the thickness of geosynthetics and related products under different pressures and specified time. Geotextile Effective Aperture Tester YT030G is used for the determination of effective aperture of geotextile and composite geotextile by dry sieve method. Full-automatic geosynthetics vertical permeability meter YT020PC type is suitable for all kinds of geotextile and composite geotextile with water permeability performance under constant head.
