Basic Info.
Feature
Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant
Material
HDPE
Thickness
1.5 or 1.6 or 1.7mm
Height
50-250mm
Surface
Textured Smooth
Transport Package
Custom Packaging
Specification
Cell depth: 50mm, 100mm, 150mm, 200mm, 250mm
Trademark
zhongloo
Origin
China
HS Code
3926909090
Production Capacity
50000 Square Meters Per Day
Product Description
ground enhancement cellular system gravel grid driveway gravel stabilizer hdpe Geo cell geocell
High density polyethylene Geocell (HDPE Geocell) is a lightweight and flexible three-dimensional, expandable panels made from High Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.
Width of the long strip is the height of the geocell, and the distance between two welding lines in the same side of the plate when the geocell is not expanded is welding distance.
Zhonglu Geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance .
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together.
Width of the long strip is the height of the geocell, and the distance between two welding lines in the same side of the plate when the geocell is not expanded is welding distance.
Zhonglu Geocell is three dimensional, honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique. It is flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other on-site infill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.
HDPE plastic honeycomb hdpe geocell gravel grid Specifications:
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. Appearance: smooth / textured
1) Light material , resistant to wear , stable in chemical properties , anti-aging , resistant to acids and alkalis, applicable to different soil and desert and other geological conditions .
2)High limit on lateral direction , anti-skidding , anti-deformation , effectively enhance the supporting ability and scattered load function of roadbed .
3)High carrying capacity and good dynamic performance and high erosion ability .
4)The geometry size can be changed to meet different needs of the project , such as height and welding distance .
5)Retractable and small loading volume , convenient joint , speed construction .
6)Local material can be used during construction , reduce the construction cost , easy to be transported after folding together.
Technical Parameters:
| Material Properties | Unit | Test Method | |||||
| Cell Depth | mm | 75 | 100 | 150 | 200 | ||
| Polymer Density | g/cm3 | 0.935-0.965 | ASTM D 1505 | ||||
| Environmental Stress Crack Resistance | Hours | >400 | ASTM D 5397 | ||||
| Environmental Stress Crack Resistance | Hours | 6000 | ASTM D 1693 | ||||
| Carbon Black Content | % | 1.5% - 2.0% | ASTM D 1603 | ||||
| Nominal Sheet Thickness Before Texturing | mm | 1.27 -5%,+10% | ASTM D 5199 | ||||
| Nominal Sheet Thickness After Texturing | mm | 1.52-5%,+10% | ASTM D 5199 | ||||
| Strip Puncture Resistance | N | 450 | ASTM D 4833 | ||||
| Seam Peel Strength | N | 1065 | 1420 | 2130 | 2840 | EN ISO13426-1B | |
| Seam Efficiency | % | 100 | GRI-GS13 | ||||
| Nominal Expanded Cell Size (width x length) | mm | 320x287,475x508 etc | |||||
| Nominal Expanded Panel Size (width x length) | m | 2.56x8.35, 4.5x5.0, 6.5x4.5, 6.1x2.44 | |||||
Applications:
Plastic geocell grid gravel for road
1. Used for all kinds of road building , driveways , soil stabilization and embankment stabilization
2. Used to stabilize river embankments .
3. Used to prevent landslides .
4. Using Geocell construction can greatly reduce labor intensity and reduce the thickness of the roadbed , construction speed , good performance and greatly reduce the project cost .
Retaining Wall
Cellular Confinement Systems provide steep vertical mechanically stabilized earth structures (either gravity or reinforced walls)
for steep faces, walls and irregular topography
for steep faces, walls and irregular topography

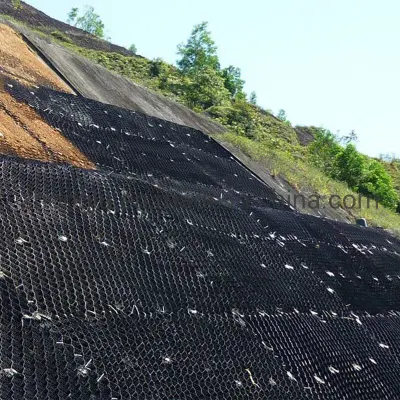

Slope Pretection
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Gruound Stabilisation
Cellular Confinement Systems strengthen the aggregate infill, thereby simultaneously enabling the use of poorly graded inferior material for infill as well as reducing the structural support layer thickness.Typical stabilisation applications include reinforcement of base and subbase layers in flexible pavements, including: roads, railway substructure and ballast confinement;working platforms in intermodal ports; airport runways.

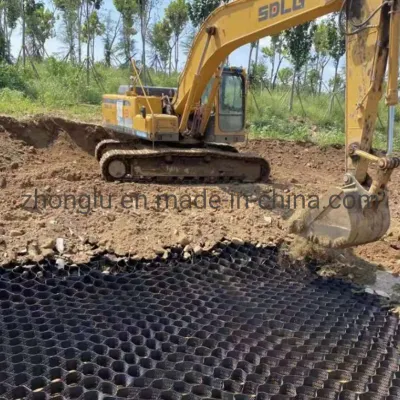

Load Support
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong,stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity, while reducing the amount of aggregate material required to extend the service life of roads.
Channel Lining
Constructing GEOCELL drainage and diversion channels is a fast-to-deploy and economical means to create stormwater conveyance across tailings on mine sites. GEOCELL-confined aggregate channels can reduce rock size 10X, and make beneficial use of the mine's on-site aggregate resources. With concrete infill, GEOCELL channels offer flexible, hard-armor protection, stability and resistance to higher velocity and continuous flows.
Constructing GEOCELL drainage and diversion channels is a fast-to-deploy and economical means to create stormwater conveyance across tailings on mine sites. GEOCELL-confined aggregate channels can reduce rock size 10X, and make beneficial use of the mine's on-site aggregate resources. With concrete infill, GEOCELL channels offer flexible, hard-armor protection, stability and resistance to higher velocity and continuous flows.
What We Can Do For You
Geocell Cellular Erosion Control HDPE plastic honeycomb hdpe geocell gravel grid
1. We have our own factory. We can provide what you want in competitive price.
2. Our company provides before-sales, in-sales and after-sales services with heart and soul in engineering construction and products selection.
3. Our company is in strict accordance with national standards and related standards. Our company passed ISO9001
1. We have our own factory. We can provide what you want in competitive price.
2. Our company provides before-sales, in-sales and after-sales services with heart and soul in engineering construction and products selection.
3. Our company is in strict accordance with national standards and related standards. Our company passed ISO9001
4.We have been exporting for 6 years. We can provide necessary certificates to make customs clearance easier for you. We know well about container. We can make advice for you to reduce freight without damaging goods.
5.We can provide Certificate of Origin. For Southeast Asia, FORM E and FORM A. For Chile, FORM F. For Africa, C O.
We are looking forward to your sincere cooperation. If you have any question, please feel free to contact us.
HDPE plastic honeycomb hdpe geocell gravel grid Company Information
zhonglu is a professional geosynthetic products manufacturing company , covers an area of 60,000 square meters . The main products are HDPE / LDPE Geomembrane , Plastic Grass Grids , Woven/nonwoven Geotextile , Drainage Board ,Composite Membrane and Textile , Plastic netting , 3D Planting Geomat , and other geosynthetic products .
zhonglu Company has altogether 20 production liners including HDPE/LDPE Geomembrane liners , Plastic Grass Grids liners , Nonwoven Geotextile liners , Woven Geotextile liners ,Drainage Board liners , Plastic Netting liners , and variety testing machines .
We are specialized in providing professional geosynthetics solutions for Road, Highway , Railway , Airport , Tunnel , Mine Supporting and Protecting , Hydro , Reinforced Steep Slopes , Reinforced Retaining Wall , Reinforced Embankments , Landfill , Containment , water conservancy facilities , soft foundation treatment and other related projects .
Our target is to supply professional products with the most reasonable prices to our customers around all the world , expect to build long term relationship with you .
5.We can provide Certificate of Origin. For Southeast Asia, FORM E and FORM A. For Chile, FORM F. For Africa, C O.
We are looking forward to your sincere cooperation. If you have any question, please feel free to contact us.
HDPE plastic honeycomb hdpe geocell gravel grid Company Information
zhonglu is a professional geosynthetic products manufacturing company , covers an area of 60,000 square meters . The main products are HDPE / LDPE Geomembrane , Plastic Grass Grids , Woven/nonwoven Geotextile , Drainage Board ,Composite Membrane and Textile , Plastic netting , 3D Planting Geomat , and other geosynthetic products .
zhonglu Company has altogether 20 production liners including HDPE/LDPE Geomembrane liners , Plastic Grass Grids liners , Nonwoven Geotextile liners , Woven Geotextile liners ,Drainage Board liners , Plastic Netting liners , and variety testing machines .
We are specialized in providing professional geosynthetics solutions for Road, Highway , Railway , Airport , Tunnel , Mine Supporting and Protecting , Hydro , Reinforced Steep Slopes , Reinforced Retaining Wall , Reinforced Embankments , Landfill , Containment , water conservancy facilities , soft foundation treatment and other related projects .
Our target is to supply professional products with the most reasonable prices to our customers around all the world , expect to build long term relationship with you .
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Geocell,Geogrid,Geomembrane,Geotextile,and other related products.
3. why should you buy from us not from other suppliers?
More than 20 years of production experience
4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
