Basic Info.
Model NO.
Geotextile
Length
as Request
Transport Package
Export Package, as Request
Specification
100gsm - 1500gsm
Trademark
Huatao
Origin
China
HS Code
5602290000
Production Capacity
Within 3 Days Per 40′hc
Product Description
100gsm - 1500gsm Geosynthetic Material Polyester PET Polypropylene PP Nonwoven Needle Punched Geotextile
Polyester PET Continuous Filament Non Woven Geotextile
Polypropylene PP Continuous Filament Non Woven Geotextile
Contact us directly to get the Technical specification

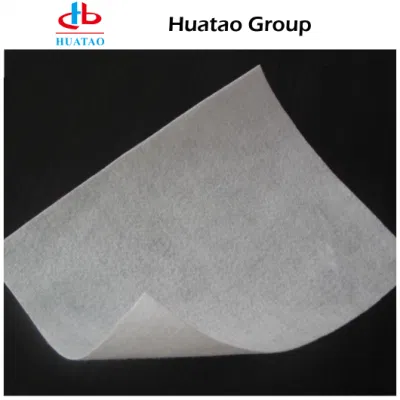

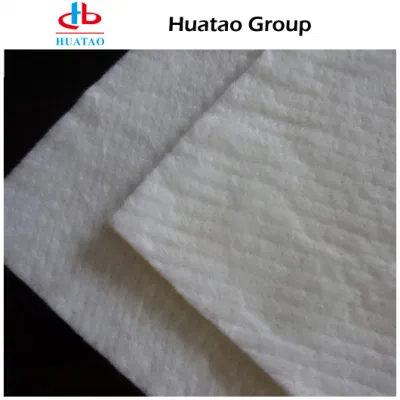

Polyester PET Staple Filter Needle Punched Non Woven Geotextile
PET non woven geotextile made of Polyester stable fiber by a nonwoven needle punched manufacture process. without chemical additives and heat treatment. It is an environmentally friendly construction material. Also can be treated by UV Resistance, Thermal Bonded, Color Custom-made, etc.
Property
Good flexibility, resistant to corrosion, resistant to acids and alkalis, anti-oxidation
Separation, filtration, drainage, reinforcement, protection, and maintenance function

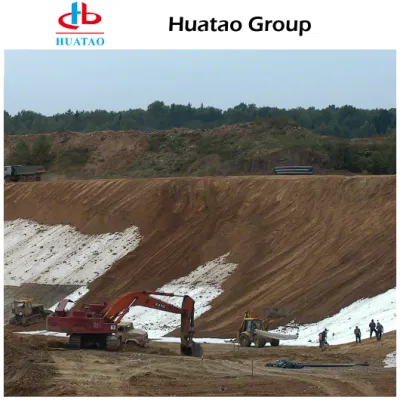

Application
1. Nonwoven geotextiles have a wide range of applications in civil
2. environmental engineering and construction projects.
3. Water conservancy project and hydropower project
4. Road paving, railway, highway ...
5. Airport and port
6. River bank protection and tunnel
7. Environmental protection, etc
PET non woven geotextile made of Polyester stable fiber by a nonwoven needle punched manufacture process. without chemical additives and heat treatment. It is an environmentally friendly construction material. Also can be treated by UV Resistance, Thermal Bonded, Color Custom-made, etc.
Property
Good flexibility, resistant to corrosion, resistant to acids and alkalis, anti-oxidation
Separation, filtration, drainage, reinforcement, protection, and maintenance function
Application
1. Nonwoven geotextiles have a wide range of applications in civil
2. environmental engineering and construction projects.
3. Water conservancy project and hydropower project
4. Road paving, railway, highway ...
5. Airport and port
6. River bank protection and tunnel
7. Environmental protection, etc
Polypropylene PP Staple Filter Needle Punched Non Woven Geotextile
PP non woven geotextile made of Polypropylene stable fiber by nonwoven needle punched manufacture process. without chemical additives and heat treatment. It is an environmentally friendly construction material.
Geotextiles Products as protection, filtration, or separation layer alternative to diverse terrain such as soil, rock, sand, and so on. Also can be treated by UV Resistance, Thermal Bonded, Color Custom-made, etc.
Application
1. Reinforcement in retaining wall backfill.
2. Strengthen the weak road and fix the cracks on the road.
3. Improve the stability of slope and reinforcement soil, avoid water and soil loss, and soil frozen injuries.
4. Isolation layer of artificial backfill soil stone with foundation and different tundra.
5. Filtration layer of drainage pipe or gravel sub-drain.
6. Vertical or horizontal drainage; Bury in the soil to release air pressure.
7. Reinforce the weak foundation of engineering roads, railways, embankments, and airports.
PP non woven geotextile made of Polypropylene stable fiber by nonwoven needle punched manufacture process. without chemical additives and heat treatment. It is an environmentally friendly construction material.
Geotextiles Products as protection, filtration, or separation layer alternative to diverse terrain such as soil, rock, sand, and so on. Also can be treated by UV Resistance, Thermal Bonded, Color Custom-made, etc.
Application
1. Reinforcement in retaining wall backfill.
2. Strengthen the weak road and fix the cracks on the road.
3. Improve the stability of slope and reinforcement soil, avoid water and soil loss, and soil frozen injuries.
4. Isolation layer of artificial backfill soil stone with foundation and different tundra.
5. Filtration layer of drainage pipe or gravel sub-drain.
6. Vertical or horizontal drainage; Bury in the soil to release air pressure.
7. Reinforce the weak foundation of engineering roads, railways, embankments, and airports.
Polyester PET Continuous Filament Non Woven Geotextile
This type of geotextile material is a Continuous filament. Non woven Geotextiles Products as protection, filtration, or separation layer alternative to diverse terrain such as soil, rock, sand, and so on. Also can be treated by UV Resistance, Thermal Bonded, Color Custom-made, etc.
Property
1. High strength, good creep property, excellent erosion resistance , aging resistance and heat resistance
2. Separation , filtration, drainage, reinforcement, protection, and maintenance function
Application
1. Filtration of soils in drainage applications by retaining soil particles while allowing for the free flow of water
2. Separation and stabilization in road and railway construction
3. Prevention of soil movement in erosion control measures
4. Cushioning and protection in many containment projects
This type of geotextile material is a Continuous filament. Non woven Geotextiles Products as protection, filtration, or separation layer alternative to diverse terrain such as soil, rock, sand, and so on. Also can be treated by UV Resistance, Thermal Bonded, Color Custom-made, etc.
Property
1. High strength, good creep property, excellent erosion resistance , aging resistance and heat resistance
2. Separation , filtration, drainage, reinforcement, protection, and maintenance function
Application
1. Filtration of soils in drainage applications by retaining soil particles while allowing for the free flow of water
2. Separation and stabilization in road and railway construction
3. Prevention of soil movement in erosion control measures
4. Cushioning and protection in many containment projects
Polypropylene PP Continuous Filament Non Woven Geotextile
Huatao Non Woven Geotextiles Products as protection, filtration or separation layer alternative to diverse terrain such as soil, rock, sand, and so on. Also can be treated by UV Resistance, Thermal Bonded, Color Custom-made, etc.
Nonwoven and woven Geotextiles refer to permeable synthetic textile materials. Generally, it is produced from polyester or polypropylene polymers. Geotextiles are used to increase soil stability, provide erosion control, or aid in drainage.
An array of geotextiles can be produced using varied polymers and manufacturing processes that make them useful in a variety of civil construction applications. Geotextile and geosynthetics products such as geogrids, geonets, and others are also suitable in geotechnical and environmental engineering design.
Huatao Non Woven Geotextiles Products as protection, filtration or separation layer alternative to diverse terrain such as soil, rock, sand, and so on. Also can be treated by UV Resistance, Thermal Bonded, Color Custom-made, etc.
Nonwoven and woven Geotextiles refer to permeable synthetic textile materials. Generally, it is produced from polyester or polypropylene polymers. Geotextiles are used to increase soil stability, provide erosion control, or aid in drainage.
An array of geotextiles can be produced using varied polymers and manufacturing processes that make them useful in a variety of civil construction applications. Geotextile and geosynthetics products such as geogrids, geonets, and others are also suitable in geotechnical and environmental engineering design.
Polyester PET Staple Filter Needle Punched Non Woven Geotextile
| No. | Specification(g/m2) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 1000 | Remark |
| 1 | Weight deviation, % | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | -6 | -6 | |
| 2 | Thickness, mm≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | 4.1 | 4.5 | 5.0 | 5.8 | |
| 3 | Width, deviation,% | -0.5 | |||||||||||||
| 4 | Breaking strength, KN/m ≥ | 2.5 | 4.5 | 6.5 | 8.0 | 9.5 | 11.0 | 12.5 | 14.0 | 16.0 | 19.0 | 22.0 | 25.0 | 31.0 | MD and CD |
| 5 | Breaking elongation,% | 25~100 | |||||||||||||
| 6 | CBR bursting strength, KN≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 3.7 | 4.0 | 5.0 | |
| 7 | Sieve Size O90 mm | 0.07~0.2 | |||||||||||||
| 8 | Vertical permeability coefficient, cm/s | Kx(10-1~10-3 ) | K=1.0 ~9.9 | ||||||||||||
| 9 | Tear strength, KN≥ | 0.08 | 0.12 | 0.16 | 0.20 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.53 | 0.60 | 0.75 | MD and CD |
Polypropylene PP Staple Filter Needle Punched Non Woven Geotextile
| No. | Items | unit | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | ||
| 1 | Weight Variation | % | ±5 | ±6 | ±6 | ±6 | ±6 | ±6 | ±6 | ±6 | ||
| 2 | Grab strength | MD | ≥N | 350 | 700 | 1100 | 1400 | 1800 | 2200 | 2800 | 3400 | |
| CD | 350 | 700 | 1100 | 1400 | 1800 | 2200 | 2800 | 3400 | ||||
| 3 | Grab elongation | MD | % | 50~90 | 50~100 | |||||||
| CD | 50~90 | 50~100 | ||||||||||
| 4 | Trapezoid Tear | MD | ≥N | 135 | 280 | 350 | 400 | 480 | 550 | 650 | 750 | |
| CD | 135 | 280 | 350 | 400 | 480 | 550 | 650 | 750 | ||||
| 5 | CBR bursting strength | ≥KN | 1.0 | 2.1 | 3.2 | 3.8 | 4.5 | 5.5 | 6.5 | 7.5 | ||
| 6 | Breaking strength | MD | ≥KN | 3.5 | 8 | 12 | 18 | 24 | 30 | 40 | 50 | |
| CD | 3.5 | 8 | 12 | 18 | 24 | 30 | 40 | 50 | ||||
| 7 | Breaking elongation | MD | % | 40~65 | 50~80 | |||||||
| CD | 40~65 | 50~80 | ||||||||||
| 8 | Puncture strength | ≥N | 180 | 360 | 550 | 750 | 900 | 1150 | 1450 | 2000 | ||
| 9 | Thickness | mm | 1.4~1.7 | 1.8~2.2 | 2.4~2.8 | 3.0~3.5 | 3.6~4.0 | 4.0~4.4 | 4.8~5.2 | 5.6~6.0 | ||
| 10 | Peel strength | N/5cm | ≥80 | ≥100 | ||||||||
| 11 | Acid and alkali | % | Keep the rate of breaking strength≥90% Keep the rate of breaking elongation≥90% | |||||||||
| 12 | Sieve size O90 | mm | ≤0.1 | |||||||||
| 13 | Vertical permeability coefficient | Cm/s | ≤0.2 | |||||||||
Polyester PET Continuous Filament Non Woven Geotextile
| No. | Specification(g/m2) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remark | |||||||
| 1 | Weight deviation, % | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -4 | -4 | -4 | | |||||||
| 2 | Thickness, mm≥ | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 | ||||||||
| 3 | Width, deviation,% | -0.5 | ||||||||||||||||||
| 4 | Breaking strength, KN/m ≥ | 4.5 | 7.5 | 10.5 | 12.5 | 15 | 17.5 | 20.5 | 22.5 | 25 | 30 | 40 | MD and CD | |||||||
| 5 | Breaking elongation,% | 40~80 | ||||||||||||||||||
| 6 | CBR bursting strength, KN≥ | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3.0 | 3.5 | 4.0 | 4.7 | 5.5 | 7.0 | ||||||||
| 7 | Sieve Size O90 mm | 0.07~0.2 | ||||||||||||||||||
| 8 | Vertical permeability coefficient, cm/s | Kx(10-1~10-3 ) | K=1.0 ~9.9 | |||||||||||||||||
| 9 | Tear strength, KN≥ | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.70 | 0.82 | 1.10 | MD and CD | |||||||
Polypropylene PP Continuous Filament Non Woven Geotextile
Contact us directly to get the Technical specification
