Basic Info.
Model NO.
geocell
Color
Black
Application
Retaining Wall, Dam, Railway, Highway
Function
Distributing Load, Anti-deforming, Non-skid
Feature
Corrosion Resistant, Oxidation Resistance, Chemical Stability, Wear-resistant
Material
HDPE
Height
50/75/100/150/200mm
Welding Distance
300-1000mm
Peel Strength
140n/10cm
Hole
with Hole / Without Hole
Surface
Smooth/Textured
Transport Package
Plastic Packing Belts or Pallets
Specification
1.1-1.6mm
Trademark
HongLi
Origin
Shandong, China
HS Code
392690909
Production Capacity
50000sqm/Per Day Depends on The Specification
Packaging & Delivery
Package Size
605.80cm * 243.80cm * 259.10cm
Package Gross Weight
30000.000kg
Product Description
| Material Properties | unit | | | | | Tested Method | ||
| Cell Depth | mm | 75 | 100 | 150 | 200 | | ||
| Polymer Density | g/cm3 | 0.935-0.965 | ASTM D 1505 | |||||
| Enviroment Stress Crack Resistance | Hours | >400 | ASTM D 5397 | |||||
| Enviroment Stress Crack Resistance | Hours | 6000 | ASTM D 1693 | |||||
| Carbon Black Content | % | 1.5%-2.0% | ASTM D 1603 | |||||
| Nominal Sheet Thickness Before Texturing | mm | 1.27-5%,+10% | ASTM D 5199 | |||||
| Nominal Sheet Thickness After Texturing | mm | 1.27-5%,+10% | ASTM D 5199 | |||||
| Strip Puncture Resistance | N | 450 | ASTM D 4833 | |||||
| Seam Peel Strength | N | 1065 | 1420 | 2130 | 2840 | EN ISO 13426-1B | ||
| Seam Efficiency | % | GRI100 | GRI-GS13 | |||||
| Norminal Expanded Cell Size(width x length) | mm | 320x287,475x508 etc | | |||||
| Norminal Expanded Panel Size(width x length) | m | 2.56x8.35,4.5x5.0,6.5x4.5,6.1x2.44 | | |||||

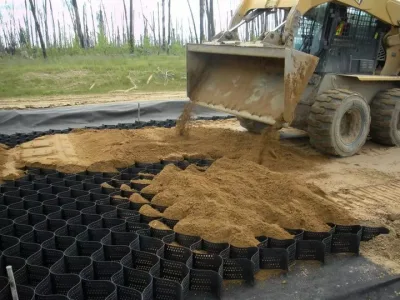

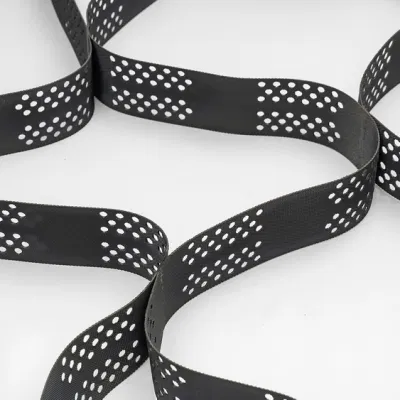

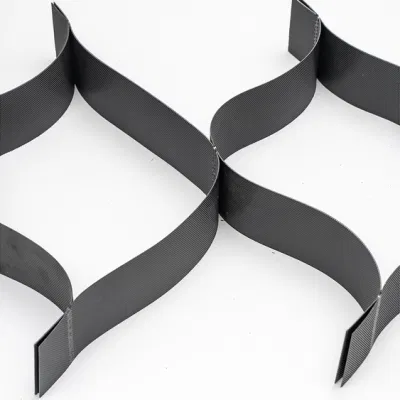

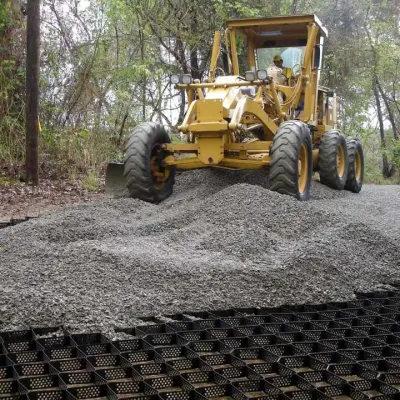

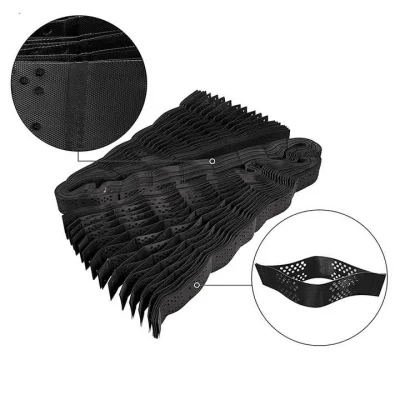

Mesh SizeFiberglass geogrid composite geotextile by glue Plastic geocell cellular confinement system is three dimensional , honeycomb like structures manufactured from high density polyethylene and jointly welded by ultrasonic technique . It is flexible to fold during the transport and installation on construction site .The geocell nets will be filled with soils , granular, cements or other on-site infill materials when stretched into web structures , which has powerful and rigid confinement in the lateral and vertical sides.
Characteristics of HDPE paving plastic gravel stabilized geocell:
1. Light material, wear-resistant, stable chemical performance, anti-aging, acid and alkali resistant, suitable for different soil, desert and other geological conditions.
2. High lateral limit, anti slip, anti deformation, effectively enhancing the support capacity and loose load function of the roadbed.
3. High load-bearing capacity, good dynamic performance, and strong erosion resistance.
4. The geometric dimensions can be changed to meet different needs of the project, such as height and welding distance.
5. Scalable, small loading capacity, convenient joints, and fast construction speed.
6. Materials can be used on-site during construction to reduce construction costs and facilitate transportation after folding.
HDPE Paving Plastic Gravel Stabilizer Geocell Specifications:
1.Cell depth: 50mm , 100mm , 150mm , 200mm , 250mm
2. Welding space: 330mm~1600mm
3. Thickness: 1.0mm , 1.2mm , 1.5mm , 1.8mm
4. Appearance: smooth / textured
