Basic Info.
Model NO.
15cm
Thickness of Sheet
0.5-2.0mm
Height
5cm-20cm
Welding Distance
330-700mm
MOQ
2000sqm
Quality Warranty
24 Months
Service-1
Technical Data Sheet
Service-2
Free Sample
Service-3
Provide Overall Solution
Transport Package
with Pallet
Specification
5cm-20cm height
Trademark
HONGXIANG
Origin
Dezhou Shandong Province
HS Code
3920109090
Production Capacity
8000sqm/Day
Product Description
HDPE textured gravel stabilizer/soil stabiliser geocell
Product Description
Plastic Geocell for Reforcement treatment for soft soil foundation and steep slope protection highway airport desert mountain and swamp land
Plastic geocell is one new type geosynthetics material, basic sheet is high-molecular polymer, connected by rivets or ultrasonic welded to three-dimensional network structure, unfold it and fill in sand, gravel and clay etc. When used at construction site. According to customer ' s requirement, cut holes or carve arabesquitic in order to increase its lateral permeable ability, also increase the friction and binding force with the foundation material.
Specification of Plastic Geocell
for Reforcement treatment for soft soil foundation and steep slope protection highway airport desert mountain and swamp land
TG LG5, TGLG8, TG LGIO, TG LG15, TG LG20 (cm)
Property of Plastic Geocell
for Reforcement treatment for soft soil foundation and steep slope protection highway airport desert mountain and swamp land
I. Retractile, foldable when transportation, pulled to network when construction, fill in the soil, gravel, concrete etc. Loose materials, form one structure with strong lateral limitations andhigh stiffness
2. Material is light, abrasion resistance, chemical properties stable, resist photooxidation aging, acid and alkali resistant, suitable for different soil and soil conditions, such as desert
3. Good lateral restrict and prevent slippery, prevent deformation, effectively enhance the bearing capacity of subgrade and dispersed loads function
4. The geocell height and welding distance etc. Geometric dimensions are all changeable in order to meet the requirements of different projects
5. Capable and easily be expanded or contracted, small size for transportation, easy for connect and construction speed is fast

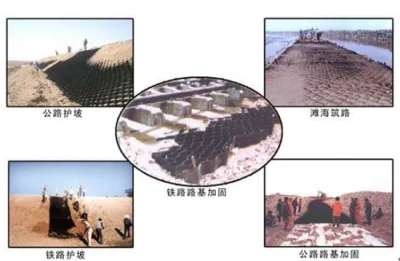

Application of Plastic Geocell
for Reforcement treatment for soft soil foundation and steep slope protection highway airport desert mountain and swamp land
1. Used for the stability of railway roadbed
2. To stabilize the desert highway roadbed
3. Used in the governance of shallow water channel
4. Used for the foundation reinforcement of retaining wall, wharf, levee
5. For the management of desert, beaches and river banks
echnical data sheet
Packaging & Shipping
Our Services
Quality assurance
1.On a regular basis or as per your request,we entrust national testing agencies to conduct quality inspections
2.Strictly in accordance with the ISO9001-2008 international quality system standard,we monitor and manage the whole process throughout production,quality testing,and measurement to ensure product quality
3. For quality-related construction delay or substandard construction(except for damage or losses due to customer's responsibility or irresistible natural disasters),we have refunding,replacement,and repair services.We will respond to customers' feedbacks on quality issues within 24 hours.
After-sales service
1.In order to provide customers with comprehensive technical support,we will provide technical and other related information upon request in a timely manner.
2.In required,we will appoint specialized technicians to the construction site to give technical trainings to construction people,and offer technical guidance throughout the whole construction process.
3.For damage due to shipment and delivery,after we receive the complaint,we will check the issure through provided pictures and videos.If our responsibility is confirmed,we wil offer free replacement.
4.When the construction is completed,as your request,our technical staff may participate in the final acceptance.
Company Information
Hongxiang New Geo-Material Co.,Ltd in leader of the geotextile, geomembrane and GCL in China. It was set up in June,1987 and become a provincial enterprise in Oct.1997. It occupies a land of 300,000 square meters, with total asset RMB320,000,000. There are 1200employees, among them, there are 268 professional and technical personnel. We have 56 production lines mainly produce needle-punched geotextile, filament spunbond geotextile, high strength geotextile, 3-layer co-extrusion geomembrane, dripping membrane, heart treated compound geomembrane 8m in width. PE/PVC/EVA press prolong geombrane, textured geomembrane, ant-skid geomembrane, uniaxial geogrid, biaxial geogrid, steel-plastic geogrid, geocell, geomat, woven geotextile, split yarn woven geotextile and so on. Owning the word leading production line of geosynthetics. We have our own R&D department and our own test room which reach to national level.
Our annual productivity is as below: 50 million square meters of needle-punched geotextile; 55 million square meters of compound geomembrane; 9,000 metric tons of PE geomembrane; 36 million square meters of macromolecule waterproof materials; 8 million square meters of geosynthetic clay liners (GCL); 5 million square meters of single direction geogrid; 8 million square meters of double-direction geogrid; 1 million square meters of geocell; 4 million square meters of geonet; 3 million square meters of tri-dimensional geomat; 10 million square meters of woven geotextile; 9,000 metric tons of geomembrane; 300 metric tons of PP long fiber; 4,000 metric tons of PP long fiber; 6 million plastic woven bags.
At present, we are one of the largest manufacturers of geosynthetic in China. Our trademark is "Hongxiang", registered in 2000. We passed the evaluation of ISO9001 in 2001 as well as ISO14001 certification. Our products were appraised as qualified products during the National Product Quality Selective Examination in 2004. We participated in the drafting of the National Standard of Geosynthetics of the People's Republic of China in 1998. We are also a participator to draft two national standards of short fiber needle-punched geotextile and non-woven compound geomembrane.
FAQ:
1. Where is our company located ?
Economic Development Zone, Ling County, Dezhou City, Shandong Province. China.
2. Can you send samples to us ?
Yes , free samples could be provided , but customer need pay for the freight cost . After order placed , the freight charge could be refund .
3. What's your Payment term ?
T/T , L/C , Western Union.
4. What's your delivery method ?
By sea , By train , By ari, depend on your country.
Product Description
Plastic Geocell for Reforcement treatment for soft soil foundation and steep slope protection highway airport desert mountain and swamp land
Plastic geocell is one new type geosynthetics material, basic sheet is high-molecular polymer, connected by rivets or ultrasonic welded to three-dimensional network structure, unfold it and fill in sand, gravel and clay etc. When used at construction site. According to customer ' s requirement, cut holes or carve arabesquitic in order to increase its lateral permeable ability, also increase the friction and binding force with the foundation material.
Specification of Plastic Geocell
for Reforcement treatment for soft soil foundation and steep slope protection highway airport desert mountain and swamp land
TG LG5, TGLG8, TG LGIO, TG LG15, TG LG20 (cm)
| Item No. | Hight (mm) | Weld distance (mm) | Thickness of the Sheet (mm) | Tensile strength of weldig points( N/cm) | Tensile strength of connection of cells (N/cm) | Tensile srength at yield of each sheet (N/mpa) |
| GS-50-400 | 50 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-75-400 | 75 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-100-400 | 100 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-150-400 | 150 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
| GS-200-400 | 200 | 330≤A<1000 | ≥1.1 | ≥100 | ≥120 | ≥20 |
Property of Plastic Geocell
for Reforcement treatment for soft soil foundation and steep slope protection highway airport desert mountain and swamp land
I. Retractile, foldable when transportation, pulled to network when construction, fill in the soil, gravel, concrete etc. Loose materials, form one structure with strong lateral limitations andhigh stiffness
2. Material is light, abrasion resistance, chemical properties stable, resist photooxidation aging, acid and alkali resistant, suitable for different soil and soil conditions, such as desert
3. Good lateral restrict and prevent slippery, prevent deformation, effectively enhance the bearing capacity of subgrade and dispersed loads function
4. The geocell height and welding distance etc. Geometric dimensions are all changeable in order to meet the requirements of different projects
5. Capable and easily be expanded or contracted, small size for transportation, easy for connect and construction speed is fast
Application of Plastic Geocell
for Reforcement treatment for soft soil foundation and steep slope protection highway airport desert mountain and swamp land
1. Used for the stability of railway roadbed
2. To stabilize the desert highway roadbed
3. Used in the governance of shallow water channel
4. Used for the foundation reinforcement of retaining wall, wharf, levee
5. For the management of desert, beaches and river banks
echnical data sheet
| Product Type | Height(mm) | Welding Distance(mm) | Thickness(mm) | Tensile Strength of Welding Points(N/cm) | Tensile Strength of Connection of Cells(N/cm) | Tensile Strength at Yield of Each Sheet(MPa) |
|---|---|---|---|---|---|---|
| Smooth and Not Perforated | 50≤H≤250 | 330≤A≤1000 | 1.0~1.4 | ≥100 | ≥120 | ≥20 |
| Smooth and Perforated | 50≤H≤250 | 330≤A≤1000 | 1.0~1.4 | ≥100 | ≥120 | ≥20 |
| Textured and Not Perforated | 50≤H≤250 | 330≤A≤1000 | 1.5~1.7 | ≥100 | ≥120 | ≥20 |
| Textured and Perforated | 50≤H≤250 | 330≤A≤1000 | 1.5~1.7 | ≥100 | ≥120 | ≥20 |
Packaging & Shipping
Our Services
Quality assurance
1.On a regular basis or as per your request,we entrust national testing agencies to conduct quality inspections
2.Strictly in accordance with the ISO9001-2008 international quality system standard,we monitor and manage the whole process throughout production,quality testing,and measurement to ensure product quality
3. For quality-related construction delay or substandard construction(except for damage or losses due to customer's responsibility or irresistible natural disasters),we have refunding,replacement,and repair services.We will respond to customers' feedbacks on quality issues within 24 hours.
After-sales service
1.In order to provide customers with comprehensive technical support,we will provide technical and other related information upon request in a timely manner.
2.In required,we will appoint specialized technicians to the construction site to give technical trainings to construction people,and offer technical guidance throughout the whole construction process.
3.For damage due to shipment and delivery,after we receive the complaint,we will check the issure through provided pictures and videos.If our responsibility is confirmed,we wil offer free replacement.
4.When the construction is completed,as your request,our technical staff may participate in the final acceptance.
Company Information
Hongxiang New Geo-Material Co.,Ltd in leader of the geotextile, geomembrane and GCL in China. It was set up in June,1987 and become a provincial enterprise in Oct.1997. It occupies a land of 300,000 square meters, with total asset RMB320,000,000. There are 1200employees, among them, there are 268 professional and technical personnel. We have 56 production lines mainly produce needle-punched geotextile, filament spunbond geotextile, high strength geotextile, 3-layer co-extrusion geomembrane, dripping membrane, heart treated compound geomembrane 8m in width. PE/PVC/EVA press prolong geombrane, textured geomembrane, ant-skid geomembrane, uniaxial geogrid, biaxial geogrid, steel-plastic geogrid, geocell, geomat, woven geotextile, split yarn woven geotextile and so on. Owning the word leading production line of geosynthetics. We have our own R&D department and our own test room which reach to national level.
Our annual productivity is as below: 50 million square meters of needle-punched geotextile; 55 million square meters of compound geomembrane; 9,000 metric tons of PE geomembrane; 36 million square meters of macromolecule waterproof materials; 8 million square meters of geosynthetic clay liners (GCL); 5 million square meters of single direction geogrid; 8 million square meters of double-direction geogrid; 1 million square meters of geocell; 4 million square meters of geonet; 3 million square meters of tri-dimensional geomat; 10 million square meters of woven geotextile; 9,000 metric tons of geomembrane; 300 metric tons of PP long fiber; 4,000 metric tons of PP long fiber; 6 million plastic woven bags.
At present, we are one of the largest manufacturers of geosynthetic in China. Our trademark is "Hongxiang", registered in 2000. We passed the evaluation of ISO9001 in 2001 as well as ISO14001 certification. Our products were appraised as qualified products during the National Product Quality Selective Examination in 2004. We participated in the drafting of the National Standard of Geosynthetics of the People's Republic of China in 1998. We are also a participator to draft two national standards of short fiber needle-punched geotextile and non-woven compound geomembrane.
FAQ:
1. Where is our company located ?
Economic Development Zone, Ling County, Dezhou City, Shandong Province. China.
2. Can you send samples to us ?
Yes , free samples could be provided , but customer need pay for the freight cost . After order placed , the freight charge could be refund .
3. What's your Payment term ?
T/T , L/C , Western Union.
4. What's your delivery method ?
By sea , By train , By ari, depend on your country.
