Basic Info.
Model NO.
GeoMax Geocell
Surface
Smooth/Textured
Sheet Thickness
0.9mm to 2.0mm
Hole Size
10mm
Certification
CE, ISO
Colour
Black, Green, Yellow, Sand, Tan
Peeling Strength
10kn/M, 14.2kn/M, 16.5kn/M, 20kn/M
Welding Spacing
300mm - 2000mm
Transport Package

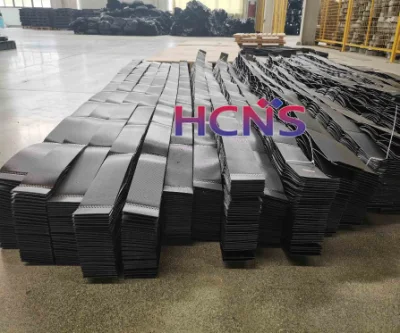

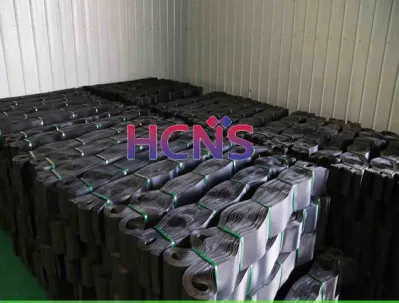

Packed on Pallets
Specification
ASTM/GB
Trademark
GeoMax
Origin
Anhui, China
HS Code
3926909090
Production Capacity
35, 000m2 Per Day
Product Description
GeoMax® Geocell

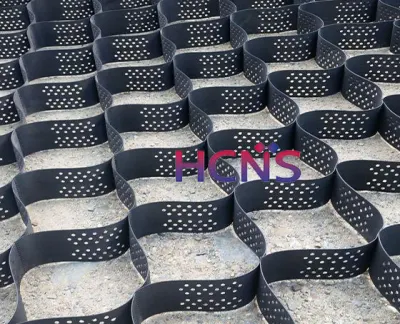

Geomax® Geocell is a lightweight and flexible three-dimensional, expandable panels made from High-Density Polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.
Geomax Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc.

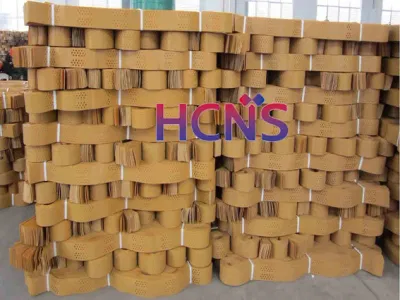

More colour can be customized, even different colour on both side. (Green, Turquoise, Tan, Yellow, Sand) GeoMax® Strengths
1. Advanced Ultrasonic Welding Machine
GeoMax® geocell used the most advanced ultrasonic welding equipment in China, which our company are involved in research and development, the compliance rate of seam peeling strength is up to 100%.
Our company has 10 geocell production line, the daily output of the geocell excceds 35,000m2.
2. Advanced Inspection Equipment
Our company is specialized in geocell for over 20 years, as a leading manufacturer in China, our company has strong product development capacity, advanced production technology and equipment, the products can meet the standards of superb quality and diversification.
Our company has complete sets of production equipment, advanced detection equipment and strong technical force, and established long-term cooperative relations with colleages and universities.
Specification
| Section Properties | Unit | - | GeoMax® Geocell | |||||||
| Welding Spacing | mm | - | 300 - 2000 | |||||||
| Cell Depth | mm | - | 50, 75, 100, 125, 150, 200, 300 | |||||||
| Sheet Thickness | mm | - | 0.9 - 2.0 | |||||||
| Index Properties | Unit | Test Method | Value | |||||||
| Polymer | - | - | HDPE | |||||||
| Density | g/cm3 | ASTM D 1505 | ≥0.94 | |||||||
| Carbon Black Content | % | ASTM D 1603 | ≥1.5 | |||||||
| ESCR | hrs | ASTM D 1693 | ≥6000 | |||||||
| Tensile Strength | kN/m | ASTM d 638 | ≥25 | |||||||
| Seam Peel Strength | N | US ACE GL-86-19 | ≥1000; ≥1420; ≥1650; ≥2000 | |||||||
| Perforations | Polyethylene strip is perforated with horizontal rows of maximum 10mm diameter holes. Cell perforations area is less than 12% of cell surface area | |||||||||
GeoMax® on Exhibition
GeoMax® Geocell on the exhibition hosted by IGS & Factory Gallery
Application
GeoMax® Geocell is the ideal product for soil reinforcement. It can greatly improve the bear capacity thanks to itsthree- dimensional structure. In many scenarios (various roads, airstrips, container yards, parking lots), in order to improve the bearing capacity of the road surface, reduce uneven settlement, and reduce maintenance costs in the later period, the geocell will be the best choice. Besides, geocell is widely used in slope protection, retaining walls, channel lining.
Retaining Walls
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong, stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity while reducing the amount of aggregate material required to extend the service life of roads.
Cellular Confinement Systems have been used to improve the performance of both paved and unpaved roads by reinforcing the soil in the subgrade-base interface or within the base course. The effective load distribution of geocell creates a strong, stiff 3D cellular mattress which can reduce vertical differential settlement into soft subgrades, improves shear strength, and enhances load-bearing capacity while reducing the amount of aggregate material required to extend the service life of roads.
Slope Protection
HCNS® Geocell slope protection systems may be designed with a variety of infill materials to meet project requirements for aesthetics, stability, environmental impact, material availability, and erosion control. The system also provides protection to impervious liners.
HCNS® Geocell slope protection systems may be designed with a variety of infill materials to meet project requirements for aesthetics, stability, environmental impact, material availability, and erosion control. The system also provides protection to impervious liners.
Road Support

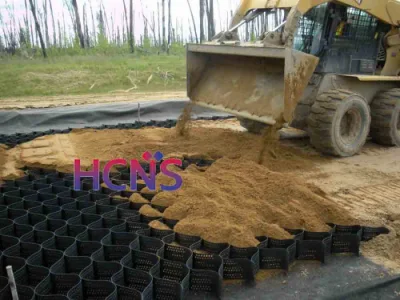

The HCNS® Geocell load support system is a highly effective, economical solution to the road, parking, and yard surface problems that result from subgrade material failure or surface or base material instability. Under concentrated or distributed loads, the 3D cellular structure confines infill material and controls the shearing, lateral and vertical movement of the infill material.
The HCNS® Geocell load support system is a highly effective, economical solution to the road, parking, and yard surface problems that result from subgrade material failure or surface or base material instability. Under concentrated or distributed loads, the 3D cellular structure confines infill material and controls the shearing, lateral and vertical movement of the infill material.
Channel Lining
Constructing GEOCELL drainage and diversion channels is a fast-to-deploy and economical means to create stormwater conveyance across tailings on mine sites. GEOCELL-confined aggregate channels can reduce rock size 10X, and make beneficial use of the mine's on-site aggregate resources. With concrete infill, GEOCELL channels offer flexible, hard-armor protection, stability and resistance to higher velocity and continuous flows.
Constructing GEOCELL drainage and diversion channels is a fast-to-deploy and economical means to create stormwater conveyance across tailings on mine sites. GEOCELL-confined aggregate channels can reduce rock size 10X, and make beneficial use of the mine's on-site aggregate resources. With concrete infill, GEOCELL channels offer flexible, hard-armor protection, stability and resistance to higher velocity and continuous flows.
