Product Description

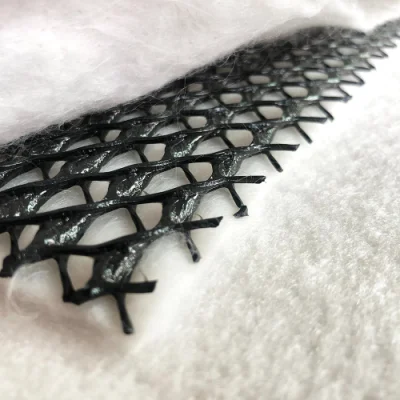

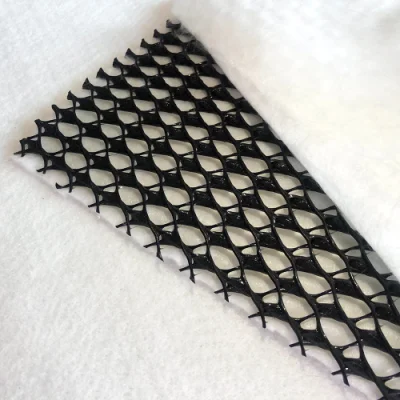

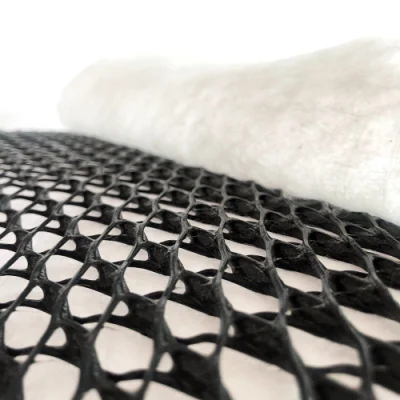

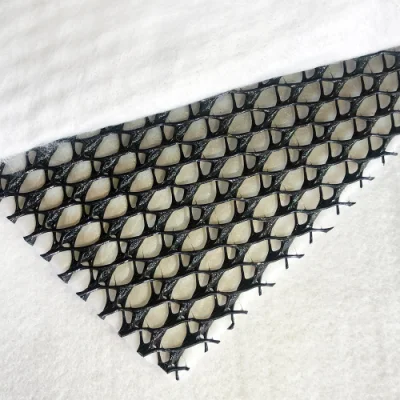

Three dimensional composites drainage network is a new type of drainage geotextile material. It is one three-dimension geonet composited with two needle-punched non-woven geotextiles. Three dimensional composites drainage network consists of atri-dimension thick vertical rib, and a inclined rip on the top and bottom. Double sided adhesive seepage geotextiles form a "filtration- drainage - ventilation - protection" overall performance, and can replace the traditional sand and gravel. Its pure maintenance system can drain underground water quickly, block the capillary water under high load in construction, keep certain thickness and provide good water conductivity property. At the same time, it can also play the role of isolation and foundation reinforcement. Mainly used in railway, highway, tunnel, municipal engineering, reservoir, slope protection and other drainage works, and the effect is remarkable.
| Property | Unit | NLDG 50/D200 | NLDG 63/D200 | NLDG 70/D200 | NLDG 80/D200 | NLDG 90/D200 | Test Standard |
| Drainage Net Specification | |||||||
| Hydraulic conductivity (MD) | m2/s | 2.8×10-3 | 2.8×10-3 | 3.2×10-3 | 4.0×10-3 | 5 x10-3 | ASTM D4716 |
| Puncture Resistance | KN/m | 0.17 | 0.17 | 0.17 | 0.17 | 0.17 | ASTM D7005 |
| Core Material Geonet Specification | |||||||
| Thickness | mm | 5 | 6.3 | 7 | 8 | 9 | ASTM D5199 |
| Density | g/cm-3 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | ASTM D1505 |
| Carbon Black Content | % | 2 | 2 | 2 | 2 | 2 | ASTM D1603 |
| Tensile strength (MD) | kN/m | 8 | 10 | 12 | 14 | 16 | ASTM D7199 |
| Hydraulic conductivity (MD) | m2/s | 6 | 8 | 10 | 12 | 14 | ASTM D4716 |
| Geotextile Specification | |||||||
| Unit weight | g/m2 | 200 | 200 | 200 | 200 | 200 | / |
| Geotextile type | Continuous filament non-woven geotextile | ||||||
| Fatures: | Application: |
| 1.Keep long time stable water conductivity. 2.High tensile strength and shearing strength. 3.Anti-corrosion, anti-acid and long service life. 4.It can bear compression loading over 2000 KPa. 5. Excellent drainage function and long time high press loading. 6. Construction convenient, shorten the construction period and reduce costs. | 1. Tunnel drainage. 2. Landfill drainage. 3. Railway drainage. 4. Retaining walls drainage. 5. Highway roadbed drainage. 6. Underground structure drainage. 7. Garden and playground drainage. |
