Introduction:

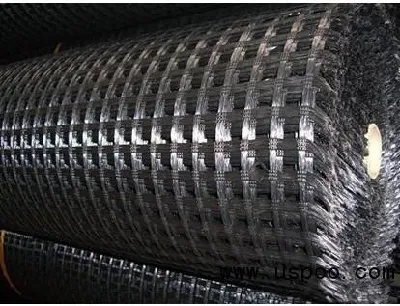

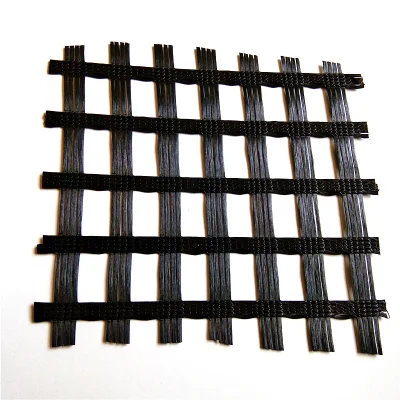

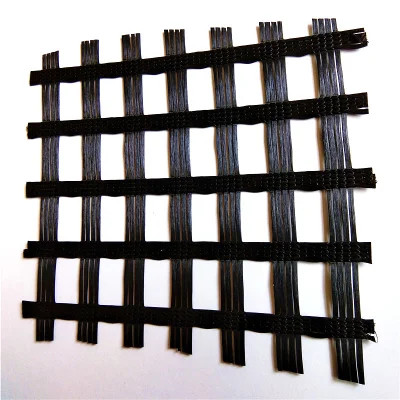

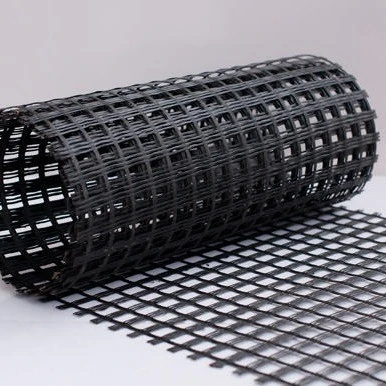

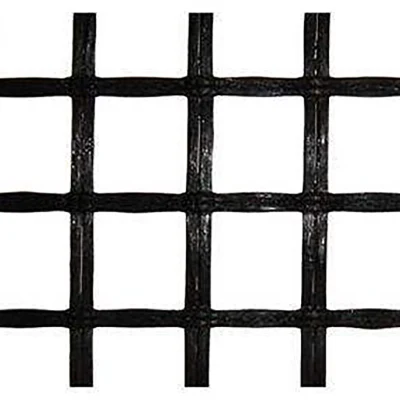

Fiberglass geogrid is a kind of plane network shape material that selects excellent reinforcement non-alkali fiberglass yarn. It is weaven in to base material by using foreign advanced warp knitter and adopts warp knitted directional structure, It make full use of yarn strength in textile, improves its chemical performance and makes it have good tension resistance, tearing resistance and creep resistance and is formed by excellent modified asphalt coating treatment. It follows similar and compatible principle, lays stress on its synthetic performance with asphalt mixture, protects glass fiber base material full and improve wearing resistance and sharing force resistance of base material so as to make road surface reinforce, to prevent highway harm such as crack and rut from occurring and to solve the problem that asphalt rode surface is difficult for reinforcement.
Features:
The products has high intensity, low elongation ratio, thermostable, high module, light weight, good toughness, anti-corrosive, long life and so on characteristics, and can be applied in the old cement road surface, runway's service, the dike, the river bank, the side slope protection, project domains and so on road bridge connection surface enhancement processing. It can reinforce the road surface and prevents the road surface rut fatigue cracking the hot-cold expansion crack and the following reflection crack, and can scatter the road surface bearing stress, extense road surface service life, the high tensile strength and the low elongation ratio, no long-term slow change. The physical chemistry stability and hot-stability are good, anti-weary dehiscence, anti-low temperature shrinkage crack and postpone reduction reflection crack.Application:
This product is used to strengthen the soft land, such as the railway, airport, irrigation work, and dyke, roadbed, and soft land loading capacity strengthen.
Performance parameter
Specification | EGA 30-30 | EGA 50-50 | EGA 80-80 | EGA 100-100 | EGA 120-120 | EGA 150-150 | EGA 200-200 | EGA 300-300 | |||||||
Mesh size(mm) | 25.4×25.4 or 12.5×12.5 or 50.8×50.8 | ||||||||||||||
Breaking strength(kN/m) | Warp direction | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 | ||||||
Across warp | 30 | 50 | 80 | 100 | 120 | 150 | 200 | 300 | |||||||
Elongation at break(%) | Warp direction | 4 | |||||||||||||
Across warp | 4 | ||||||||||||||
Thermal tolerance(ºC) | -100~280 | ||||||||||||||
Width≤(m) | 6 | ||||||||||||||
Features
High flexibility
High and low temperature resistance
High tensile strength in warp and weft directions
Application
Fiberglass geogrid is used to strengthen the soft land,such as railway, airport,irrigation work, and dyke, roadbed, and softland loading capacity strengthen.
Packaging : Standard export packing or as customers' requests.
Related product:
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment, or 100% irrevocable letter of credit.
