Basic Info.
Weight
100g~600g
Tensile Strength
From 20kn/M to 800kn/M
Roll Width
1m~6m
Roll Length
50m to 200m
Delivery
5days to 15 Days
Sample
Free Sample
Minimum Carbon Black
2%
Elongation at Max Load
13%
Certification
CE, ISO, SGS
Mesh Size
12.7mm*12.7mm, 25.4mm*25.4mm, 40mm*40mm, 50mm*50mm
Transport Package
Rolls
Specification
2m*100m or as your request
Trademark
Wantong
Origin
Taian City, Shandong Province
HS Code
392690
Production Capacity
50000square/Day
Product Description
Highway railway airports are widely used pp pet hdpe fiberglass polyester biaxial uniaxial geogrid

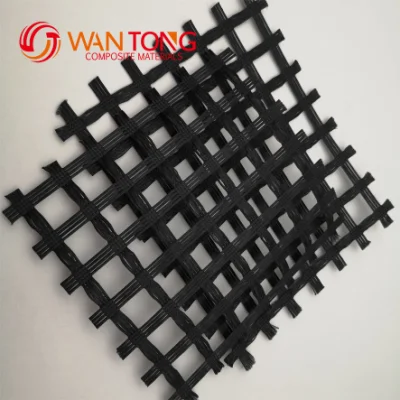

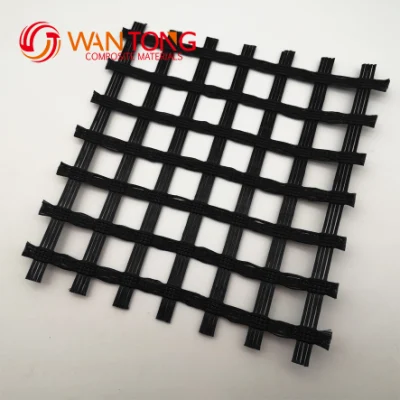

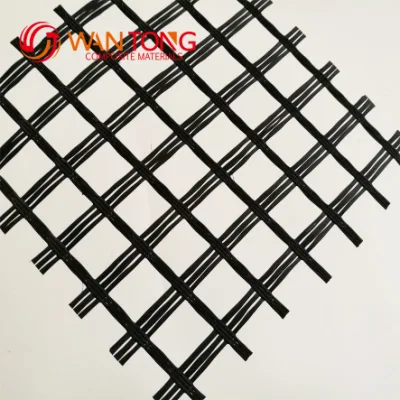

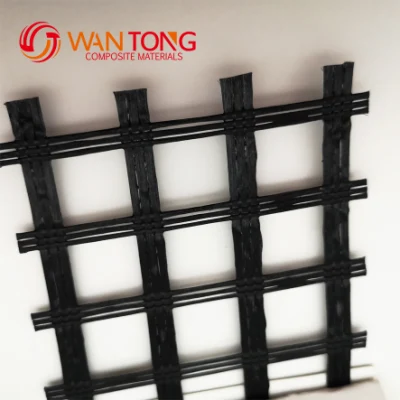

polyester geogrid is created through interlacing, usually at right angles, two or more yarns or filaments. PET geogrid is coated with polymer or nontoxic substance material for uv ,acid and alkali resistance and prevents the bio-decomposition.
400kn/M Polyester Woven Biaxial Geogrid for Soft Soil Reinforcement
| Property | Test Method | PET 20-20 | PET 30-30 | PET 40-40 | PET 50-50 | PET 60-60 | PET 80-80 | PET 100-100 | PET 110-110 | PET 120-120 | PET 150-150 | PET 400-400 | PET 800-800 | |
| Ultimate tensile strength(KN/m) | MD | EN ISO 10139 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 110 | 120 | 150 | 400 | 800 |
| CD | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 110 | 120 | 150 | 400 | 800 | ||
| Elongation at maximum load(%) | MD | 13 | ||||||||||||
| CD | 13 | |||||||||||||
| Approximate mesh size(mm) | 12.7*12.7 25.4*25.4 40*40 50*50 | |||||||||||||
| Roll width | 1m~6m | |||||||||||||
| Roll length | 50m~200m | |||||||||||||
Highway railway airports are widely used pp pet hdpe fiberglass polyester biaxial uniaxial geogrid
Warp-knitted polyester geogrid high tensile strength, low elongation, corrosion resistance, aging resistance, strong bite force with base material, light weight and drainage.
Applicable to dam and subgrade reinforcement, slope protection, wall reinforcement, permanent foundation support for large airports, parking lots, terminal yards, etc.
1. Increase the bearing capacity of the subgrade and extend the service life of the subgrade.
2. Prevent the road surface from collapsing or cracking, and keep the ground beautiful and tidy.
3. Prevent cracks in culverts.
4. Strengthen soil slopes to prevent soil erosion.
5. Stable greening environment supporting grass slope.
6. Can replace metal mesh for underground coal mine false roof network.
2. Prevent the road surface from collapsing or cracking, and keep the ground beautiful and tidy.
3. Prevent cracks in culverts.
4. Strengthen soil slopes to prevent soil erosion.
5. Stable greening environment supporting grass slope.
6. Can replace metal mesh for underground coal mine false roof network.
400kn/M Polyester Woven Biaxial Geogrid for Soft Soil Reinforcement
