Basic Info.
Product Description

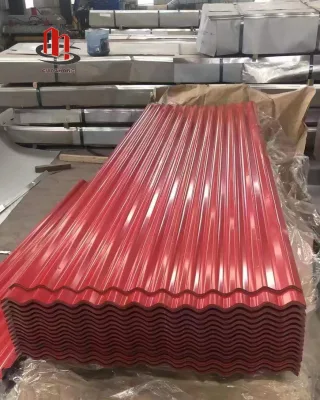

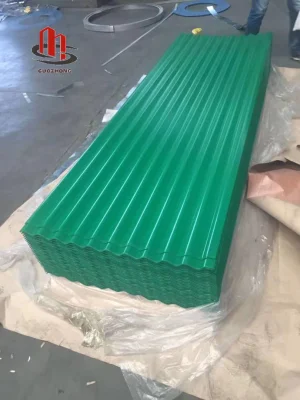

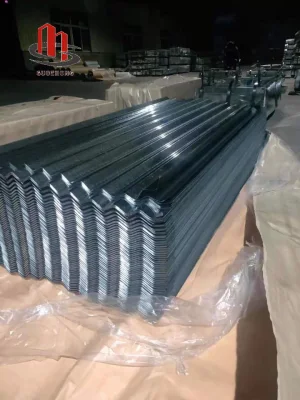

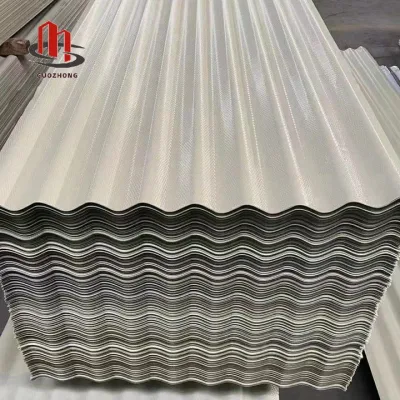

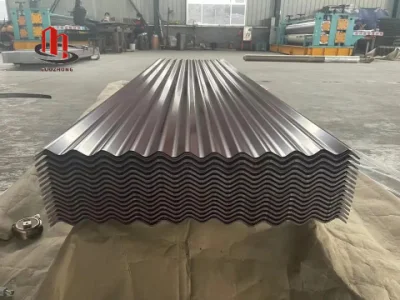

| Product Name | Container Sheet PPGL PPGI Long Life Galvanized Corrugated Sheet Corrugated Aluminium Zinc Board |
| Type | Bent Tiles, Malino Type, Classical Tile;Modern classical Tile; Shingle Tile; Rainbow Tile; Grained Tile |
| Thickness | 0.2~1.2mm |
| Weight | 2.6-3.2kg per piece |
| Color | red; black; green; charcoal black; weathered brown; grey; sapphire blue...12 standard colors or as your request |
| Shape | wave, T shape, trapezoid |
| Colour Type | RAL or Pantone color |
| Coating Type | PE SMP HDP PVDF |
| Paint Brand | Aoboli, NIPPON or customized |
| Zinc Coating | 17~60g |
| Base Metal | galvanized steel/galvalume steel |
| Application | Villas,townhouse, apartments, tourist destination building,and roof conversion project |
| Steel grades | Chemical composition% | <Residual Element> | Tensile strength (MPa) | Yield strength(MPa) | |||||
| C%< | Si%< | Mn%< | P%< | S%< | Alt< | ||||
| SGCC, DX51D+Z | 0.07 | 0.03 | 0.5 | 0.025 | 0.025 | 0.02 | Cu<0.10Ni<0.08Cr<0.10As<0.05Sn<0.05 | 270-500 | 140-280 |
| DX52D+Z | 0.06 | 0.03 | 0.45 | 0.025 | 0.025 | 0.02 | 270-420 | 140-300 | |
| DX53D+Z | 0.03 | 0.03 | 0.4 | 0.02 | 0.02 | 0.02 | 270-380 | 140-260 | |
| S220GD+Z | 0.17 | 0.3 | 1 | 0.035 | 0.3 | 0.02 | 300-440 | >220 | |
| S250GD+Z | 0.17 | 0.3 | 1 | 0.035 | 0.3 | 0.02 | 330-470 | >250 | |
| S350GD+Z | 0.2 | 0.55 | 1.6 | 0.035 | 0.3 | 0.02 | 420-560 | >350 | |
| Grade | Yield Strength MPa | tensile strength MPa not less than | Elongation after breaking b(l=80mm, b=20mm) % not less than Nominal thickness mm | r value is not less than | n value is not less than | |||
| 0.70- | 1.0- | ≥1.6 | ||||||
| DC01(St12) | 130~260 | 270 | 28 | 30 | 32 | 34 | - | |
| DC03(St13) | 120~240 | 270 | 32 | 34 | 35 | 36 | - | - |
| DC04(St14, St15) | 120~210 | 270 | 36 | 38 | 39 | 40 | 1.5 | 0.18 |
| DC05(BSC2) | 110~190 | 260 | 38 | 39 | 40 | 41 | 1.8 | 0.2 |
| DC06(St16,St14-T, BSC3) | 100~180 | 250 | 39 | 40 | 41 | 42 | 2 | 0.22 |
| Grade | Yield Strength MPa no greater than | Tensile Strength MPa not less than | Elongation after breaking b(Lo=50mm, b=25mm) % not less than Nominal thickness mm | |||||
| 0.25- | 0.40- | 0.60- | 1.0~ | ≥1.6 | ||||
| SPCC | - | 270 | 30 | 32 | 34 | 36 | 37 | 38 |
| SPCD | - | 270 | 32 | 34 | 36 | 38 | 39 | 40 |
| SPCE, SPCEN | 210 | 270 | 34 | 36 | 38 | 40 | 41 | 42 |
| Grade | Chemical Component % | |||||||
| C | Mn | P | s | Alta | Tib | |||
| DC01(St12) | C0.10 | ≤0.50 | ≤0.035 | ≤0.025 | ≥0.020 | - | ||
| DC03(St13) | ≤0.08 | ≤0.45 | ≤0.030 | ≤0.025 | ≥0.020 | - | ||
| DC04(St14,St 15) | ≤0.08 | ≤0.40 | ≤0.025 | ≤0.020 | ≥0.020 | - | ||
| DC05(BSC2) | ≤0.008 | ≤0.30 | ≤0.020 | ≤0.020 | ≥0.015 | ≤0.20 | ||
| DC06(St16,SH4-T,BSC3) | ≤0.006 | ≤0.30 | ≤0.020 | ≤0.020 | ≥0.015 | ≤0.20 | ||
| SPCC | ≤0.12 | ≤0.50 | ≤0035 | ≤0.025 | ≥0,020 | |||
| SPCD | ≤0.10 | ≤0.45 | ≤0.030 | ≤0.025 | ≥0.020 | |||
| SPCE. SPCEN | ≤008 | U0.40 | W0.025 | ≤0.020 | ≥0,020 | |||
| Alt greater than or equal to 0.015 when C is less than or equal to 0.01 for all grades | ||||||||
If you are interested in our products, you can feel free to contact us directly. Your specific enquiry will be highly treated. We will quote you our most favorable price.
Application advantages of color coated corrugated board:
1.Light weight: color coated corrugated board density is small, only 1/3 of steel;
2. High strength: color coated corrugated board can achieve high strength through composition configuration, processing and heat treatment methods;
3.Corrosion resistance: has a strong anti-rust ability, the formation of oxide layer, can prevent metal oxidation rust, good acid and alkali resistance;
4.Diverse surface treatment, beautiful: anodic oxidation, electrophoresis, chemical treatment, polishing, painting treatment;
5.Color coated corrugated board plasticity is good, easy to process;
6.Good electrical conductivity: non-magnetization and low spark sensitivity, can prevent electromagnetic interference and reduce the flammability in special environment;
7.Easy installation: color coated corrugated board can be riveted, welding, adhesive and other ways to connect;
8.Color coated corrugated board used for environmental protection, recyclable.
1. who are we?
We are based in shandong, China, start from 2015,sell to Western Europe,Southeast Asia,South America,Southern Europe,North America,Oceania,Domestic Market,Africa,Northern Europe,Central America,Mid East,Eastern Europe,South Asia,Eastern Asia. There are total about 100-150 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Galvanized roll/color roll/stainless steel plate/stainless steel roll/stainless steel profile/aluminum roll/aluminum plate/carbon steel plate/carbon steel roll
4. why should you buy from us not from other suppliers?
High cost performance, product quality, in the steel industry has more than 10 years of trading experience, can provide a stable source of goods for enterprises
5. what services can we provide?
Accepted Delivery Terms: EXW FOB CIF CNF DDU DDP;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;
