4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile

Introducing our new product: 4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile. As a factory, we provide top-quality geotextile solutions for all your construction needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Features
  • Product Application
  • Production machine
  • Certifications
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
NO. 28 (SFG 4.5KN)
Certification
ISO9001.ISO14001.ISO45001
Feature
Corrosion Resistant, Oxidation Resistance, Wear-resistant, Anti UV Resistance
Usage
Insulation, Water Filter, Filtration
Material
Pet. PP
Kind
Non-woven
Nominal Breaking Strength Elongation
20%-100%
Equivalent Opening Size O90(O95)
0.07-0.2mm
Thickness Deviation Rate
Plus or Minus 10
Standard
GB/T 17638-2017
Transport Package
Woven Plastic Bag
Specification
2.5KN-40KN
Trademark
Chuangwan
Origin
China
HS Code
5603939000
Production Capacity
50000 Square Meters /Day

Packaging & Delivery

Package Size
500.00cm * 40.00cm * 40.00cm
Package Gross Weight
119.000kg

Product Description


4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile

Product Description

4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile
Fabrics are made through the production processes of non woven production equipment, such as loosening, carding, cluttering (short fibers intertwined with each other), laying nets (standardized entanglement and fixation), and needling.

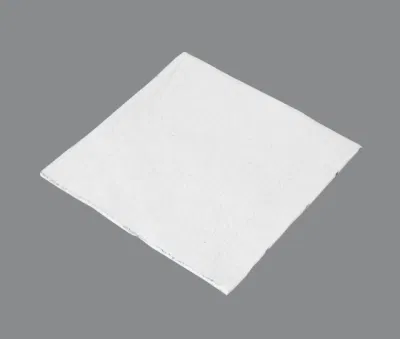

Detailed Photos

4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile
4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile

Product Features


It has excellent performance such as acid and alkali resistance, corrosion resistance, aging resistance, high strength, stable size, and good filtration. The main function is to enhance, isolate, reverse filter, and drain the project.

Technical index
Staple Fiber Non-woven Geotextile:                                                                                                       GB/T 17638-2017
Project Nominal breaking strength,KN/m
3 5 8 10 15 20 25 30 40
Longitudinal and transverse breaking strength,KN/m≥ 3 5 8 10 15 20 25 30 40
Nominal breaking strength corresponds to elongation,% 20-100
CBR brusting strength,KN≥ 0.6 1.0  1.4 1.8 2.5 3.2 4.0  5.5 7.0
Mass deviation rate per unit area,% ±5
Width deviation rate,% -0.5
Thickness deviation rate,% ±10
Equivalent opening size O90(O95), mm 0.07-0.2
Vertical permeability coefficient, cm/s k×(10-1~10-3)  k=1.0~9.9
Longitudinal and transverse tearing strength,KN≥ 0.1 0.15 0.2 0.25 0.4 0.5 0.65 0.8 1.00
Q/CR 549.5-2016
Project Performance indicators
Nominal strength at break,KN/m 2.5 4.5 6.5 9.5 12.5 16 19 25
Longitudinal and transverse tensile break strength,KN/m≥ 2.5 4.5 6.5 9.5 12.5 16 19 25
Elongation at break in longitudinal and transverse direction ,% 25-100
Longitudinal and transverse tearing
strength,KN≥
0.08 0.12 0.16 0.24 0.33 0.42 0.46 0.60
CBR brusting strength,KN≥ 0.3 0.6 0.9 1.5 2.1 2.7 3.2 4.0
Longitudinal and transverse holding
 strength,KN≥
0.18 0.26 0.34 0.50  0.70  0.95 1.10  1.3
Thickness, mm 0.9 1.3 1.7 2.4 3.0  3.6 4.1 5.0
Equivalent opening size O90(O95), mm 0.07-0.2
Vertical permeability coefficient, cm/s 1×(10-1~10-3)
Mass per unit area,g/m2 100 150 200 300 400 500 600 800
Width deviation,% ±0.5

Product Application

It is used in water conservancy, dam protection, isolation of hydraulic structures, highways, railways, tunnels, coastal mudflat, reclamation, environmental protection and other engineering fields.
4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile
4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile
4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile
4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile



Production machine



4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile
4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile
4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile
4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile



Certifications

4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile

Company Profile


4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile
Current affairs information

4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile
On May 28, 2023, local government departments and project leaders of well-known domestic construction engineering companies visited Chuangwan for inspection and guidance. All Chuangwan people warmly welcomed them with a full spirit.


Chairman Feng Xin also gave an important speech at the meeting, stating that the successful trial run of the two production lines cannot be separated from the unremitting efforts of all Chuangwan people and the strong support of the industry, marking a new milestone for the company's production technology and capacity.

4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile


FAQ

4.5kn Construction Material Staple Fiber Soil Non Woven Stabilizer Non-Woven Geotextile

Name Anhui Chuangwan New Materials Co., Ltd.
Add: No.9 Penglin Road, Industrial New Town, Dashu Town, Quanjiao County, Chuzhou City, Anhui Province.
