Product Description
Click "Chat"/"Contact Supplier" to contact supplier

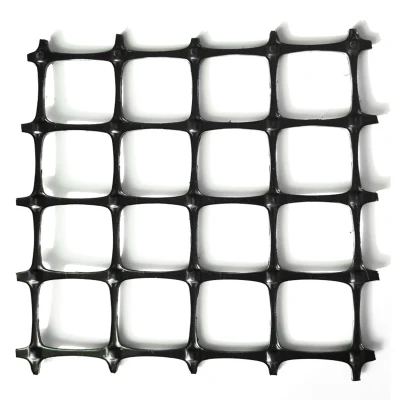

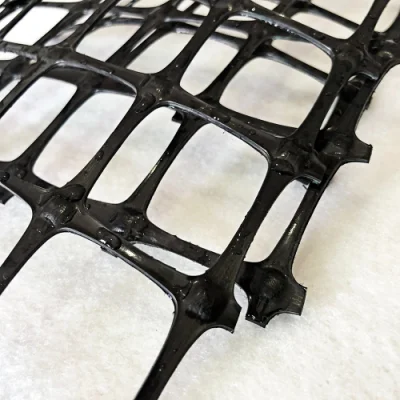

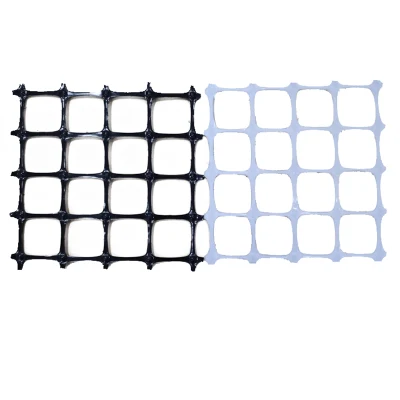

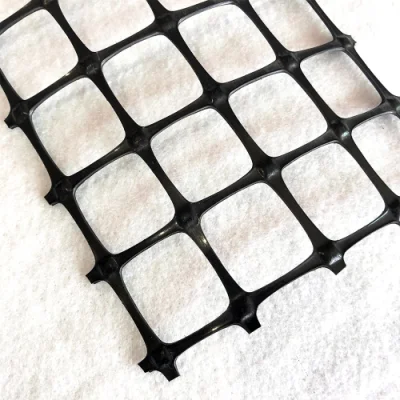

The properties of Biaxial Geogrids, made of Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material. The reinforcing action of PP Biaxial Geogrids lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost. PP Biaxial Geogrids can be used with any kind of mechanical fill material. Two aperture size ranges are available for optimum matching with project fill.
| Item | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG35-35 | TGSG40-40 | TGSG45-45 |
| Longgitudinal Tensile strength ≥ (KN/m) | 15 | 20 | 25 | 30 | 35 | 40 | 45 |
| Transverse Tensile strength ≥ (KN/m) | 15 | 20 | 25 | 30 | 35 | 40 | 45 |
| Longitudunal Elongation ≤ (%) | 15 | ||||||
| Transverse Elongation ≤ (%) | 13 | ||||||
| Longitudinal Tensile strength at 2% strain ≥ (KN/m) | 5 | 7 | 9 | 10.5 | 12 | 14 | 16 |
| Transverse Tensile strength at 2% strain ≥ (KN/m) | 5 | 7 | 9 | 10.5 | 12 | 14 | 16 |
| Longitudinal Tensile strength at 5% strain ≥ (KN/m) | 7 | 14 | 17 | 21 | 24 | 28 | 32 |
| Transverse Tensile strength at 5% strain ≥ (KN/m) | 7 | 14 | 17 | 21 | 24 | 28 | 32 |
| Width ≤ (m) | 6 | ||||||

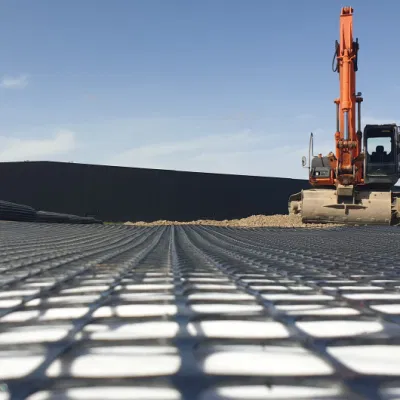

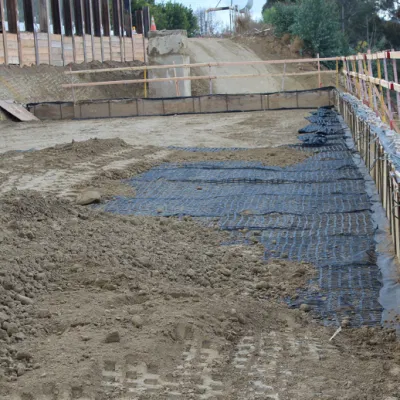

1. Reinforcement and Stabilisation of earth fencing walls, railways, highways and water conservation projects;
2. Reinforcement of road foundations;
3. Retaining walls;
4. Road slope repair and reinforcement;
5. Be used in noise barriers construction.
Shandong Jinruixiang Geoetextilel Material Co.,Ltd. is a high-tech enterprise which integrates development, design, production, consultation, construction, domestic and international trade of new earthwork synthetic material. The company was established since 2000 and located in No. 10 Yuanshan Road, High-Tech Development Zone, Laiwu district, Jinan City, Shandong Province, China.
The company has specialized in producing geotechnical material including HDPE geomembrane, LDPE geomembrane, LLDPE geomembrane, EVA waterproof board, composite geomembrane, polypropylene geotextile, polyester geotextile, woven geotextile more than 15 years. The products are widely used in the field such as the landfill, pond, mine, garden landscape, water conservancy, highway, railway, oil field, biogas, industry and aquaculture etc.
---------------------------------------------------------------- Certificate ----------------------------------------------------------------
Click "Chat"/"Contact Supplier" to contact supplier
Q : Are you a factory or trading company?
A : We are a professional manufacturer that specialized in geomembrane, geotextile, composite geomembrane etc with ISO9001 certificate more than 15 years.
Q : Where is your factory located? How can I visit there?
A : Our facoty is located is No.10 Yuanshan Road High-tech Development Zone, Laiwu District, Jinan City China. You can take the plan to Jinan Yaoqiang International Airport, then we can pick you up.
Q : Could you send the sample before order confirmation?
A : Yes, we'd love to send a free sample to you for an evaluation if you need.
Q : How about the delivery time?
A : General within 3-7 days after received the deposit.
Q : Can you produce the product according to customers' requirements?
A : Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q : Are you the Gold and Assessed supplier on alibaba?
A : Yes. We are the gold and assessed supplier on alibaba and has got the factory report by SGS.
