Basic Info.
Model NO.
pet100/100
Tensile Strength
100kn/M
Roll Width
1m~6m
Roll Length
50m to 200m
Delivery
5days to 15 Days
Sample
Free Sample
Certification
Ce, ISO, SGS
Mesh Size
12.7mm*12.7mm, 25.4mm*25.4mm, 40mm*40mm, 50mm*50mm
Product Name
Polyester Geogrid Pet Geogrid
Keywords
Polyester Geogrid, Pet Geogrid, Geogrid
Transport Package
Rolls
Specification
6m*100m or as your request
Trademark
Wantong
Origin
Taian City, Shandong Province
HS Code
5903109000
Production Capacity
50000square/Day
Product Description
The description of 100Kn/m Driveway Construction Material Polyester Geogrid Fabric for Retaining Walls

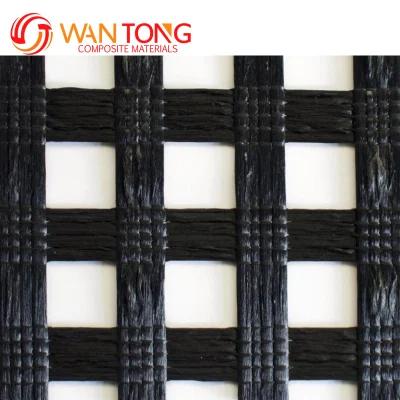

Polyester PET geogrid is woven by high strength polymer yarns. The PET geogrid is created through interlacing, usually at right angles, two or more yarns or filaments. PET geogrid is coated with polymer or nontoxic substance material for uv ,acid and alkali resistance and prevents the bio-decomposition.
The speficication of 100Kn/m Driveway Construction Material Polyester Geogrid Fabric for Retaining Walls
| Property | Test Method | PET 20-20 | PET 30-30 | PET 40-40 | PET 50-50 | PET 60-60 | PET 80-80 | PET 100-100 | PET 110-110 | PET 120-120 | PET 150-150 | PET 400-400 | PET 800-800 | |
| Ultimate tensile strength(KN/m) | MD | EN ISO 10139 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 110 | 120 | 150 | 400 | 800 |
| CD | 20 | 30 | 40 | 50 | 60 | 80 | 100 | 110 | 120 | 150 | 400 | 800 | ||
| Elongation at maximum load(%) | MD | 13 | ||||||||||||
| CD | 13 | |||||||||||||
| Approximate mesh size(mm) | 12.7*12.7 25.4*25.4 40*40 50*50 | |||||||||||||
| Roll width | 1m~6m | |||||||||||||
| Roll length | 50m~200m | |||||||||||||
The advantage of 100Kn/m Driveway Construction Material Polyester Geogrid Fabric for Retaining Walls
Warp-knitted polyester geogrid high tensile strength, low elongation, corrosion resistance, aging resistance, strong bite force with base material, light weight and drainage.
The Usage of 100Kn/m Driveway Construction Material Polyester Geogrid Fabric for Retaining Walls
Applicable to dam and subgrade reinforcement, slope protection, wall reinforcement, permanent foundation support for large airports, parking lots, terminal yards, etc.
1. Increase the bearing capacity of the subgrade and extend the service life of the subgrade.2. Prevent the road surface from collapsing or cracking, and keep the ground beautiful and tidy.
3. Prevent cracks in culverts.
4. Strengthen soil slopes to prevent soil erosion.
5. Stable greening environment supporting grass slope.
6. Can replace metal mesh for underground coal mine false roof network.

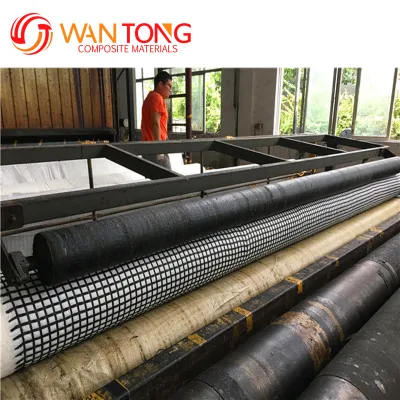

The Workshop and production line of 100Kn/m Driveway Construction Material Polyester Geogrid Fabric for Retaining Walls
The Packaging of 100Kn/m Driveway Construction Material Polyester Geogrid Fabric for Retaining Walls
About US
Tai'an Wantong Composite Material Co., Ltd. established in 2 0 1 5, is a professional manufacturer engaged in the research, development, production, sale and service of geogrid, geotextile, geomembrane, geocell, geosynthetic clay liner, geomat, geonet,drainage board,composite drainage net, geobag,non woven fabric, tree watering bag and fiberglass chopped strand mat.
we have obtained I S O 9 0 0 1 certificate and CE Certificate. Our products are widely applied in many fields, such as road, highway, airway, coal mine, water and soil conservation, water conservancy and basic construction.
Tai'an Wantong Composite Material Co., Ltd. established in 2 0 1 5, is a professional manufacturer engaged in the research, development, production, sale and service of geogrid, geotextile, geomembrane, geocell, geosynthetic clay liner, geomat, geonet,drainage board,composite drainage net, geobag,non woven fabric, tree watering bag and fiberglass chopped strand mat.
we have obtained I S O 9 0 0 1 certificate and CE Certificate. Our products are widely applied in many fields, such as road, highway, airway, coal mine, water and soil conservation, water conservancy and basic construction.
The main product of our company
| Geogrid | PP plastic biaxial geogrid |
| PP plastic uniaxial geogrid | |
| HDPE plastica uniaxial geogrid | |
| Fiberglass geogrid | |
| Polyester geogrid | |
| Steel composite plastic geogrid | |
| Geotextile | Non woven PP geotextile |
| Non woven PET geotextile | |
| Woven geotextile | |
| Fiberglass product | Fiberglass chopped strand mat |
| Fiberglass woven roving | |
| Geomembrane | HDPE geomembrane |
| LDPE geomembrane | |
| Non woven fabric | PP spunbond non woven fabric |
| PET spunbond non woven fabric | |
| Watering bags | 20 gallon PVC watering bags |
| 15 gallon PVC watering bags | |
| 27 gallon PVC watering bags | |
| Geocell | |
| Geonet | |
| 3D Geomat | |
| Grass grid | |
| Geosynthetic clay liners(GCL) | |
| Drainage board | |
| weed control mat (ground cover) |
